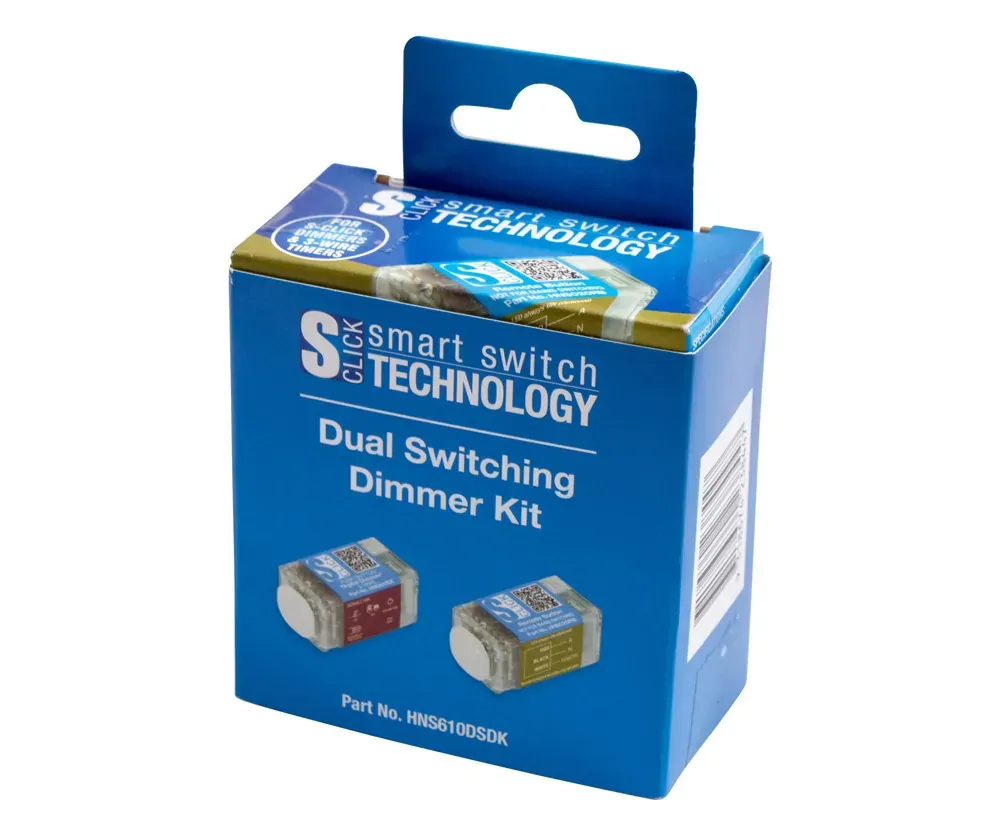

        Learn more by watching our CABAC Dual Switching Dimmer Kit | HNS610DSDK video.

        CABAC | Push Button Digital Dimmer + Remote Switch | 350W 1.5A 230-240V

        The CABAC Dual Switching Dimmer Kit is a push-button digital dimmer and remote switch bundle. Rated 230-240V AC 50Hz, it allows multi-way dimming and ON/OFF control over standard 2-wire wiring. The kit contains one HNS610DT dimmer and one HNS020RB remote button. It is certified to AS/NZS 60669.2.1 and CISPR15, with a maximum load rating of 350W and 1.5A current capacity. The HNS610DSDK suits dimmable LED and incandescent lighting but is not rated for fans or motors.

        Retrofit dimmer projects often have only 2-wire circuits. Standard dimmers need 3-wire interconnection between switches, which is impractical in retrofits. The CABAC S-Click system uses a 2-wire link instead, removing the need for 3-wire runs. This allows faster, less disruptive installation in rentals, renos, and multi-room lighting.

        Electricians and renovators value the CABAC HNS610DSDK for its quick install on existing 2-wire runs, the ability to add remote dimming without rewiring the walls, and the dual functionality that combines dimming and ON/OFF in a single kit. The push-button interface is intuitive: a quick tap powers the lights on at the last set brightness, holding the button dims up or down, and a double tap activates timed dimming that gradually lowers lights over 30 minutes — a feature trades appreciate for client-friendly end-of-day control. The certification to Australian standards and engineered protection against over-current, over-voltage, and over-temperature failures mean sparkies can confident specify the HNS610DSDK across renovation fleets without compatibility surprises.

        Features

        • 2-wire multi-way dimming — allows remote dimming from multiple button locations using only a 2-wire connection, avoiding the need for 3-wire cabling in retrofit scenarios.
        • S-Click push-button interface — tap to toggle on at the last set brightness, hold to dim up or down, and double-tap to activate timed dimming that gradually reduces lighting over 30 minutes.
        • Maximum 350W load rating — supports up to 350W of dimmable LED, halogen, or incandescent load per the HNS610DSDK specifications and certification.
        • Certified to AS/NZS 60669.2.1 and CISPR15 — complies with Australian electrical standards for dimming switches and limits electromagnetic interference on radio frequency communications.
        • Ripple tone rejection and protection systems — rugged design with improved over-current, over-voltage, and over-temperature protection to safeguard against power supply fluctuations and thermal stress.
        • 1.5A maximum current capacity — rated for a maximum instantaneous current of 1.5A on the 230-240V circuit, typical for residential and light commercial retrofit dimming.
        • Not suitable for fans or motors — the HNS610DSDK is for resistive and dimmable loads only; it must not be used with ceiling fans, extractor fans, or 3-phase equipment.
        • Compatible with HPM and Clipsal wall plates — the push-button mechanism fits standard Australian wall plate styles, allowing integration into existing switchboard layouts without plate replacement.
        • Bundle includes dimmer and remote button — the HNS610DSDK ships with one HNS610DT dimmer module and one HNS020RB remote button, ready to wire and install.
        • 1-year domestic and commercial warranty — CABAC offers a 1-year warranty covering manufacturing defects, with coverage available for both residential and commercial installations.
        • Engineered and certified in Australia — the HNS610DSDK is an Australian-designed and certified product, manufactured to local electrical standards and available from Sparky Direct without import delays.
        • Smooth dimming with no flicker — users report smooth transitions at all brightness levels and consistent low-end dimming with no flickering or dead spots.

        Where to use

        • Renovation and retrofit dimming — the HNS610DSDK is ideal for adding dimmer control to existing 2-wire circuits in renovation projects, rental property upgrades, and multi-room retrofits without rewiring the walls.
        • Multi-way lighting control — install the main dimmer in one location and place remote buttons in secondary positions to control the same lights from multiple entry points.
        • Dimmable LED downlight installations — the HNS610DSDK is proven to work with dimmable LED downlights, delivering smooth low-end dimming and flicker-free operation across the full brightness range.
        • Living areas and accent lighting — use the timed dimming feature (double-tap to reduce brightness over 30 minutes) in living rooms, bedrooms, and entertainment zones for gradual evening lighting transitions.
        • Residential and light commercial projects — the 350W maximum load and 1.5A rating suit residential homes, rental properties, hotel room lighting, and small commercial tenant spaces.
        • Existing 2-wire installations — where only 2-wire runs exist between switch locations, the CABAC system eliminates the need to install 3-wire interconnects and allows faster, less intrusive installation than traditional dimmers.

        The CABAC HNS610DSDK is not suitable for controlling ceiling fans, exhaust fans, or any motor-driven equipment, regardless of wattage. Do not install in a circuit intended for fan speed control. This product is designed for stationary dimmable lighting loads only.

        Verified Sparky Direct customer reviews: CABAC Dual Switching Dimmer Kit (HNS610DSDK)

        "Little bit better than Clipsal, for a lot less." — Joe

        "Nice to be able to combine dimmer with remote button. Easy to install and setup." — David

        "Functions well with good range, smooth transition and no flicker." — VC Sydney

        (HNS610DSDK)

        No. The HNS610DSDK is for resistive and dimmable loads only (dimmable LEDs, halogen, incandescent). It must not be used on circuits controlling ceiling fans, exhaust fans, or any motor-driven equipment. Using the HNS610DSDK on a motor load may cause equipment damage or create a safety hazard.

        Yes, the HNS610DSDK is compatible with dimmable LED downlights. The dimmer features ripple tone rejection and patented protection circuits to minimise flicker and deliver smooth transitions across the full brightness range. If your downlights flicker, confirm they are certified as dimmable before use.

        The dimmer uses a 2-wire interconnection between the main unit and the remote button, allowing multi-way control without rewiring. Simply wire the remote button to the same circuit and the dimmer will recognise the control input. This avoids the need for a dedicated 3-wire run between switch locations.

        Timed dimming activates when you double-tap the button while lights are on. The dimmer lowers brightness over 30 minutes and then turns off. If you double-tap when lights are off, brightness increases gradually to full over 30 minutes. This is useful for evening lighting transitions.

        The HNS610DSDK is rated to switch and dim a maximum load of 350W. Exceeding this load may cause the dimmer to overheat, trigger the internal protection circuit, or cause permanent damage to the unit. Always confirm the total wattage of the connected lights before installation.

        The CABAC HNS610DSDK is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.



        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.

        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.

        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand CABAC
        SKU HNS610DSDK
        Barcode # 9318674506591
        Package Weight 0.077kg
        View Datasheet
        TYPE VALUE
        Type Switches
        Rated Current (A) 1.5
        Voltage (V) 230-240
        Wattage (W) 350
        Dimmable Yes
