        Clipsal 157MDF | NEW Deep Fire Rated Wall Box
        $14.24 $12.95 ex. GST

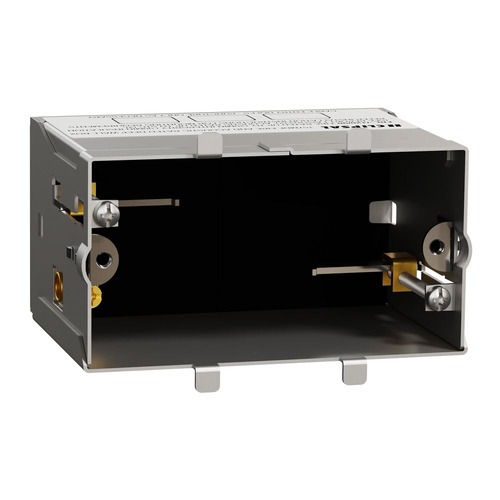

        Clipsal 157MDF | NEW Deep Fire Rated Wall Box

        The 157MDF Clipsal wall box is a deep fire-rated mounting accessory. This product can be used in multiple fire-rated plasterboard applications. The new wall box supports the additional room needed to house Wiser smart switches and USB Mechs.

         It has an acoustic rating of STC50. The materials are recyclable and environmentally friendly.
        This wall box has an earth terminal built in.
        The shape of the product is rectangular and facilitates one 84mm mounting switch or outlet plate.
        This device enables flush mounting.
        The dimensions of this indoor unit are (W) 98mm x (H) 53mm x (D) 70mm. The cross-section of the conductor is a maximum of 4mm².
        The colour of the product is natural and made up of steel material with electro-galvanized surface treatment. It reaches an IP2x degree of protection.
        This device is compliant with the standards AS/NZS 1530.4 and AS/NZS 60670 2021.

        All wall boxes are provided with ample knockouts for easy cable access. In addition, fixing boxes to plasterboard walls is easier than ever before, thanks to clamping arms that quickly slide into place and tighten.

        • Recessed mounts to support a large variety of plate ranges
        • It can be used in multiple fire-rated plasterboard applications
        • Repositioned tabs for a better fit
        • Earthing terminal to earth the wall box (Compliant to AS/NZS
        • With the acoustic rating of STC50
        • Depth of 70mm to support electronic devices
        • Solid surround for easy application of mastic
        • 11mm intumescent material



        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Clipsal in home warranty


        Key Features

        •     1 gang
        •     Sliding nut
        •     Adjustable 84 mm centres. Robust construction
        •     High quality corrosion resistant finish
        •     Ample knockouts
        •     1 and 2 hour fire rating - back to back
        •     Acoustic rated up to STC50
        •     Accessories easy to align. No distortion, even in the toughest conditions
        •     Easy access for cables and conduits
        •     Suitable for virtually any fire rated application
        •     Sound transmission rating for virtually any application
        •     For masonry walls
        •     Horizontal and vertical mounting
        •     Knockouts: 2 x 20, 1 x Type 4 Back, 1 x Type 3 Top, 1 x Type 3 Bottom, 2 x 20 1 x Type 2 LH Side, 2 x 20 1 x Type 2 RH Side

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU 157MDF
        Barcode # 3606482213739
        Shipping Weight 0.2300kg
        Shipping Width 0.053m
        Shipping Height 0.070m
        Shipping Length 0.098m
        Shipping Cubic 0.000363580m3
        TYPE VALUE
        Type Electrical Accessories
        Brand Clipsal by Schneider Electric
        Colour Grey
        Width (mm) 53
        Depth (mm) 70
        Length (mm) 98
        Material Steel
