        Learn more by watching our Clipsal 40E1USBM-VW | Single USB-A 2.0 Charging Mechanism 240V 1.5A video.

        Additional related video.

        Description

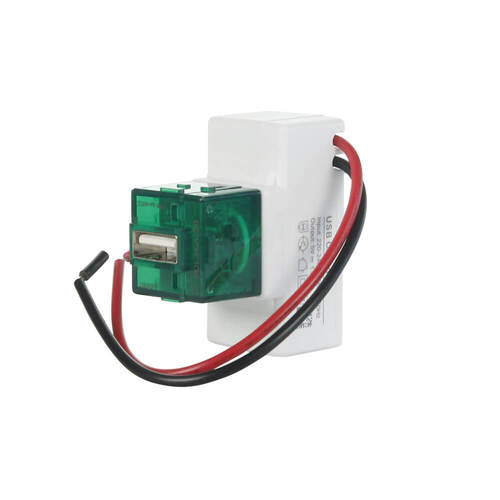

        Clipsal 40E1USBM-VW | Single USB-A 2.0 Charging Mechanism 240V 1.5A

        Description:

        The Clipsal 40E1USBM-VW is a Single USB 2.0 Type A Charging Mechanism designed to offer efficient and reliable charging solutions throughout homes or businesses without needing an adapter. Part of the Clipsal Iconic range, this USB charger combines functionality with a sleek design, making it a valuable addition to any modern home or office setting. This mechanism is compatible with all Clipsal Iconic, Iconic Styl, Iconic Essence and Pro Series.

        Features:

        • USB Type-A Charging: Features a single USB Type-A 1.5A charger compatible with a wide range of devices.
        • Innovative Design: Includes a patented rotatable head for easy reorientation and patented current management technology to prevent overcharging.
        • Compatibility: Suitable for use with Clipsal Iconic, Iconic Styl, Iconic Essence, and Pro Series.
        • Voltage Specifications: Operates on 240V a.c. 50Hz, ensuring a reliable power supply.
        • Integrated Connection: Offers 1 USB 2.0 type A 5 V DC output with a maximum load current of 1.5A.
        • Robust Build: Glossy white finish, flush mounting, and clipped fixing mode add to its durability and aesthetic appeal.
        • Optimized for Safety: Operates within an ambient air temperature range of 0-45 °C and relative humidity of 5-90%, ensuring safe usage.
        • Compact Dimensions: Measuring 48mm in height, 43mm in width, and 43mm in depth, with an embedding depth of 38mm.

        FAQ:

        Q: Is the Clipsal 40E1USBM-VW suitable for all USB devices?
        A: Yes, it is equipped with a standard USB type-A port, making it compatible with a wide range of USB-powered devices.

        Q: Can this USB charger be easily installed in various settings?
        A: Absolutely, its design is suitable for Clipsal Iconic, Iconic Styl, Iconic Essence, and Pro Series, allowing for versatile installation in different environments.

        (40E1USBM-VW)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Clipsal in home warranty

        Features
        Specification Detail
        Product or Component Type USB Charger
        Rated Operational Voltage 220/240 V AC 50 Hz
        Integrated Connection Type 1 USB 2.0 Type A 5 V DC, Maximum Load Current: 1.5A
        Maximum Load Current with 2 Outputs Used Simultaneously 1.5 A
        Device Mounting Flush
        Device Presentation Mechanism
        Colour Tint White
        Surface Finish Glossy
        Fixing Mode Clipped
        Ambient Air Temperature for Operation 0…45 °C
        Ambient Air Temperature for Storage 0…60 °C
        Relative Humidity 5…90 %
        Number of Terminals 1 with Cable End
        Height 48 mm
        Width 43 mm
        Depth 43 mm
        Embedding Depth 38 mm
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU 40E1USBM-VW
        Barcode # 9311554788292
        Package Weight 0.070kg
        Package Width 0.070m
        Package Height 0.090m
        Package Length 0.040m
        TYPE VALUE
        Type USB Type A
        Brand Clipsal by Schneider Electric
        Range Clipsal Iconic
        Colour White
