        Clipsal MX9B113N | MAX9 MAXBAR 1P+N Comb Busbar 13 Module with N Block | 100A Top Feed

        The Clipsal MX9B113N is a MAX9 MAXBAR top feed comb busbar rated 100A, configured 1P+N across 13 modules. It distributes active and neutral from the main switch to a row of compatible Clipsal MAX9 RCBOs and AFDDs. The MX9B113N is the variant supplied with a neutral terminal block, suited to a row fed from its own main switch. It ships with four tooth covers and is built to AS/NZS 61439-3.

        Wiring a consumer unit of individual RCBOs by hand means cutting, stripping, and terminating separate active and neutral tails at every device. That point-to-point work consumes labour on site and produces a congested board that complicates later fault finding. The MX9B113N eliminates those tails with a top feed comb busbar that distributes active and neutral along the row from the main switch. The incoming neutral lands on the supplied neutral terminal block.

        For the contractor, the MAXBAR system converts board fit-off into a faster, cleaner installation. The busbar collects the active feed once and energises every protective device, so no sub-circuit tails run between modules. Clipsal rates MAXBAR at up to 15 times faster than conventional cable feeding, and the comb is cuttable to length to match shorter rows. A clean board reads clearly at the next service call and reflects the standard of the install.

        Features

        • 1P+N top feed design — distributes active and neutral along a single row of MAX9 devices from the main switch.
        • 13 module comb — the MX9B113N spans 13 modules and provides up to 11 outgoing 1P+N ways from a 2 way incomer.
        • 100A at 230V AC — the MX9B113N carries up to 100A total across the row, suiting standard single-phase domestic boards.
        • Neutral terminal block included — the MX9B113N pack includes a neutral terminal block for landing neutrals on a main-switch row.
        • No sub-circuit tails — the comb feeds each RCBO or AFDD directly, removing the cable loops between devices.
        • MAX9 RCBO and AFDD compatible — feeds compatible Clipsal MAX9 RCBOs and AFDDs along the row without separate cable connections.
        • Horizontal and cuttable — the comb mounts across the row and trims to length for boards shorter than 13 modules.
        • Up to 15 times faster — Clipsal rates MAXBAR feeding at up to 15 times quicker than running cable to each device.
        • Insulated tooth covers — the four supplied covers shroud unused teeth and exposed conductor along the comb.
        • White finish — moulded in white (RAL 9003) to sit within the MAX9 enclosure.
        • AS/NZS 61439-3 — manufactured to AS/NZS 61439-3 and AS/NZS 3000 for low-voltage switchboard assemblies.
        • MAX9 system only — designed for the Clipsal MAX9 board system, not for feeding other brands of DIN mounted device.

        Where to use

        • New residential boards — populate a single-phase MAX9 row with RCBOs and feed them from the MX9B113N in one pass.
        • Switchboard upgrades — replace a tangle of sub-circuit tails with one comb when retrofitting an older board to MAX9.
        • RCBO-per-circuit boards — suits installs running individual RCBO protection on every final sub-circuit.
        • Main-switch rows — the MX9B113N ships with the neutral terminal block for a row fed from its own main switch.
        • Fast retrofit fit-off — cut the comb to length and feed a part-filled row without running tails between devices.
        • Single-phase domestic supply — built for 1P+N boards drawing within the 100A busbar rating.

        The MX9B113N is a 1P+N busbar and is not suited to three-phase rows. It is built for the Clipsal MAX9 system and should not feed other brands of DIN mounted device. Total connected load across the row must stay within the 100A rating.

        (MX9B113N)

        The MX9B113N includes a neutral terminal block and connectors, so it suits a row fed from a main switch, such as a single-row board or the main-incomer row of a multi-row board. The MX9B113 has no neutral terminal block and suits rows without a main switch. Both are 1P+N, 13 module, 100A combs.

        The MX9B113N feeds Clipsal MAX9 RCBOs and AFDDs along a single-phase row. It picks up active and neutral from the main switch and energises each device directly, with no cable tails run between modules. It provides up to 11 outgoing 1P+N ways from a 2 way incomer.

        Installation must be carried out by a licensed electrician. The comb sits as a top feed across the DIN row and clips into the device terminals, then connections are tightened to each device's specified torque. Cut the comb to length first for rows shorter than 13 modules.

        The MX9B113N is built to AS/NZS 61439-3 and AS/NZS 3000. It carries a rated operational voltage of 230V AC, a rated insulation voltage of 500V, and a 4kV impulse withstand rating. Rated operational current is 100A across the row.

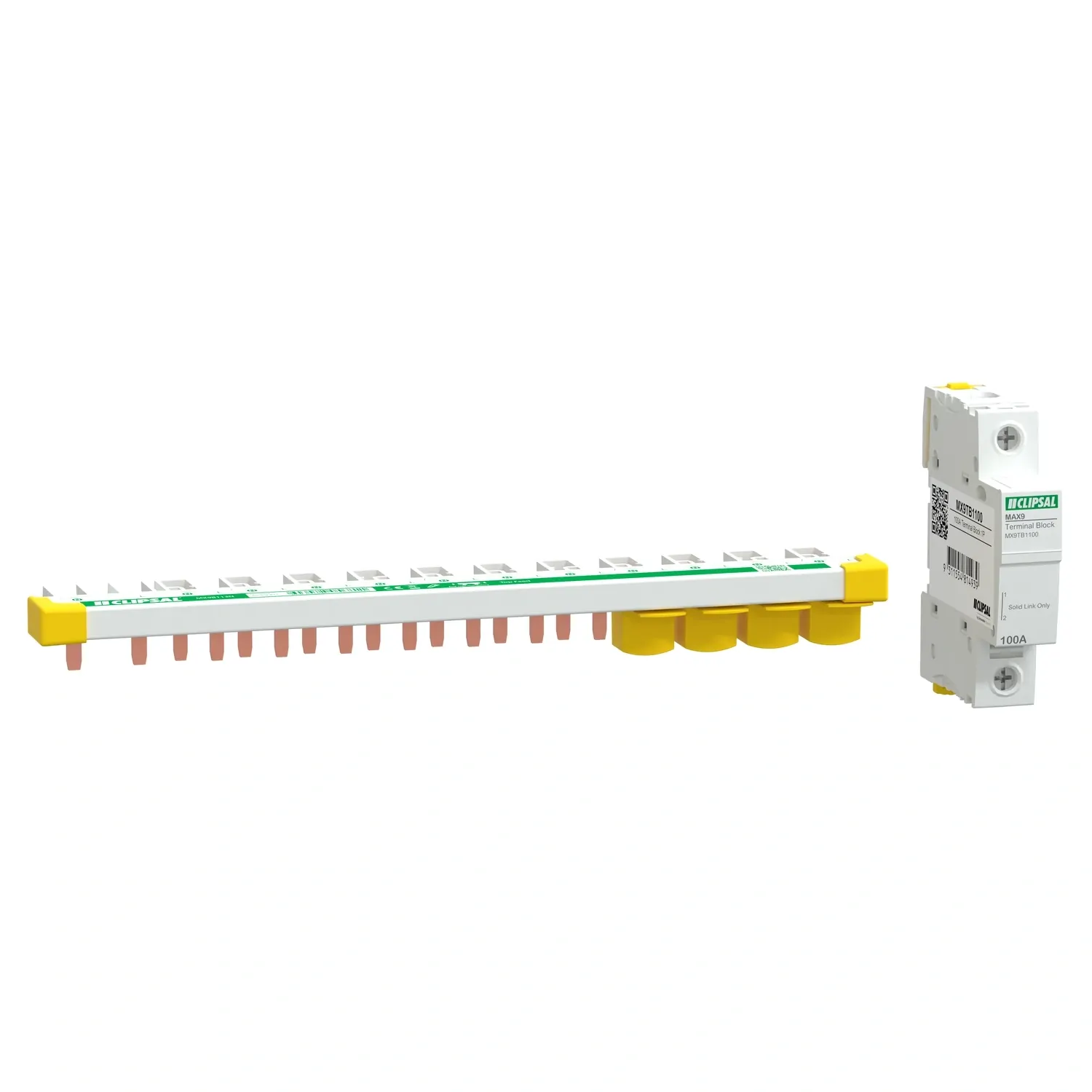

        The MX9B113N kit includes the comb busbar, a neutral terminal block, connectors, tooth covers, and end caps. The neutral terminal block distinguishes the N kit and lands the neutral on a row fed from a main switch. Tooth covers insulate unused teeth for later upgrades.

        The MX9B113N is a 1P+N busbar and is not suitable for three-phase rows, which use a 3P+N comb instead. It is built for the Clipsal MAX9 system and should not feed other brands of DIN mounted device. Keep total connected load within the 100A rating.

        The Clipsal MX9B113N is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.


        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.


        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 7 Year
        Commercial Use: 7 Year
        Warranty Method: Clipsal in home warranty

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU MX9B113N
        Model # MX9B113N
        Package Weight 0.225kg
        TYPE VALUE
        Type Circuit Protection
        Brand Clipsal by Schneider Electric
        Range MAX9
        Rated Current (A) 100
        Voltage (V) 230
        Number of Poles 1P+N
        Number of Modules 13
