    Description

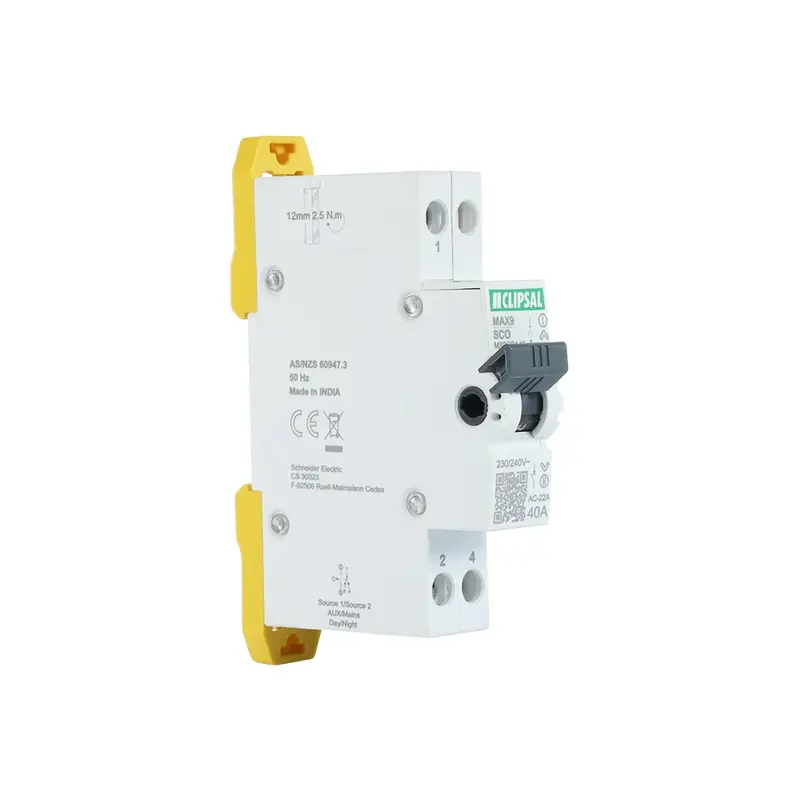

    CLIPSAL MX9CS140 | Changeover Switch 1 Pole 40 Amp | 240V

    The MAX9 Changeover Switches provide the perfect solution to switch manually between two power supplies or circuits.

    What is a Changeover Switch?

    A change-over switch shifts a house or business's electricity supply from the main grid to a generator during a power outage. It connects to the main power grid, the generator, and the house wiring. When you flip the switch, all the power in that circuit shifts to either the grid or the generator. This prevents the power from flowing back and mixing between the grid and the generator.

    Changeover Switch Specifications

    • Rated Current: 40 A
    • Voltage: 240V
    • Pole: 1
    • Standards: Conforms to AS/NZS 60947.3
    • Positions: 3 (I-0-II) with Center OFF position
    • Utilization Category: AC-22 A
    • Frequency: 50/60 Hz
    • Connection Type: Screw
    • Mounting: DIN rail mount for up to 4 isolators
    • Applications:
      • Night, off, and day switching of luminaires where daylight supplements internal lighting.
      • Incoming and outgoing screw-down terminals for copper conductors up to 16 sq mm.
      • Auto, off, and manual switching of machines.
      • Auxiliary, off, and mains switching of small standby generators.

    (MX9CS140)

    Warranty

    Warranty starts from Invoice Date

    Domestic Use: 1 Year
    Commercial Use: 1 Year
    Warranty Method: Clipsal in home warranty

    Specifications

    These specifications and characteristics outline physical, mechanical, electrical details.

    Brand Clipsal by Schneider Electric
    SKU MX9CS140
    Barcode # 3606485810836
    Package Weight 0.085kg
    Package Width 0.075m
    Package Height 0.020m
    Package Length 0.100m
    TYPE VALUE
    Type Circuit Protection
    Brand Clipsal by Schneider Electric
    Range Clipsal - Max9
    Rated Current (A) 40
    Height (mm) 85
    Width (mm) 17.5
    Depth (mm) 72
    Mounting Din Rail
    Voltage (V) 240
    Switch Type Changeover Switch
    Number of Poles 1
    IP Rating IP20 ( IP40 Enclosed )
