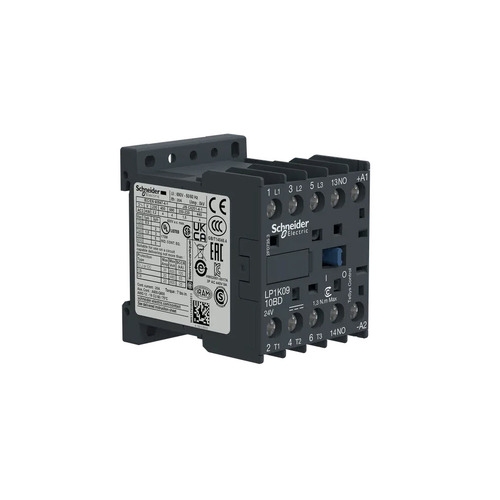

        Schneider Electric LP1K0910BD | TeSys K Contactor 3P 9A 690V

        Description:

        The Schneider Electric LP1K0910BD is a TeSys K Contactor designed to offer electricians a reliable and efficient solution for motor control and resistive load applications. With a compact width of 45mm, it fits easily in tight spaces and can be mounted on a DIN rail or screwed in place. This 3-pole (3NO) contactor supports up to 9A/690V AC-3 (4kW@400V) for motor control and up to 20A/690V AC-1 for non-inductive loads.

        It features a 24V DC control circuit, 1NO built-in auxiliary contact, and screw clamp terminals for secure connections. The device ensures operational reliability with a maximum rate of 600 cycles/hour and can work in environments up to 50°C, providing durability and efficiency in standard applications.

        Features:

        • Compact Design: 45mm width, suitable for DIN-rail mounting or screw fixing.
        • Versatile Applications: Ideal for motor control and resistive loads, with a 9A/440V AC AC-3 capacity.
        • Reliable Performance: Built with a 24V DC coil and 1NO auxiliary contact.
        • Durability: Designed to withstand up to 600 cycles/hour and temperatures up to 50°C.
        • Safety Features: Includes 4KV surge protection and meets international safety standards.

        FAQ:

        Q: What makes the Schneider Electric LP1K0910BD suitable for motor control applications?
        A: Its 3-pole configuration and capacity to handle up to 9A/690V makes it ideal for controlling motors efficiently.

        Q: Can the LP1K0910BD be used in various environmental conditions?
        A: Yes, it's designed to operate reliably in temperatures up to 50°C and has a sturdy build suitable for different settings.

        Q: How is the LP1K0910BD installed and connected?
        A: It can be easily installed on a DIN rail or through screw fixing, with screw clamp terminals for secure electrical connections.

        (LP1K0910BD)

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.


        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.


        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from the Invoice Date

        Domestic Use: 18 Months
        Commercial Use: 18 Months
        Warranty Method: Return to Sparky Direct

        Specification Details
        Range TeSys
        Product or component type Contactor
        Device short name LP1K
        Contactor application Motor control, Resistive load
        Utilisation category AC-3, AC-3e, AC-1, AC-4
        Poles description 3P (3 NO)
        [Ue] rated operational voltage Power circuit: <= 690 V AC <= 400 Hz
        Signalling circuit: <= 690 V AC <= 400 Hz
        [Ie] rated operational current 9 A AC-3/AC-3e at <= 440 V, 20 A AC-1 at <= 690 V for power circuit
        Control circuit type DC standard
        [Uc] control circuit voltage 24 V DC
        Motor power kW Various ratings from 2.2 kW to 4 kW across different voltages and categories
        Auxiliary contact composition 1 NO
        [Uimp] rated impulse withstand voltage 8 kV
        Overvoltage category III
        Conventional free air thermal current 20 A (at 60 °C) for power circuit
        10 A (at 50 °C) for signalling circuit
        Irms rated making capacity 110 A AC for power circuit conforming to IEC 60947
        110 A AC for signalling circuit conforming to IEC 60947
        Rated breaking capacity 110 A at 220...230 V conforming to IEC 60947
        110 A at 380...400 V conforming to IEC 60947
        110 A at 415 V conforming to IEC 60947
        110 A at 440 V conforming to IEC 60947
        80 A at 500 V conforming to IEC 60947
        70 A at 660...690 V conforming to IEC 60947
        [Icw] rated short-time withstand current 90 A 50 °C - 1 s for power circuit
        85 A 50 °C - 5 s for power circuit
        80 A 50 °C - 10 s for power circuit
        60 A 50 °C - 30 s for power circuit
        45 A 50 °C - 1 min for power circuit
        40 A 50 °C - 3 min for power circuit
        20 A 50 °C - >= 15 min for power circuit
        80 A - 1 s for signalling circuit
        90 A - 500 ms for signalling circuit
        110 A - 100 ms for signalling circuit
        Associated fuse rating 25 A gG at <= 440 V for power circuit
        25 A aM for power circuit
        10 A gG for signalling circuit conforming to IEC 60947
        10 A gG for signalling circuit conforming to VDE 0660
        Average impedance 3 mOhm - Ith 20 A 50 Hz for power circuit
        [Ui] rated insulation voltage Power circuit: 600 V conforming to UL 508
        Power circuit: 690 V conforming to IEC 60947-4-1
        Signalling circuit: 690 V conforming to IEC 60947-4-1
        Signalling circuit: 690 V conforming to IEC 60947-5-1
        Signalling circuit: 600 V conforming to UL 508
        Power circuit: 600 V conforming to CSA C22.2 No 14
        Signalling circuit: 600 V conforming to CSA C22.2 No 14
        Insulation resistance > 10 MOhm for signalling circuit
        Inrush power in W 3 W (at 20 °C)
        Hold-in power consumption in W 3 W at 20 °C
        Heat dissipation 1.3 W
        Control circuit voltage limits Operational: 0.8...1.15 Uc (at <50 °C)
        Drop-out: >= 0.10 Uc (at <50 °C)
        Connections - terminals Screw clamp terminals 1 cable(s) 1.5…4 mm²solid
        Screw clamp terminals 1 cable(s) 0.75…4 mm²flexible without cable end
        Screw clamp terminals 1 cable(s) 0.34…2.5 mm²flexible with cable end
        Screw clamp terminals 2 cable(s) 1.5…4 mm²solid
        Screw clamp terminals 2 cable(s) 0.75…4 mm²flexible without cable end
        Screw clamp terminals 2 cable(s) 0.34…1.5 mm²flexible with cable end
        Power circuit: screw clamp terminals 2 cable(s) 1.5 mm²flexible with cable end
        Maximum operating rate 3600 cyc/h
        Auxiliary contacts type Type instantaneous 1 NO
        Minimum switching current 5 mA for signalling circuit
        Minimum switching voltage 17 V for signalling circuit
        Mounting support Rail
        Plate
        Tightening torque 0.8…1.3 N.m - on screw clamp terminals Philips No 2
        0.8…1.3 N.m - on screw clamp terminals flat Ø 6 mm
        0.8…1.3 N.m - on screw clamp terminals pozidriv No 2
        Operating time 30...40 ms coil energisation and NO closing
        10 ms coil de-energisation and NO opening
        Safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
        B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
        Mechanical durability 10 Mcycles
        Electrical durability 1.3 Mcycles 9 A AC-3 at Ue <= 440 V
        1.3 Mcycles 9 A AC-3e at Ue <= 440 V
        0.16 Mcycles 20 A AC-1 at Ue <= 690 V
        0.02 Mcycles 54 A AC-4 at Ue <= 440 V
        IP degree of protection IP2X
        Ambient air temperature for operation -25…50 °C
        Ambient air temperature for storage -50…80 °C

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU LP1K0910BD
        Model # LP1K0910BD
        Barcode # 3389110363241
        Package Weight 0.220kg
        Package Width 0.065m
        Package Height 0.065m
        Package Length 0.050m
        TYPE VALUE
        Type Contactor
