        ANDELI CJX2-95-U7 | AC Contactor 44Amp (AC4) - 95Amp (AC3) | 240V coil
        $93.50 $85.00 ex. GST
        Video

        Learn more by watching our ANDELI CJX2-95-U7 | AC Contactor 44Amp (AC4) - 95Amp (AC3) | 240V coil video.

        Description

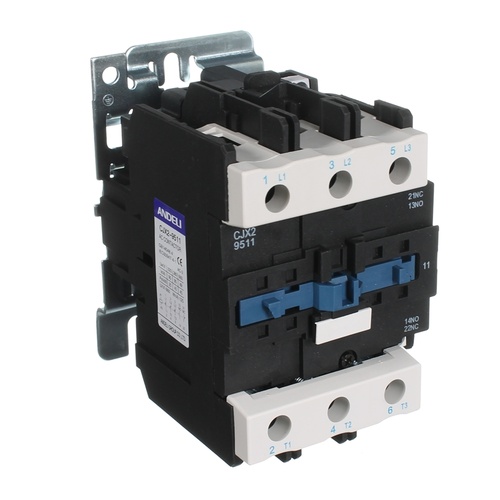

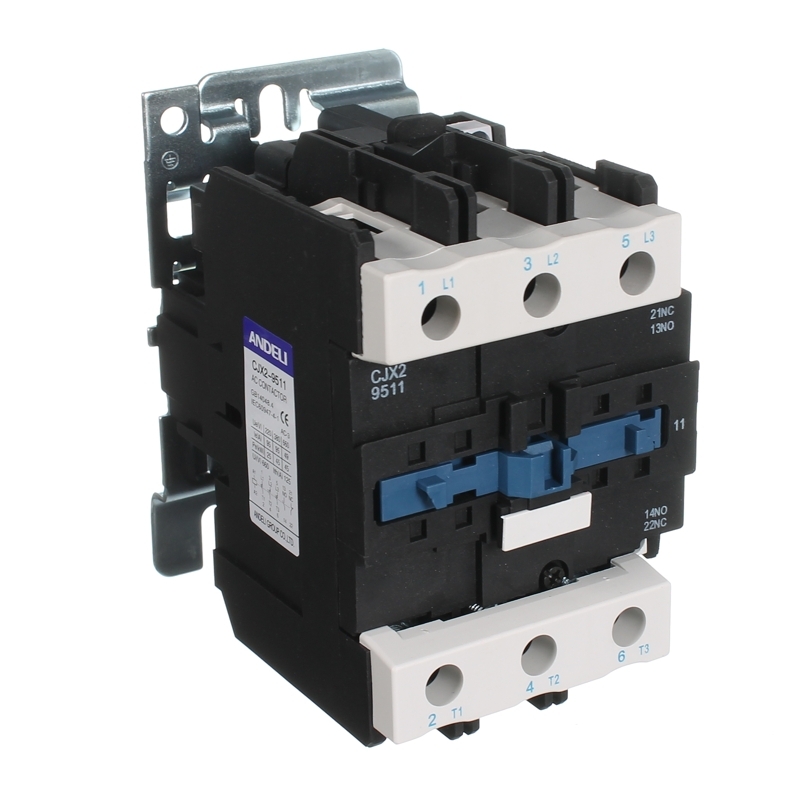

        ANDELI CJX2-95-U7 | AC Contactor 44Amp (AC4) - 95Amp (AC3) | 240V coil

        Description:

        The ANDELI CJX2-95-U7 AC Contactor is designed for precision and durability, making it perfect for electricians who need dependable AC motor control. It handles voltages up to 690V AC and is suitable for 50Hz or 60Hz frequencies. This contactor manages currents up to 95A in AC-3 applications and 44A in AC-4 scenarios. With three poles and both normally open and normally closed contacts, it offers flexibility for different electrical circuit setups.

        Features:

        • High Capacity: Supports AC-3 applications up to 95A and AC-4 up to 44A.
        • Versatile Voltage Range: Usable up to 690V AC, accommodating a wide range of electrical tasks.
        • Multi-Functional: Integrates with auxiliary contact blocks, timers, and interlocking devices for diverse applications.
        • Robust Design: Features three poles with NO and NC contacts, suitable for rigorous use.

        FAQ:

        Q: What are the power ratings for the ANDELI CJX2-95-U7?
        A: At 220/230V, it handles 25kW; at 380/400/415V, it handles 45kW; and at 500/660/690V, it handles 55kW.

        Q: Can this contactor be used with a thermal relay?
        A: Yes, it can be combined with a thermal relay to form an electromagnetic starter, enhancing its functionality.

        Q: Is this contactor suitable for frequent starting and stopping of motors?
        A: Absolutely, it is designed for making, breaking, frequently starting, and controlling AC motors efficiently.

        (CJX2-95-U7)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features
        Specification Details
        Rated working current (A) AC3: 95,
        AC4: 44
        Standard power ratings of 3-phase motors 50/60Hz in category AC-3 (kW) 220/230V: 25 kW,
        380/400/415V: 45 kW, 500/660/690V: 55 kW
        Rated heat current (A) 125
        Electrical life AC3: 600,000 operations,
        AC4: 100,000 operations
        Mechanical life 6,000,000 operations
        Number of the contacts 3P+NC+NO
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Andeli
        SKU CJX2-95-U7
        Barcode # 9321592172274
        Shipping Weight 1.4140kg
        Shipping Width 0.130m
        Shipping Height 0.090m
        Shipping Length 0.130m
        Shipping Cubic 0.001521000m3
        TYPE VALUE
        Type Contactor
        Brand Andeli
        Rated Current (A) AC-4 44A
        Rated Current (A) AC-3 95A
        Kilowatt Rating (kW) 45kW at 415V 50/60Hz
        Contact Configuration 3P+NO+NC
