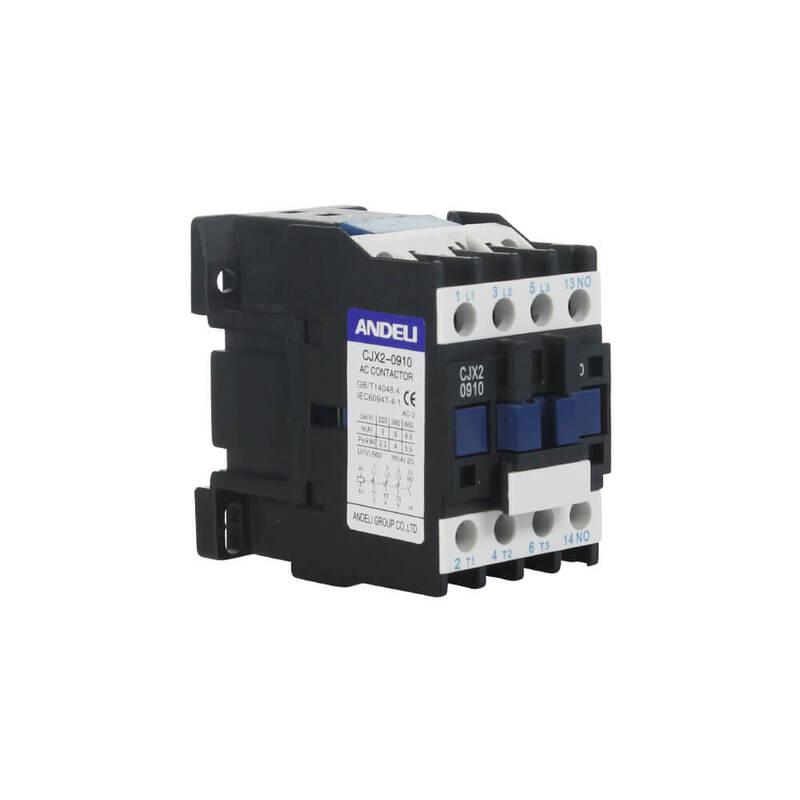

        ANDELI CJX2-09-U7 Contactor | 3.5Amp (AC4) - 9Amp (AC2) | 240V coil

        Description:

        The ANDELI CJX2-09-U7 Contactor is perfect for electricians who need a dependable motor control solution. It's designed to handle 9Amp in AC-3 mode and 3.5Amp in AC-4 mode, and operates with a 240V coil. This contactor can manage circuits up to 660/690V AC at 50/60Hz.

        It's excellent for applications that require frequent starting and stopping of motors, supporting power levels from 2.2 kW at 220/230V up to 5.5 kW at higher voltages. The CJX2-09-U7 can also be used with additional devices like contact blocks and thermal relays, making it a versatile part of a complete motor control system.

        Features:

        • Current and Voltage Ratings: Handles up to 9A in AC-3 and 3.5A in AC-4 with a 240V coil.
        • Adaptable Power Ratings: Operates efficiently across a range of voltages and power settings.
        • Compatibility: Fits seamlessly into systems requiring frequent motor control.
        • Expandable: Can be paired with additional control and protection devices.

        FAQ:

        Q: What are the primary uses of the ANDELI CJX2-09-U7 Contactor?
        A: It is primarily used for starting, stopping, and controlling AC motors efficiently in industrial settings.

        Q: What type of additional devices can be used with this contactor?
        A: It can be integrated with auxiliary contact blocks, timer delays, and thermal relays for enhanced functionality.

        Q: How does this contactor handle different power levels?
        A: It is capable of controlling motors with power ratings that vary based on the supply voltage, supporting efficient operations across a spectrum of industrial applications.

        (CJX2-09-U7)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features
        Specification Details
        Rated working current (A) AC3: 9
        AC4: 3.5
        Standard power ratings of 3-phase motors
        50/60Hz in category AC-3 (kW)
        220/230V: 2.2
        380/400V: 4
        415V: 4
        500V: 5.5
        660/690V: 5.5
        Rated heat current (A) 20
        Electrical life AC3: 100 x 104
        AC4: 20 x 104
        Mechanical life (104) 1000
        Number of contacts 3P+NO
        3P+NC
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Andeli
        SKU CJX2-09-U7
        Barcode # 9321592218729
        Package Weight 0.333kg
        Package Width 0.080m
        Package Height 0.050m
        Package Length 0.090m
        TYPE VALUE
        Type Contactor
        Brand Andeli
        Rated Current (A) AC-3 9A
        Rated Current (A) AC-4 3.5A
        Kilowatt Rating (kW) 4kW at 415V 50/60Hz
        Contact Configuration 3P+NO and 3P+NC
