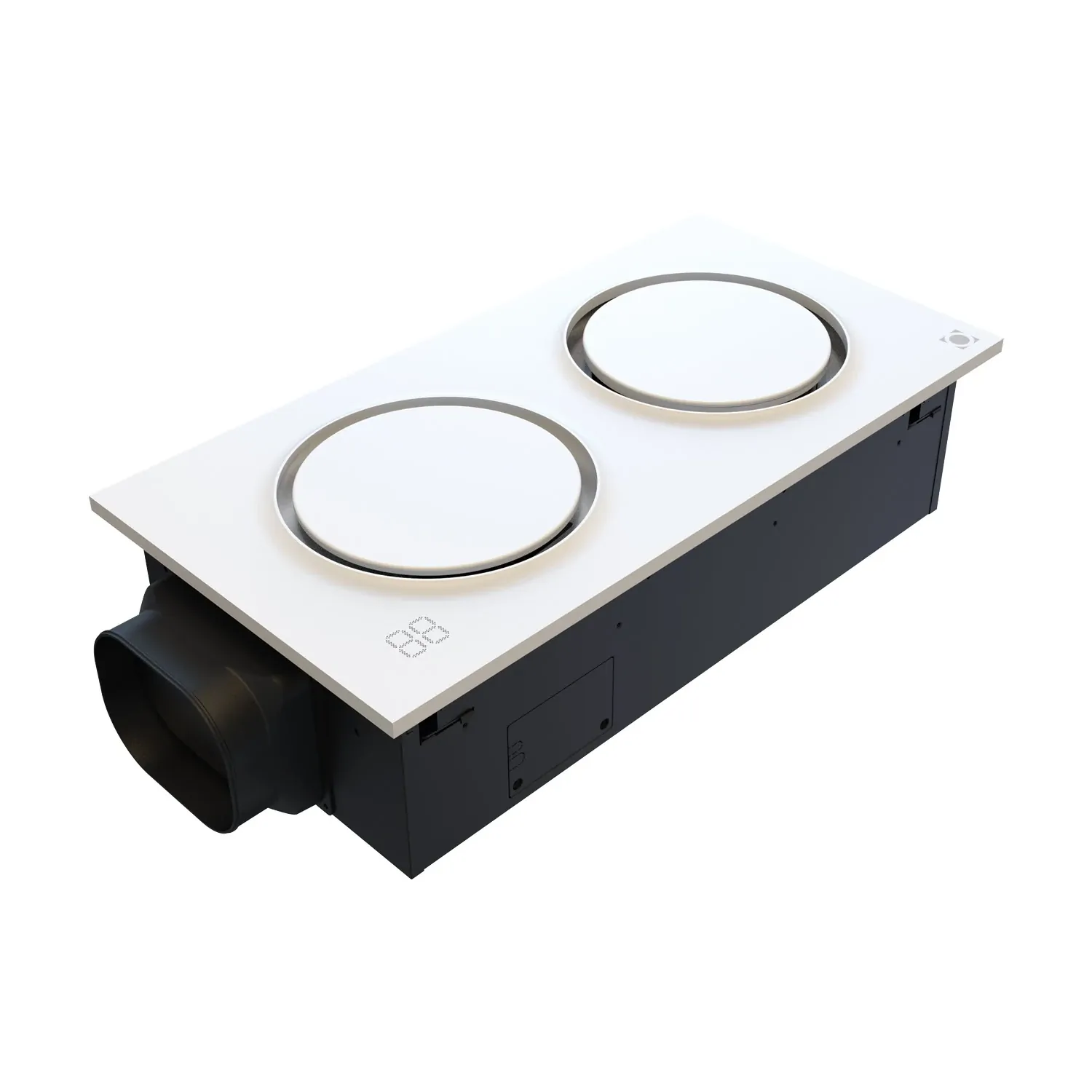

Domus | Infinity 6-in-1 Bathroom Heater, Exhaust Fan and Light 2150W | IPX2 White
The Domus 56010 is a ceiling-recessed 6-in-1 bathroom unit rated 240V AC, combining heating, exhaust, circulation, dry heat, ventilation and light. The 56010 pairs a 2150W PTC heating element with a 25W tri-colour LED light and a 45W DC fan motor. Total draw is 2250W, extraction reaches 500m3/h, and the unit carries an IPX2 rating. The Infinity model ships with a digital wall controller, a 3 metre flexible duct and an exterior grille.
A bathroom without mechanical extraction holds humidity long after the shower stops. That moisture works into the ceiling cavity, the paintwork and the grout. The 56010 handles both halves of the problem at once. A 2150W PTC heating element raises room temperature, while 500m3/h of extraction clears saturated air through a 150mm duct. Renovators replacing an older three-in-one usually find the ceiling already cut and ducted, so the remaining job is resizing the opening to 595 x 280mm.
For an electrical contractor, the 56010 turns three separate installations into a single fit-off. Heating, extraction and lighting sit behind one 615 x 315mm fascia over one ceiling opening. Every operating mode runs from a digital wall controller, which cuts the mechanism count on the wall and keeps the plasterer's patching to one opening. The five year warranty and the two-hour automatic shut-off make the handover simpler at the end of a domestic renovation.
Features
- 6-in-1 operation — heater, exhaust fan, circulation fan, dry heat, vent and light all run from one unit and one ceiling opening.
- 2150W PTC heating element — self-regulating ceramic element lifts room temperature quickly without an exposed radiant lamp.
- 500m3/h air extraction — clears shower steam through a 150mm duct, cutting the condensation that settles on ceilings and mirrors.
- 45W DC motor — one direct-current motor drives every fan mode and holds the noise level at or below 48dB.
- 25W tri-colour LED light — selected at installation between 3000K, 4000K and 5000K, with a colour rendering index of 80 or better.
- Lumen output to 1850lm — 1500lm at 3000K, 1850lm at 4000K and 1750lm at 5000K.
- 8-switch digital wall controller — mode indicator colours, an ambient temperature display and an all-off button on one plate.
- Two-hour auto shut-off — the 56010 switches itself off after two continuous hours, and any controller switch resets the timer within that window.
- Heat Breeze operation — low-level extraction runs alongside the heater, so warm air moves through the room instead of stacking at the ceiling.
- Slimline twin-circle fascia — a 615 x 315mm frame over a 595 x 280mm cutout, with the body sitting 163mm into the cavity.
- IPX2 rating only — the 56010 is rated against dripping water at a tilt, not against spray, jets or immersion.
- Five year warranty — Domus covers the 56010 for five years domestic and five years commercial from the invoice date.
Where to use
- Bathroom renovations — the 56010 goes in where an older three-in-one unit comes out and the ceiling is already ducted.
- New residential builds — specified at frame stage so the 595 x 280mm cutout and 150mm duct run are set before sheeting.
- Main bathrooms and ensuites — 500m3/h extraction suits enclosed rooms where shower steam has nowhere else to go.
- Cold-climate homes — the 2150W element and circulation mode suit southern bathrooms that sit cold through winter mornings.
- Laundries and powder rooms — the vent and light modes handle rooms that need airflow more than they need heat.
- Rental and investment properties — the two-hour shut-off limits the running cost of a heater a tenant leaves on.
- Short-stay accommodation — the all-off button lets a guest shut every mode down with one press on the controller.
The 56010 carries an IPX2 rating only, which covers dripping water and not spray, jets or immersion. It must not be installed directly above a shower or bath, in an unroofed outdoor location, or anywhere water arrives under pressure. The unit also needs at least 200mm of clearance above the plasterboard, so it will not fit a ceiling with a shallower cavity.
