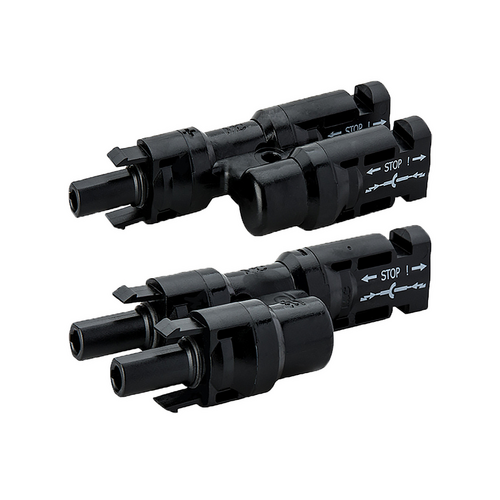

        Elcon Cables BRANCHPR | Genuine MC4 Branch Pair Connectors

        Description:

        The Multi-Contact PV branch connectors, also known as MC4 connectors, are efficient and cost-effective devices used for connecting two parallel strings of solar panels. These connectors are rated IP67, ensuring a safe and reliable connection. By using MC4 connectors, the need to run two separate cables over a long distance from the far end of the PV array is eliminated, saving both time and money. The second generation of MC4 connectors, manufactured by Multi-Contact (currently Stäubli Electrical Connectors), has gained worldwide acceptance and popularity. These connectors are designed to accommodate 3-6mm2 solar cables and utilize the proven MC Multilam technology, offering high long-term stability.

        To comply with Australian Standards AS5033, it is essential to use genuine MC4 socket connectors, as stated in Clause 4.3.7, which requires connectors to be matched only with connectors of the same type from the same manufacturer. MC4 connectors are single-contact electrical connectors specifically designed for solar panel connections. The acronym "MC" stands for Multi-Contact, the manufacturer, and the "4" represents the 4-mm diameter contact pin. MC4 connectors enable easy construction of panel strings by manually pushing the connectors together. However, a tool is necessary to disconnect them to prevent accidental disconnection when the cables are pulled.

        Since around 2011, MC4 connectors and compatible products have become universally used in the solar market, equipping the majority of solar panels manufactured. The MC4 system comprises both plug and socket components. Interestingly, the plugs and sockets are housed in plastic shells that appear to have the opposite gender. The plug, located inside a cylindrical shell resembling a female connector, is referred to as male, while the socket, housed in a square probe that appears male, is actually electrically female. The female connector features two plastic fingers that need to be slightly pressed toward the central probe to fit into holes on the front of the male connector.

        When the connectors are pushed together, the fingers slide down the holes until they reach a notch on the side of the male connector, where they lock the two connectors securely. To ensure a proper seal, MC4 connectors require the use of cables with the correct diameter. Typically, these cables are double-insulated (insulation plus black sheath) and UV resistant, as outdoor use without protection from sunlight can cause cable deterioration. Connection is achieved through a special crimping tool or soldering.

        Benefits:

        • Reliable and secure connections: The Elcon Cables BANCHPR Genuine MC4 Branch Pair Connectors are engineered to provide reliable and secure connections for your solar panels. With their robust construction and precise design, these connectors offer a tight and durable connection, minimizing the risk of electrical faults or interruptions.

        • High voltage and current ratings: These MC4 connectors are rated for a voltage of 1000 VDC, making them suitable for high-power solar installations. They can handle a rated current of 30 A, allowing for efficient energy transfer from the solar panels to the rest of the system.

        • Durable and temperature-resistant: The connectors are designed to withstand demanding environmental conditions. With an upper limiting temperature of 105°C, they can handle high temperatures without compromising their performance. This durability ensures reliable operation in various climates and environments.

        • Excellent electrical conductivity: The Elcon Cables BANCHPR MC4 Branch Pair Connectors offer low contact resistance, with a rating of only 0.5 mΩ. This low resistance ensures efficient power transmission and minimizes energy losses within the solar system.

        • Easy installation: These MC4 branch pair connectors are designed for easy and hassle-free installation. They feature a standard 4mm connector diameter, making them compatible with most solar panel cables. The connectors can be quickly and securely attached, saving time and effort during the installation process.

        (BRANCHPR)

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.


        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.


        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Elcon
        SKU BRANCHPR
        Package Weight 0.125kg
        Package Width 0.110m
        Package Height 0.020m
        Package Length 0.170m
        TYPE VALUE
        Type Solar
        Brand Elcon
        Colour Black
        Rated Voltage 1000V DC
        Rated Current 30A
        Test Voltage 6000V
        Connector Diameter 4mm
        Upper Limiting Temperature 105°C
        Contact Resistance 0.5 mΩ
