        Fronius SYMO10.0-3-M | 10kW 3 Phase Dual MPPT Inverter
        $3,861.00 $3,510.00 ex. GST
        Description

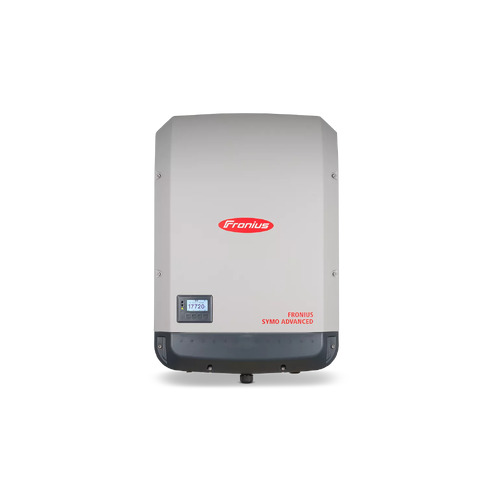

        Fronius SYMO10.0-3-M | 10kW 3 Phase Dual MPPT Inverter

        Description:

        Elevate your solar power system to new heights with the Fronius SYMO10.0-3-M, a state-of-the-art 10kW 3 Phase Dual MPPT Inverter. Fronius, a trusted name in the industry, presents a powerful and versatile solution that sets the standard for efficiency, reliability, and smart integration.

        Benefits:

        • Impressive Power Output: With a maximum AC output power of 10,000W (10kW), the Fronius SYMO10.0-3-M ensures your solar energy system operates at peak performance, harnessing ample electricity to meet your needs.

        • Wide Input Voltage Range: The DC input voltage range of 200-1000VDC provides flexibility in system design, allowing for compatibility with a variety of solar panel configurations.

        • Superior Efficiency: Boasting a maximum efficiency of 98.0%, this inverter maximizes the conversion of sunlight into electricity, optimizing your solar investment.

        • Robust Build: Designed to withstand environmental challenges, the Fronius SYMO10.0-3-M is built to thrive in temperatures ranging from -40°C to +60°C, ensuring year-round reliability.

        • SuperFlex Design: Irregularly shaped or multi-oriented roofs are no match for the Fronius SYMO's SuperFlex Design. This inverter adapts seamlessly to your unique solar setup.

        • Advanced Connectivity: Stay connected with ease through WLAN or Ethernet, allowing for effortless internet access and integration with third-party components. The Fronius Symo is one of the most communicative inverters on the market.

        • Dynamic Feed-In Management: The meter interface enables dynamic feed-in management, optimizing the flow of electricity and providing a clear visualization of your consumption overview.

        FAQ:

        Q. What is the maximum AC output power of the Fronius SYMO10.0-3-M?
        A. This inverter delivers a maximum AC output power of 10,000W (10kW), making it a robust choice for your solar power system.

        Q. What is the DC input voltage range for this inverter?
        A. The Fronius SYMO10.0-3-M supports a wide DC input voltage range of 200-1000VDC, offering compatibility with various solar panel configurations.

        Q. Is this inverter suitable for irregularly shaped or multi-oriented roofs?
        A. Yes, the Fronius SYMO features a SuperFlex Design, making it an ideal solution for systems with irregularly shaped or multi-oriented roofs.

        Q. Can I monitor my energy consumption with this inverter?
        A. Absolutely. The Fronius SYMO10.0-3-M offers dynamic feed-in management and provides a clear consumption overview, allowing you to monitor your energy usage effectively.

        Q. What are the connectivity options for this inverter?
        A. You can connect effortlessly via WLAN or Ethernet, ensuring seamless integration and ease of use.

        (SYMO10.0-3-M)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features
        INPUT DATA
        Number MPP trackers 2
        Max. input current (Idc max 1 / Idc max 2) 27.0 A / 16.5 A 1)
        Max. input current (Idc max 1 + Idc max 2) 43.5 A
        Max. array short circuit current (MPP1 / MPP2) 40.5 A / 24.8 A
        DC input voltage range (Udc min – Udc max ) 200 - 900 V
        Feed-in start voltage (Udc start ) 200 V
        Usable MPP voltage range 270 - 800 V
        Number of DC connections 3+3
        Max. PV generator output (Pdc max) 25 kWpeak
        OUTPUT DATA
        AC nominal output (Pac,r) 10,000 W
        Max. output power 10,000 VA
        AC output current (Iac nom) 14.4 A
        Grid connection (voltage range) 3-NPE 400 V / 230 V oder 3~NPE 380 V / 220 V (+20 % / -30 %)
        Frequency (Frequency range) 50 Hz / 60 Hz (45 - 65 Hz)
        Total harmonic distortion 1.8 %
        Power factor (cos φac,r) 0 - 1 ind. / cap.
        General Data
        Dimensions (height x width x depth) 725 x 510 x 225 mm
        Weight 34.8 kg
        Degree of protection IP 66
        Protection class 1
        Overvoltage category (DC / AC) 2 / 3
        Night-time consumption < 1 W
        Inverter design Transformerless
        Cooling Regulated air cooling
        Installation Indoor and outdoor installation
        Ambient temperature range -40 - +60 °C
        Permitted humidity 0 - 100 %
        Max. altitude 2,000 m / 3,400 m (unrestricted/restricted voltage range)
        DC connection technology 6x DC+ and 6x DC- screw terminals 2.5 - 16 mm2
        AC connection technology 5-pole AC screw terminals 2.5 - 16 mm2
        Certificates and compliance with standards VDE 0126-1-1/A1, VDE AR N 4105, IEC 62109-1/-2
        EFFICIENCY
        Max. efficiency 98.0 %
        European efficiency (ηEU) 97.4 %
        MPP adaptation efficiency > 99.9 %
        PROTECTIVE DEVICES
        DC insulation measurement Yes
        Overload behaviour Operating point shift, power limitation
        DC disconnector Yes
        Reverse polarity protection Yes
        INTERFACES
        WLAN / Ethernet LAN Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON)
        6 inputs and 4 digital inputs/outputs Interface to ripple control receiver
        USB (A socket) 1) Datalogging, inverter update via USB flash drive
        2x RS422 (RJ45-socket) 1) Fronius Solar Net
        Signalling output 1) Energy management (potential-free relay output)
        Datalogger and Webserver Included
        External input 1) S0-Meter Interface / Input for overvoltage protection
        RS485 Modbus RTU SunSpec or meter connection
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Fronius
        SKU SYMO10.0-3-M
        Shipping Weight 37.0000kg
        Shipping Width 0.775m
        Shipping Height 0.275m
        Shipping Length 0.560m
        Shipping Cubic 0.119350000m3
        TYPE VALUE
        Type Solar Inverter
        Brand Fronius
        Colour White
