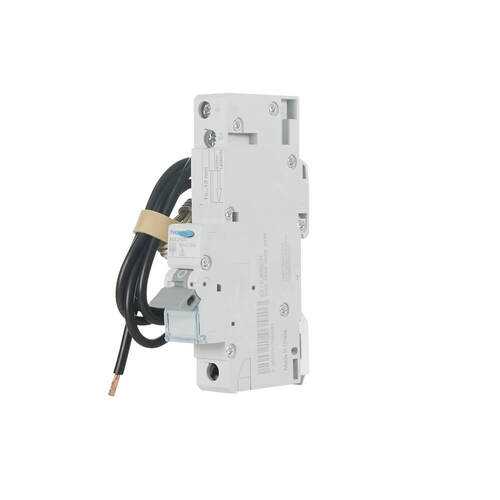

Hager ADC210T | 10A Single Pole RCBO Breaker | 30mA 6ka
Learn more by watching our Hager ADC210T | 10A Single Pole RCBO Breaker | 30mA 6ka video.
Hager ADC210T | 10A Single Pole RCBO Breaker | 30mA 6ka
Description:
The Hager ADC210T is a high-quality 10A Single Pole RCBO Breaker designed to provide optimal protection for electrical circuits. With a 30mA trip sensitivity and a rated short circuit breaking capacity of 6kA according to IEC60898-1, this device is engineered for safety and reliability. Its compact design, featuring a single pole and one module, makes it suitable for a wide range of applications, particularly in residential and commercial settings. The RCBO is designed for DIN rail mounting, offering easy installation and compatibility with standard electrical panels.
Features:
FAQ:
Q: What is the trip sensitivity of the Hager ADC210T?
A: The RCBO features a 30mA trip sensitivity, providing precise protection against residual currents.
Q: Can the Hager ADC210T be used in both residential and commercial installations?
A: Yes, its specifications make it suitable for a wide range of applications, ensuring safety and compliance in both residential and commercial settings.
Q: Is the RCBO easy to install?
A: Designed for DIN rail mounting, it offers a straightforward installation process, suitable for electricians familiar with electrical panel setups.
Q: How does the Hager ADC210T ensure long-term durability?
A: With an electrical endurance of 2000 cycles and up to 10000 mechanical operations, it is built for durability and sustained performance.
(ADC210T)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
| Feature | Description |
|---|---|
| Neutral position | Right |
| Number of protected poles | 1 |
| Number of poles | 1 P |
| Type of pole | 1 P |
| Fixing mode | DIN rail type O (symmetrical) |
| Curve | C |
| Number of modules | 1 |
| Top connection alignment for modular devices | Shifted terminal |
| Bottom connection alignment for modular devices | Aligned terminal |
| Rated short circuit breaking capacity Icn AC according to IEC60898-1 | 6 kA |
| Rated operational voltage Ue | 230/240 V |
| Type of supply voltage | AC |
| Frequency | 50/60 Hz |
| Rated insulation voltage | 250 V |
| Rated impulse withstand voltage | 4000 V |
| Rated residual operating current | 30 mA |
| Rated current | 10 A |
| Withstand not tripping on 8-20 μs wave | 0.25 kA |
| Breaking and opening capacity | 6000 A |
| min/max threshold value of the AC thermal operation | 1.13 / 1.45 In |
| Magnetic regulating current | 5 / 10 In |
| Electric current/temperature | -25°C/13.3A ~ 70°C/8A |
| Frequency | 50/60 Hz |
| Total power loss under IN | 2.8 W |
| Power loss per pole at In | 2 W |
| Electric endurance in number of cycles | 2000 |
| Number of mechanical operations | 10000 |
| Standards | IEC 61009-1 |
| Protection index IP | IP20 |
| Residual current type | A |
| Operating temperature | -5…40 °C |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Hager Electrical |
| SKU | ADC210T |
| Barcode # | 3250611035503 |
| Shipping Weight | 0.2190kg |
| Shipping Width | 0.075m |
| Shipping Height | 0.040m |
| Shipping Length | 0.150m |
| Shipping Cubic | 0.000450000m3 |
| TYPE | VALUE |
|---|---|
| Type | Breaker |
| Brand | Hager Electrical |
| Colour | White |
| Poles | 1 |
| RCBO | Yes |
