        Hager ADC220T | 20A Single Pole RCBO Breaker | 30mA 6ka
        $54.95 $49.95 ex. GST
        Video

        Learn more by watching our Hager ADC220T | 20A Single Pole RCBO Breaker | 30mA 6ka video.

        Description

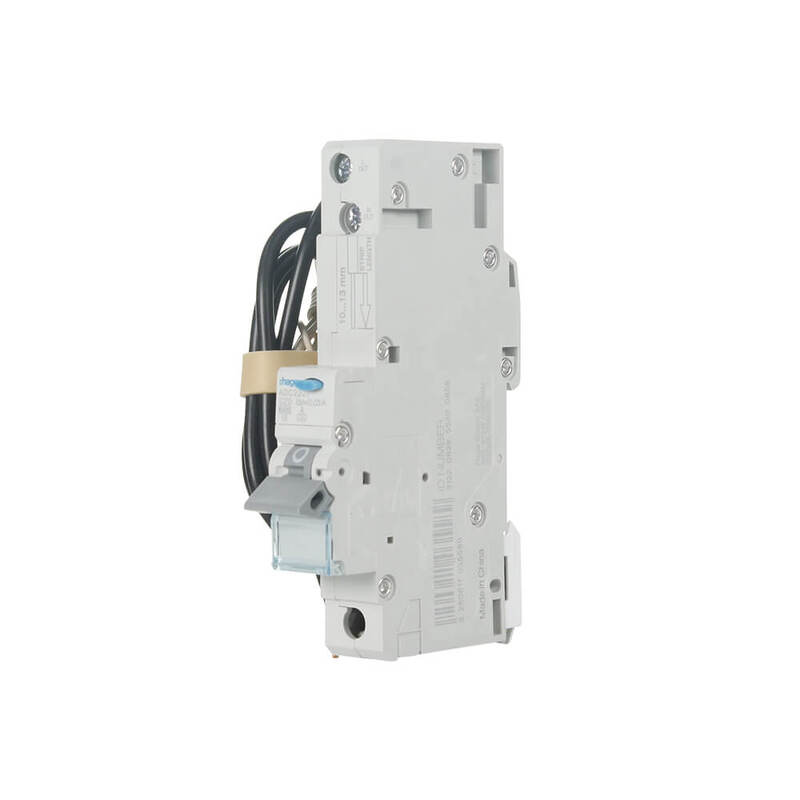

        Hager ADC220T | 20A Single Pole RCBO Breaker | 30mA 6ka

        Description:

        The Hager ADC220T is a meticulously engineered 20A Single Pole RCBO Breaker designed to offer superior protection for electrical circuits. Featuring a 30mA rated residual operating current and a 6kA rated short circuit breaking capacity, this device is crafted to safeguard against earth leaks and circuit overloads effectively. Its single-module, DIN rail-compatible design ensures easy installation and integration into electrical panels, making it a go-to choice for electricians prioritizing safety and reliability.

        Features:

        • Optimal Protection: With 30mA trip sensitivity and a 6kA interrupt capacity, it provides robust protection against electrical faults.
        • High Capacity: A 20A-rated current accommodates a wide range of electrical loads, ensuring versatility across various applications.
        • Durable Performance: Designed for longevity, it withstands 2000 electrical cycles and 10000 mechanical operations.
        • Adaptable to Conditions: Operates effectively within a wide temperature range from -25°C to 70°C, adjusting its rated current accordingly.
        • Standard Compliance: Meets IEC 61009-1 standard and features an IP20 protection index, adhering to high safety and quality benchmarks.
        • Efficient Installation: The DIN rail type O (symmetrical) fixing mode and clear terminal alignments facilitate a straightforward setup.

        FAQ:

        Q: What makes the HAGER ADC220T suitable for diverse electrical setups?
        A: Its 20A rating and compatibility with AC supply voltages of 230/240V make it adaptable for both residential and commercial installations.

        Q: How does the RCBO ensure safety against electrical shocks?
        A: The 30mA residual current sensitivity quickly detects earth faults, tripping the circuit to prevent electrical shocks and fire hazards.

        Q: Can the HAGER ADC220T be used in extreme temperatures?
        A: Yes, it's rated for operation in temperatures ranging from -5°C to 40°C, with current adaptability for extreme conditions, ensuring reliable performance.

        Q: Is installation of the HAGER ADC220T complex?
        A: Designed with ease of installation in mind, its DIN rail mounting and terminal alignment allow for simple integration into existing setups, making it user-friendly for electricians.

        (ADC220T)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features
        Feature Description
        Neutral position Right
        Number of protected poles 1
        Number of poles 1 P
        Type of pole 1 P
        Fixing mode DIN rail type O (symmetrical)
        Curve C
        Number of modules 1
        Top connection alignment for modular devices Shifted terminal
        Bottom connection alignment for modular devices Aligned terminal
        Rated short circuit breaking capacity Icn AC according to IEC60898-1 6 kA
        Rated operational voltage Ue 230/240 V
        Type of supply voltage AC
        Frequency 50/60 Hz
        Rated insulation voltage 250 V
        Rated impulse withstand voltage 4000 V
        Rated residual operating current 30 mA
        Rated current 20 A
        Withstand not tripping on 8-20 μs wave 0.25 kA
        Breaking and opening capacity 6000 A
        min/max threshold value of the AC thermal operation 1.13 / 1.45 In
        Magnetic regulating current 5 / 10 In
        Electric current/temperature -25°C/25.09A ~ 70°C/16.2A
        Frequency 50/60 Hz
        Total power loss under IN 6.5 W
        Power loss per pole at In 3.8 W
        Electric endurance in number of cycles 2000
        Number of mechanical operations 10000
        Standards IEC 61009-1
        Protection index IP IP20
        Residual current type A
        Operating temperature -5…40 °C
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Hager Electrical
        SKU ADC220T
        Barcode # 3250611035589
        Shipping Weight 0.2190kg
        Shipping Width 0.075m
        Shipping Height 0.040m
        Shipping Length 0.150m
        Shipping Cubic 0.000450000m3
        TYPE VALUE
        Type Breaker
        Brand Hager Electrical
        Colour White
        Poles 1
        RCBO Yes
