Learn more by watching our Hager ADC225T | 25A Single Pole RCBO Breaker | 30mA 6ka video.

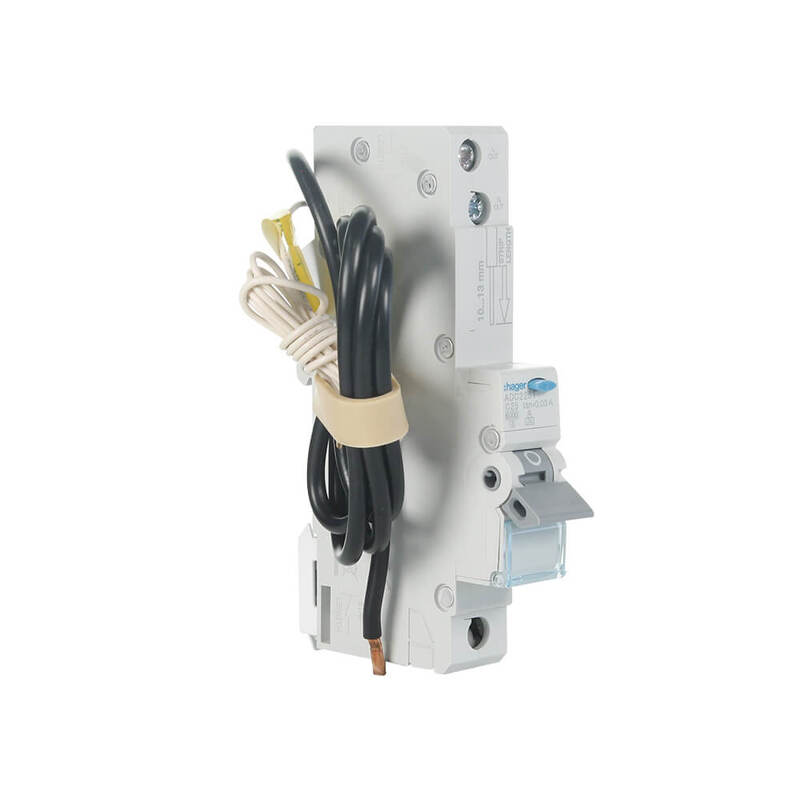

Hager ADC225T | 25A Single Pole RCBO Breaker | 30mA 6ka

The Hager ADC225T is a 25A Single Pole RCBO Breaker designed to offer protection and safety for electrical circuits. This breaker combines a 30mA residual current sensitivity with a 6kA rated short circuit breaking capacity, ensuring protection against electrical faults. Its design is focused on efficiency, with a single-module configuration for easy installation on DIN rails. Ideal for electricians looking for a reliable solution to safeguard residential and commercial environments.

25A 1P RCBO BREAKER FEATURES:

Superior Protection: With a 30mA rated residual operating current and a 6kA breaking capacity, it effectively prevents electrical hazards.
Enhanced Capacity: A 25A-rated current accommodates higher load applications, ensuring flexibility across various electrical installations.
Robust Design: Withstands 2000 electrical cycles and 10000 mechanical operations.
Temperature Versatility: Rated for operation in temperatures ranging from -5°C to 40°C, adapting its performance across extreme conditions.
Compliance and Safety: Adheres to IEC 61009-1 standards with an IP20 protection index, guaranteeing safety and reliability in its use.
Efficient Installation: Features DIN rail type O (symmetrical) fixing mode and clear terminal alignment for straightforward setup.

ADC225T FAQ:

Q: What applications is the Hager ADC225T suitable for?
A: Its 25A rating makes it versatile for both residential and commercial settings, capable of handling a wide range of electrical devices and appliances.

Q: How does the RCBO protect against electrical shocks and fires?
A: The 30mA trip sensitivity rapidly detects leakage currents, disconnecting the power to prevent potential electric shock or fire risks.

Q: Can the Hager ADC225T be used in harsh environments?
A: Yes, with its wide operational temperature range and durable construction, it ensures consistent performance even in challenging conditions.

(ADC225T)

100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

Items must be unused, with all parts, accessories, and original packaging.
We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
Proof of purchase is required.
Return shipping is the responsibility of the customer.

If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.

All products come with a manufacturer’s or supplier’s warranty

Warranty starts from the Invoice Date
Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
Sparky Direct isn’t responsible for losses caused by product failure.
Warranties are void if products aren’t installed by a licensed electrician.

Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.

Sparky Direct will pay for return shipping via an emailed return label.
If the fault is confirmed, we will send you a replacement item or provide a refund.

Exclusions
We can’t accept returns for:

Items that have been installed, modified, or used
Clearance, End of life, Discontinued, or special order items (unless faulty)
All PPE Items
Goods returned without original packaging or proof of purchase

How to Request a Return

Contact our customer service team with your order number.
Confirm it’s eligible under our return or warranty policy.
Pack the item securely and return it using a trackable service.
Once we receive and inspect it, we’ll process your refund or replacement.

Warranty starts from Invoice Date

Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct

Feature	Description
Neutral position	Right
Number of protected poles	1
Number of poles	1 P
Type of pole	1 P
Fixing mode	DIN rail type O (symmetrical)
Curve	C
Number of modules	1
Top connection alignment for modular devices	Shifted terminal
Bottom connection alignment for modular devices	Aligned terminal
Rated short circuit breaking capacity Icn AC according to IEC60898-1	6 kA
Rated operational voltage Ue	230/240 V
Type of supply voltage	AC
Frequency	50/60 Hz
Rated insulation voltage	250 V
Rated impulse withstand voltage	4000 V
Rated residual operating current	30 mA
Rated current	25 A
Withstand not tripping on 8-20 μs wave	0.25 kA
Breaking and opening capacity	6000 A
min/max threshold value of the AC thermal operation	1.13 / 1.45 In
Magnetic regulating current	5 / 10 In
Electric current/temperature	-25°C/33.11A ~ 70°C/18.4A
Frequency	50/60 Hz
Total power loss under IN	8.4 W
Power loss per pole at In	5.2 W
Electric endurance in number of cycles	2000
Number of mechanical operations	10000
Standards	IEC 61009-1
Protection index IP	IP20
Residual current type	A
Operating temperature	-5…40 °C

These specifications and characteristics outline physical, mechanical, electrical details.

Brand	Hager Electrical
SKU	ADC225T
Model #	ADC225T
Barcode #	3250611035657
Package Weight	0.220kg
Package Width	0.040m
Package Height	0.080m
Package Length	0.150m

View Datasheet

View Manual

TYPE	VALUE
Type	Breaker
Brand	Hager Electrical
Colour	White
Poles	1
RCBO	Yes
