        Hager ADC932T | 32A Single Pole and Neutral RCBO Breaker | 30mA 6kA
        $35.15 $31.95 ex. GST
        Video

        Learn more by watching our Hager ADC932T | 32A Single Pole and Neutral RCBO Breaker | 30mA 6kA video.

        Description

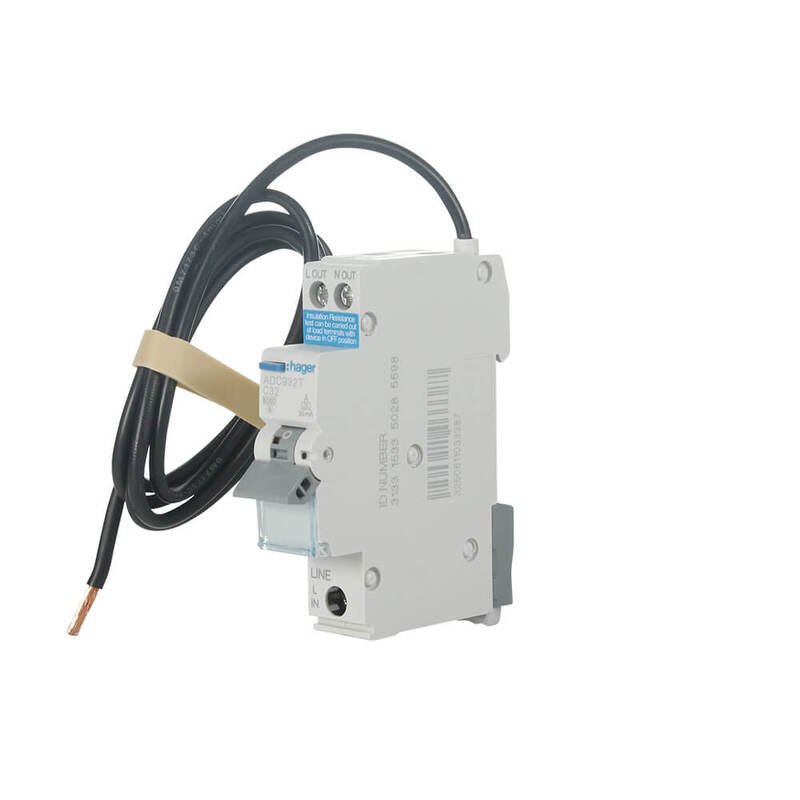

        Hager ADC932T | 32A Single Pole and Neutral RCBO Breaker | 30mA 6kA

        Description:

        The Hager ADC932T is a cutting-edge 32A Single Pole and Neutral (SPN) RCBO Breaker, crafted to offer superior protection in electrical circuits. It integrates a 30mA rated residual operating current and a 6kA rated short circuit breaking capacity, ensuring effective safeguarding against electrical faults. Designed for professional electricians, this RCBO is ideal for installations requiring precise protection, including residential, commercial, and industrial settings.

        Features:

        • Enhanced Protection: Features 30mA trip sensitivity and a 6kA interrupt capacity for robust defence against residual currents and short circuits.
        • Single Pole and Neutral: Offers comprehensive protection on both the live and neutral conductors within a single module design.
        • Versatile Use: Rated for 230/240 V AC supply with a frequency of 50 Hz, suitable for a wide range of electrical applications.
        • High Insulation Voltage: With a rated insulation voltage of 440 V and a maximum operating voltage of 264 V, it ensures safety and reliability.
        • Durable and Reliable: Built to endure with 2000 electrical cycles and 10000 mechanical operations, promising long-lasting performance.
        • Easy Installation: DIN rail type O (symmetrical) fixing mode, along with BIconnect terminals, simplifies the installation process.

        FAQ:

        Q: What sets the Hager ADC932T apart from other RCBOs?
        A: Its unique Single Pole and Neutral configuration offers comprehensive circuit protection in a compact, one-module design, making it highly efficient for safeguarding electrical installations.

        Q: Can the Hager ADC932T be used for heavy-duty applications?
        A: Yes, with a 32A rated current and the capability to handle significant electrical loads, it's ideal for demanding applications that require reliable protection.

        Q: Is the RCBO suitable for both residential and commercial installations?
        A: Absolutely, its specifications make it versatile for use in a variety of settings, from homes to commercial buildings, ensuring safety across all installation types.

        Q: How does the Hager ADC932T enhance safety during electrical faults?
        A: By quickly tripping at the first sign of a residual current fault, it minimizes the risk of electric shock and fire, enhancing the overall safety of the electrical system.

        (ADC932T)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features
        Feature Description
        Neutral position Right
        Number of protected poles 1
        Number of poles 2 P
        Type of pole 1P+N
        Fixing mode DIN rail type O (symmetrical)
        Curve C
        Number of modules 1
        Top connection alignment for modular devices Shifted terminal
        Bottom connection alignment for modular devices Aligned terminal
        Rated short circuit breaking capacity Icn AC according to IEC60898-1 6 kA
        Rated operational voltage Ue 230 / 240 V
        Type of supply voltage AC
        Frequency 50 Hz
        Rated insulation voltage 440 V
        Max operating voltage 264 V
        Rated impulse withstand voltage 4 kV
        Rated residual operating current 30 mA
        Rated current 32 A
        Withstand not tripping on 8-20 μs wave 0.25 kA
        Breaking and opening capacity 3 kA
        min/max threshold value of the AC thermal operation 1.13 / 1.45 In
        Magnetic regulating current 5 / 10 In
        Electric current/temperature -25°C/38.6 A ~
        70°C/26.6 A
        Depth of installed product 70 mm
        Height of installed product 85 mm
        Width of installed product 17.7 mm
        Frequency 50 Hz
        Total power loss under IN 12.48 W
        Power loss per pole at IN 8.06 W
        Standards IEC 61009-1, AS/NZS 61009-1
        Protection index IP IP20
        Operating temperature -25…70 °C
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Hager Electrical
        SKU ADC932T
        Barcode # 3250611033387
        Shipping Weight 0.1900kg
        Shipping Width 0.155m
        Shipping Height 0.040m
        Shipping Length 0.080m
        Shipping Cubic 0.000496000m3
        TYPE VALUE
        Type Circuit Protection
        Brand Hager Electrical
        Colour White
        RCBO Yes
