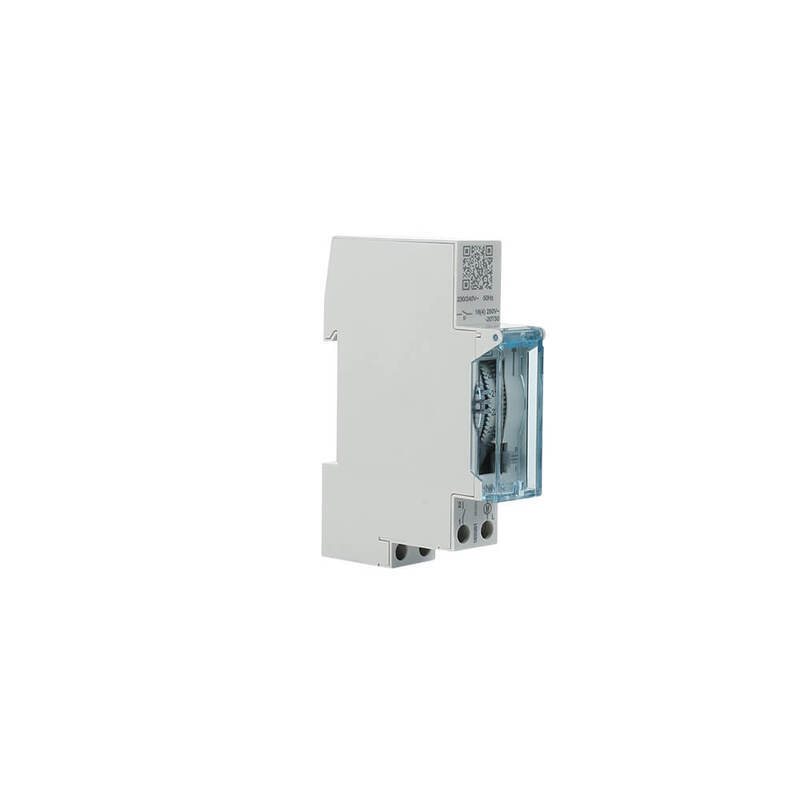

The Hager EHN010 is an analogue daily time switch rated 230V, switching one channel through a potential-free changeover contact. The EHN010 takes one 18mm module position on DIN rail and carries a maximum switching current of 3A at cos phi 0.6. Programming is analogue, operating on a 24 hour cycle with 96 program steps and a minimum switching interval of 15 minutes.
Timeclock control on a distribution board usually comes down to a single circuit: external lighting, a small pump, or ventilation that should not operate overnight. A digital timer adds cost and setup time when the job only needs the same schedule repeated every day. The EHN010 sets through a day dial carrying 96 program steps, so the operating times stay visible on the face. A slide switch for permanent on or automatic handles the override without disturbing those settings.
For a sparky pricing a board, the EHN010 is a single 18mm module that lands on the rail and works from the first cycle, with no commissioning app or backlit menu to learn. Screw terminals take 1 to 4mm2 conductors, so the timer wires up in the same pass as the surrounding gear. The potential-free changeover contact means the controlled circuit can sit on a separate supply, which keeps the timer useful across domestic, rural and light commercial boards. One part number covers a wide spread of daily switching jobs, which keeps van stock simple.
The EHN010 operates on a daily cycle only, so it cannot hold a separate configuration for weekends or selected weekdays. It carries no supply failure reserve, which means the dial requires resetting after any supply interruption, and seasonal time adjustment is manual. The IP20 protection index excludes exposed, damp and outdoor positions, and loads above 3A at cos phi 0.6 sit outside the contact rating.
Verified Sparky Direct customer reviews: Hager EHN010 | Single Pole Daily Time Switch 1 Channel 1 Module (EHN010)
"Excellent product. Prompt delivery. Worked a treat." — T
"Excellent service" — Billy
(EHN010)
The EHN010 carries an IP20 protection index, which covers indoor installation inside a switchboard or distribution enclosure. Exposed, damp and outdoor positions sit outside that rating. Operating temperature runs from -10 to 55 degrees Celsius, with storage and transport from -20 to 70 degrees Celsius.
The daily time switch clips onto DIN rail and takes one 18mm module position. Screw terminals accept rigid or flexible conductors from 1 to 4mm2. Switchboard wiring is electrical work, so a licensed electrician must carry out the installation and connection.
The EHN010 switches lighting circuits within its contact rating: up to 900W of 230V incandescent or halogen lamp load, and up to 100W of compact fluorescent. Maximum switching current is 3A at cos phi 0.6. Larger circuits are switched through a contactor coil driven by the potential-free contact.
Programming is analogue and set by moving segments around the day dial. The cycle repeats every 24 hours with up to 96 program steps, and the shortest switching time is 15 minutes. Summer and winter time changes are made manually.
Hager rates the mechanism at a minimum of 50,000 switching cycles, and a minimum of 20,000 cycles at cos phi 0.6. Power consumption sits at 0.5VA in operation, with around 1W total power loss at full load.
Warranty runs for one year on domestic use and one year on commercial use, starting from the invoice date. Claims are handled by return to Sparky Direct. Warranty is void if the product is not installed by a licensed electrician.
The Hager EHN010 is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
| Architecture | Fixing mode Din-Rail |
| Functions | |
| Number of function channels | 1 |
| Switching cycles | min. 50000 |
| Slide switch | with slide switch for permanent on/automatic |
| Configuration | |
| Switch mode | NO contact |
| Number of modules | 1 |
| Main electrical features | |
| Frequency | 50/60 |
| Voltage | |
| Operating voltage | 230 V~ |
| Electric current | |
| Max. power with cos phi 0.6 | 3 A |
| Switching current at cos φ = 0.6 | max. 3 A |
| Dimensions | |
| Depth of installed product | 60 mm |
| Height of installed product | 90 mm |
| Width of installed product | 18 mm |
| Width of rail-mounted device (RMD) | 1 module |
| Power | |
| Power consumed | 0.5 VA |
| Power consumption (operation) | 0.5 VA |
| Total power loss under IN | 1 W |
| Loss power at full load | ≈ 1 W |
| Power dissipation per coil | 0.5 W |
| Fluorescent bulbs control | |
| Compact fluorescent lamps max. | 100 W |
| Incandescent bulbs control | |
| Max. power with incandescent lamps | 900 W |
| Installation, mounting | |
| Mounting type | din-Rail |
| Installation mode | for mounting on DIN rail |
| Connection | |
| Connection cross-sect. flexible conductor | 1 / 4mm² |
| Connection cross-sect. rigid cable | 1 / 4mm² |
| Conductor cross-section (flexible) | 1…4 mm² |
| Conductor cross-section (rigid) | 1…4 mm² |
| Number of contacts | 1 |
| Type of contacts | 1 changeover |
| Type of connection | with screw terminals |
| Contact | with potential-free switching contact |
| Type of connection | with screw |
| Settings | |
| Number of program steps | 96 |
| Summer / Winter time change | manual |
| Shortest switching time | 15 mn |
| Type of programming | analog |
| Program cycles | Programme cycle: 24 hours |
| Programming cycle | 24H |
| Setting | Setting via day dial |
| Equipment | |
| Number of channels | 1 |
| Number of switching times for on/off | 96 |
| Supply failure reserve | without |
| Switching cycles at cos φ = 0,6 | min. 20000 |
| Use | Cycle daily |
| Safety | |
| Protection index IP | IP20 |
| Use conditions | |
| Operating temperature | -10…55 °C |
| Working accuracy | 1 |
| Storage/transport temperature | -20…70 °C |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Hager Electrical |
| SKU | EHN010 |
| Model # | EHN010 |
| Barcode # | 3250617201056 |
| Package Weight | 0.090kg |
| TYPE | VALUE |
|---|---|
| Type | Timer |
| Brand | Hager Electrical |
| Rated Current (A) | 3 |
| Height (mm) | 90 |
| Width (mm) | 18 |
| Depth (mm) | 60 |
| Protection | IP20 |
| Mounting | DIN Rail |
| Voltage (V) | 230 |
| Number of Poles | 1 |
| Number of Modules | 1 |
| Programming Type | Analog |
| Program Time | 24 Hours |
