        Hager VF212PT | GOLF 24 Pole 2 Row Flush Mount Distribution Board
        $76.45 $69.50 ex. GST
        Description

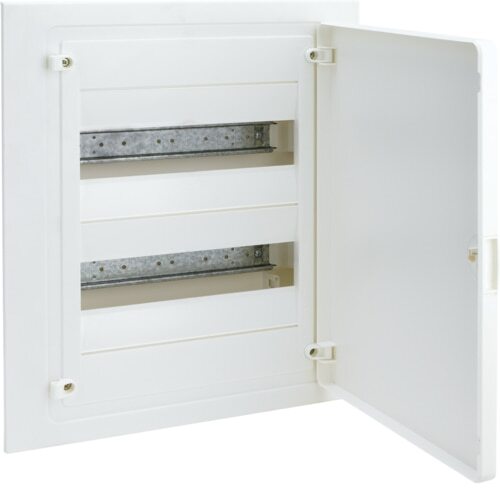

        Hager VF212PT | GOLF 24 Pole 2 Row Flush Mount Distribution Board

        Description:

        The Hager VF212PT GOLF 24 Pole Flush Mount Distribution Board represents a pinnacle in electrical distribution solutions. This board, known for its versatility and efficiency, is designed to support a range of installations from 1 to 4 rows and 4 to 72 modules.

        Featuring both opaque and transparent door options, this distribution board accommodates devices up to 70mm in installation depth. The door's capability to open up to 180 degrees, which can be fitted on either right or left, enhances accessibility and convenience. The addition of an optional lock and keys further elevates security and control.

        Installation is simplified with a symmetrical wall box and cover, providing removable cable entry sliders for seamless cable and conduit management. The inclusion of earth and neutral terminals, along with pole fillers, ensures a comprehensive setup for various electrical needs.

        In larger enclosures of 36 modules, a patented marking system and cable management clips are integrated for streamlined organization and identification. The distribution board also comes with transport protection film, safeguarding it during transit.

        This range of distribution boards, suitable for both flush and surface mounting, offers the choice between Q Link 63A terminals or 80A brass links, ensuring compatibility and flexibility for diverse electrical distribution requirements.

        Features:

        • Versatile Installation: From 1 to 4 rows and 4 to 72 modules.
        • Door Options: Opaque or transparent, opens 180 degrees, with optional lock.
        • Cable Management: Includes cable entries, earth and neutral terminals, and pole fillers.
        • Advanced Features: Patented marking system and clips in larger enclosures.
        • Security: Optional lock and keys for enhanced safety.

        FAQ:

        Q: Can the door be fitted on either side?
        A: Yes, the door can be fitted on both the right and left side.

        Q: Is this board suitable for a variety of installations?
        A: Absolutely, it's designed for versatility, supporting a range from 4 to 72 modules.

        Q: Does it offer secure installation options?
        A: Yes, it includes an optional lock and keys for added security.

        (VF212PT)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features
        Specification Details
        Fixing mode flush-mounting
        With a pipe-in lead Yes
        Number of modules 24
        Nominal voltage 400V
        Rated current 80A
        Insertion depth 72mm
        Depth of wall niche 72mm
        Internal depth 97.5mm
        Installation Dimensions (H x W x D) 382 x 382 x 97.5mm
        Width in division units 12
        Built-in height 382mm
        Built-in width 318mm
        Identification od protection index 40
        Interlockable No
        Number of keylock of the door 0
        Cover type Closed(plain)
        Door locking Without
        Door leave Single
        Cover type Door
        Transparent cover or door No
        Colour White
        RAL colour RAL 9010 - Pure White
        Suitable for outdoor use No
        Number of rows 2
        Can be accessorised Yes
        Extension possible Yes
        Earthing terminal block Yes
        Neutral terminal block Yes
        Signal passing door Yes
        GWT Glow wire test 850°C
        IK Rating IK07
        IP Rating IP40
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Hager Electrical
        SKU VF212PT
        Barcode # 3250616464865
        Shipping Weight 2.4000kg
        Shipping Width 0.370m
        Shipping Height 0.430m
        Shipping Length 0.100m
        Shipping Cubic 0.015910000m3
        TYPE VALUE
        Type Enclosure
        Brand Hager
        Colour White
