        Klein Tools CL390 | AC/DC Digital Clamp Meter 400A Auto-Range
        $95.95 $87.23 ex. GST
        Description

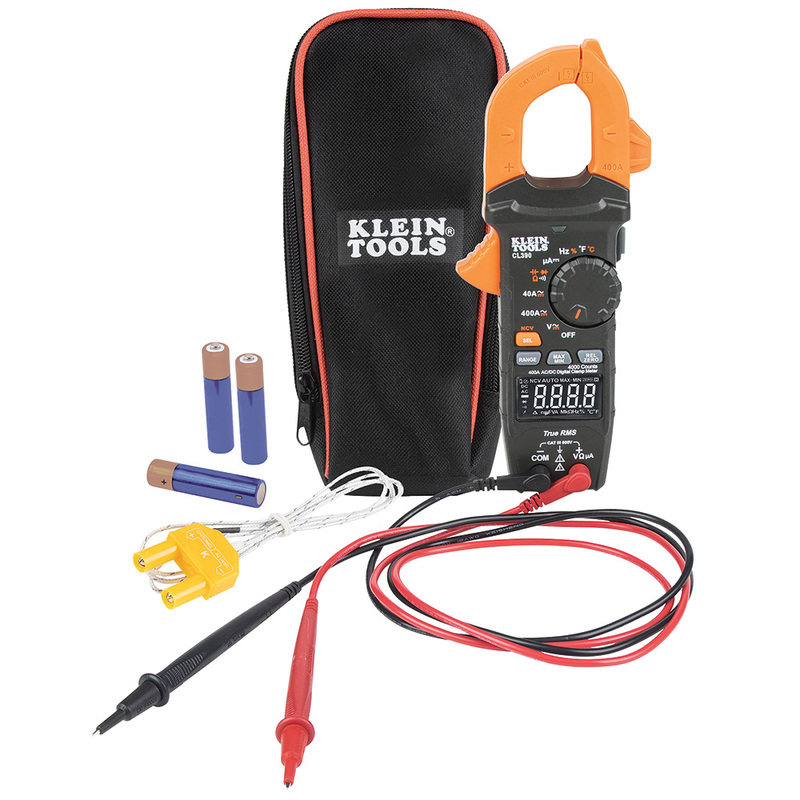

        Klein Tools CL390 | AC/DC Digital Clamp Meter 400A Auto-Range

        The Klein Tools CL390 is a versatile AC/DC digital clamp meter designed for electricians, offering precise and reliable measurements. Featuring automatically ranging true root mean squared (TRMS) technology, this meter measures AC/DC current and NCVT via the clamp, as well as AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, and diodes via test leads.

        It also measures temperature using a K-type thermocouple probe. The high-visibility reverse contrast LCD display ensures clear readings in all lighting conditions. Built to withstand a 6.6' drop, it includes a carrying case, test leads with safety caps, a thermocouple, instructions, and 3 x AAA batteries.

        AC/DC Digital Clamp Meter Features:

        • TRMS Technology: Automatically ranging true root mean squared measurements for accuracy.
        • Comprehensive Measurements: AC/DC current, NCVT, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, diodes, and temperature.
        • High Visibility: Reverse contrast LCD display for clear readings in any lighting.
        • Durable Design: Built to withstand drops up to 6.6 feet (2 meters).
        • Integrated NCVT: Non-contact voltage tester in the clamp jaw for added convenience.
        • User-Friendly: Auto power-off feature to conserve battery life and a low-battery indicator.
        • Safety Rated: CAT III 600 V, Class 2, double insulation, CE certified.

        CL390 FAQ:

        Q: What types of measurements can the Klein Tools CL390 perform?
        A: It measures AC/DC current, NCVT, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, diodes, and temperature.

        Q: Does the clamp meter include a non-contact voltage tester?
        A: It features an integrated non-contact voltage tester in the clamp jaw.

        Q: Is the display easy to read in different lighting conditions?
        A: Yes, it has a high-visibility reverse-contrast LCD display that improves readability in both dark and bright environments.

        (CL390)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features
        Specification Details
        Type AC/DC Current TRMS Clamp
        Material ABS/Electronics
        Batteries 3 x AAA
        Auto Shut Off Yes
        Jaw Size 4.1 cm
        Drop Protection 2 m
        Display 4000 Count Reverse Contrast LCD
        Functions TRMS, AC/DC Current, NCVT, AC/DC Voltage, Resistance, DC Microamps, Frequency, Capacitance, Continuity, Duty Cycle, Diode Test and Temperature
        Voltage 600 V AC/DC
        Frequency 10 Hz to 60 kHz for 8 V to 220 V AC RMS
        Current 400 A AC/DC
        Capacitance 4000 µF
        Ohms (Resistance) 40 MΩ
        AC Voltage 600 V
        DC Voltage 600 V
        DC Polarity Indicator Yes
        DC Microamp 200 µA
        Temperature Range -40 °C - 1,000 °C
        Standard CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified
        Included Clamp Meter; Carrying Case; Instructions; Test Leads; Thermocouple; Batteries
        Overall Length 21.5 cm
        Overall Height 3.8 cm
        Overall Width 8.9 cm
        Weight 314 g
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Klein Tools
        SKU CL390
        Barcode # 092644692871
        TYPE VALUE
        Brand Klein Tools
        Colour Orange/Black
        Current 400A AC/DC
        Operating Temperature 0°C - 40°C
        Batteries 3 x AAA
        Included Clamp Meter; Carrying Case; Instructions; Test Leads; Thermocouple; Batteries
        Tool Type AC/DC Clamp Meter
        Voltage (V) 600V AC/DC
