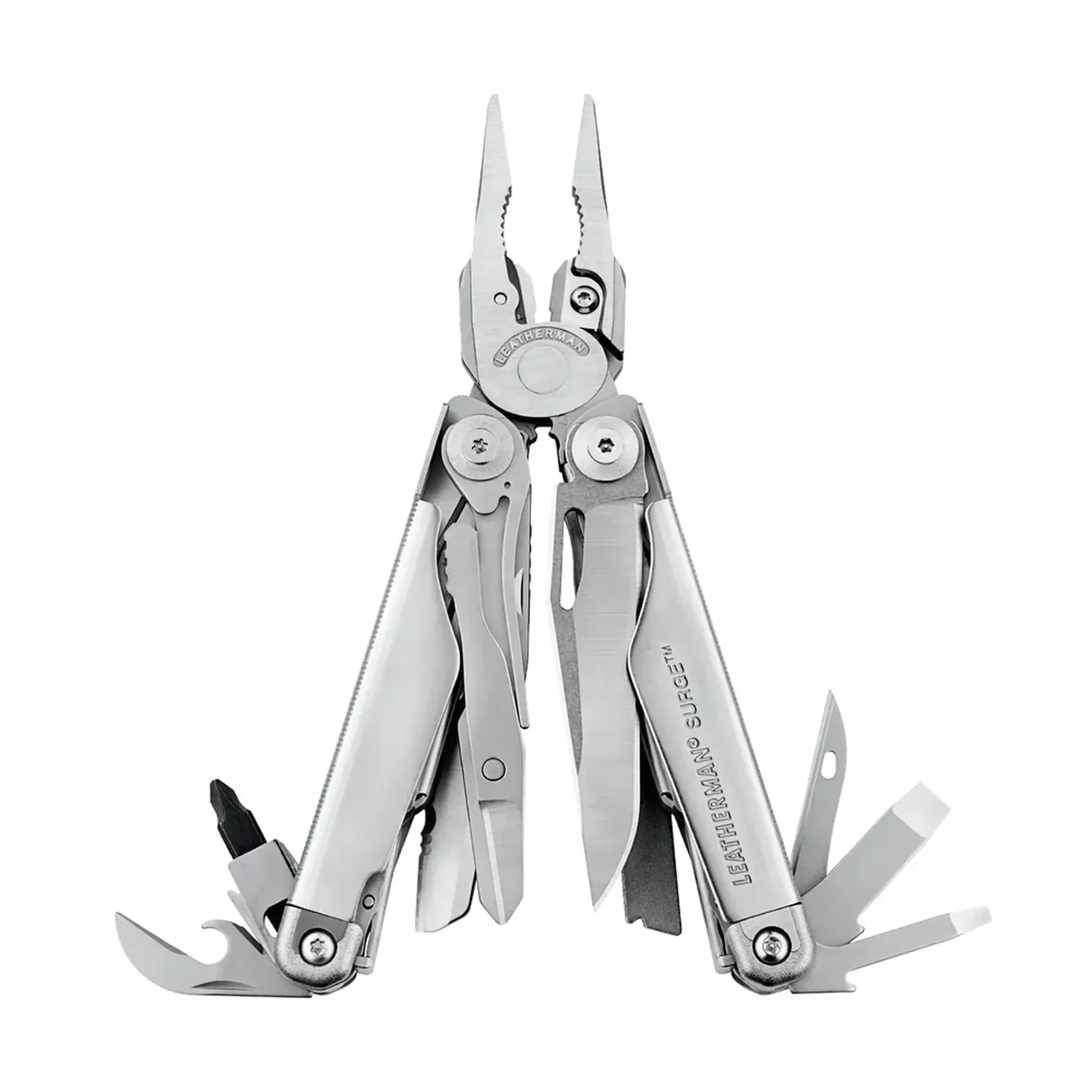

Leatherman | Surge 21-in-1 Heavy-Duty Multi-Tool | Stainless Steel
The Leatherman 830165 is a 21-tool multi-tool and one of the two largest Leatherman builds. The tool set runs from pliers and three wire cutting stations through to spring-action scissors, two 420HC blades, a saw and two files. The 830165 measures 115mm closed, weighs 335g and takes a 79mm primary blade.
Some jobs want the biggest tool in the drawer rather than the lightest one on the belt. At 335g the 830165 is heavier than a pocket multi-tool, and it uses that mass on Leatherman's largest plier head and longest blades. Spring-action scissors and a diamond-coated file are on board, neither of which appears on the smaller tools.
Access is the other half of it. Four blades open from outside the closed tool, so the knife or saw comes out without unfolding the handles first. Every handle tool locks when deployed, and the whole set works one-handed. The 154CM wire cutters lift out for sharpening or replacement when the edges finally go.
Features
- Twenty-one tools — the 830165 carries twenty-one working tools in one heavy-duty frame.
- 154CM replaceable cutters — the wire cutters are 154CM steel and lift out for sharpening or replacement.
- Three cutting stations — regular, hard-wire and stranded-wire cutters are provided as separate stations.
- Wire stripper and crimper — a wire stripper and an electrical crimper are both in the tool set.
- Spring-action scissors — the scissors return open under spring load between cuts.
- Two 420HC blades — the tool carries the longest blades Leatherman fits to a multi-tool, one plain and one serrated.
- Saw and two files — the set adds a saw, a wood and metal file, and a diamond-coated file.
- Four outside-opening blades — four blades deploy while the tool is still folded closed.
- Blade Exchanger — a Blade Exchanger fitting is included as one of the twenty-one tools.
- All locking features — every handle tool locks in place, with the plier head the one exception.
- 8 inch ruler — a 19cm ruler is marked along the handle for rough measurement.
- No sheath supplied — Leatherman states this product does not include a sheath.
Where to use
- Heavy plier work — the largest plier head Leatherman builds handles work the pocket tools cannot.
- Fast blade access — outside-opening blades reach the knife or saw without unfolding the handles.
- Cutting sheet and strapping — the spring-action scissors cut material a blade would tear.
- Touching up edges on site — the diamond-coated file works on hardened surfaces a steel file skates over.
- Mixed wire types — separate stations take regular, hard and stranded wire without changing tools.
- Long-service tool kit — the 154CM cutters are serviceable, so worn edges do not end the tool.
The 830165 has no insulation rating. Leatherman publishes no 1000V or VDE certification, so the stripper, cutters and crimper stay clear of anything live. The crimper has no published die specification, so certified terminations need a proper crimp tool. Two further points: the plier head does not lock, and no sheath is supplied with this tool.
