        Learn more by watching our Limit Switch With Cats Whisker Lever | LS/8169 video.

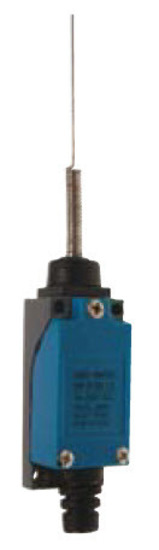

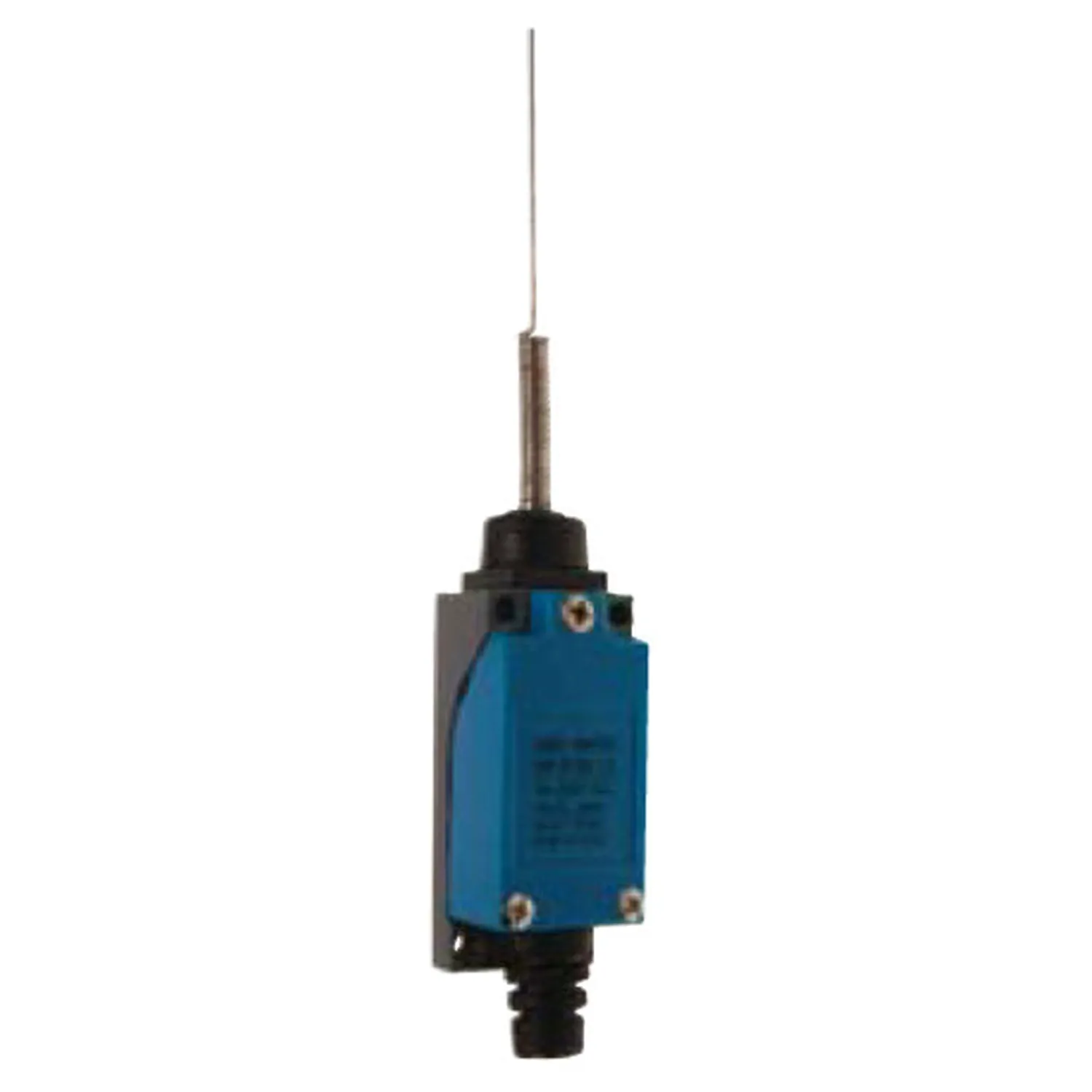

        Limit Switch With Cats Whisker Lever | LS/8169

        The LS/8169 is a limit switch fitted with a cat's whisker lever, a thin flexible wire actuator, with both normally closed (N/C) and normally open (N/O) contacts. Rated at 250V AC, 5A and 50Hz, the LS/8169 changes the state of a circuit when the whisker is deflected.

        Some machines need to know a part has arrived, but the part does not approach from the same angle each time. A rigid lever or plunger can miss it or be damaged, which is where a flexible actuator earns its place.

        A cat's whisker bends in different directions, so it can detect light or irregular contact where a stiffer lever might not. With N/C and N/O contacts on the one switch, you can wire a stop and a signal without adding a second device.

        Features

        • Cat's whisker lever — A thin flexible wire actuator that operates when it is deflected.
        • N/C and N/O contacts — Both contact types are provided, so you can use whichever the circuit needs.
        • 250V AC rating — Suits control circuits supplied at 250V AC.
        • 5A rated — The contacts are rated at 5A, so check your load against this figure before wiring.
        • 50Hz — Rated for 50Hz, which matches Australian mains frequency.
        • Position sensing — Detects a moving part at a set point in its travel.
        • Andeli brand — Supplied under the Andeli name.

        Where to use

        • Conveyors — Detecting product or carriers that arrive at varying angles.
        • Gates and doors — Detecting a leaf or panel reaching the end of travel.
        • Packaging and handling lines — Presence detection where contact force is light.
        • Machine control panels — Feeding position signals into interlock or sequencing circuits.

        Not suitable for loads above 5A or 250V AC, or for DC loads, as only the AC rating is stated. A wire whisker is not the right actuator where a heavy part must be stopped or held. No ingress protection rating is given, so check the conditions before using it outdoors. Fixed wiring is work for a licensed electrician.

        (LS-8169)

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.


        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.


        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Andeli
        SKU LS-8169
        Package Weight 0.090kg
        TYPE VALUE
        Type Switches
        Brand Andeli
