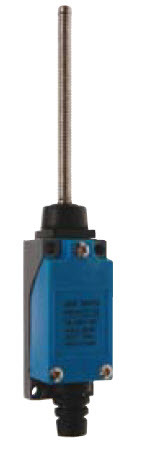

        Limit Switch With Coil Spring Lever | LS/9101

        The LS/9101 is a limit switch fitted with a coil spring lever, with both normally closed (N/C) and normally open (N/O) contacts. Rated at 250V AC, 5A and 50Hz, the LS/9101 changes the state of a circuit when a moving part pushes the lever over.

        Gates, doors, carriages and conveyors all need something to tell the control circuit when a moving part has reached a set position. Without a switch at the end of travel, a stop or interlock has to rely on a timer or on someone watching the machine.

        Having both N/C and N/O contacts on one switch lets you wire a stop circuit and a signal or next-stage start from the same device. A coil spring lever is a flexible actuator, so the moving part does not need to meet it perfectly square.

        Features

        • Coil spring lever — The actuator is a coil spring lever that flexes when a moving part contacts it.
        • N/C and N/O contacts — Both contact types are provided, so you can use whichever the control circuit calls for.
        • 250V AC rating — Suits control circuits supplied at 250V AC.
        • 5A rated — The contacts are rated at 5A, so check your load against this figure before wiring.
        • 50Hz — Rated for 50Hz, which matches Australian mains frequency.
        • Position sensing — Operates when the lever is moved, which makes it suitable for end-of-travel and door or gate position detection.
        • Pulset brand — Supplied under the Pulset name.

        Where to use

        • Conveyors — End-of-travel or presence detection along a line.
        • Gates and roller doors — Open and closed position limits in the control circuit.
        • Machine guards — Position detection on doors and covers that move through a set travel.
        • Control panels and interlocks — Signalling and sequencing between stages of a machine.

        Not suitable for loads above 5A or 250V AC, or for DC loads, as only the AC rating is stated. No ingress protection rating is given for this switch, so check the conditions before using it in wet, dusty or washdown areas. Fixed wiring and control installation is work for a licensed electrician.

        (LS-9101)

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.


        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.


        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Pulset
        SKU LS-9101
        Barcode # 9321592227455
        Package Weight 0.098kg
        TYPE VALUE
        Brand Pulset
