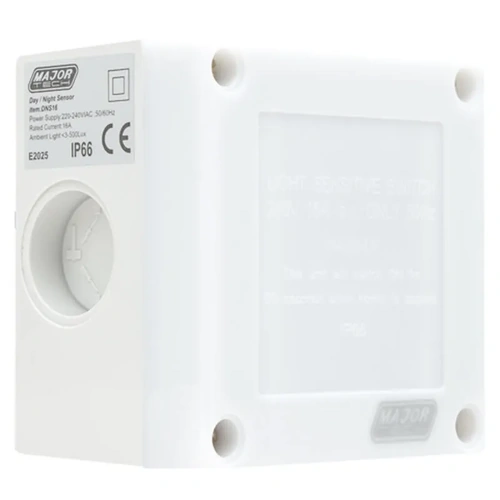

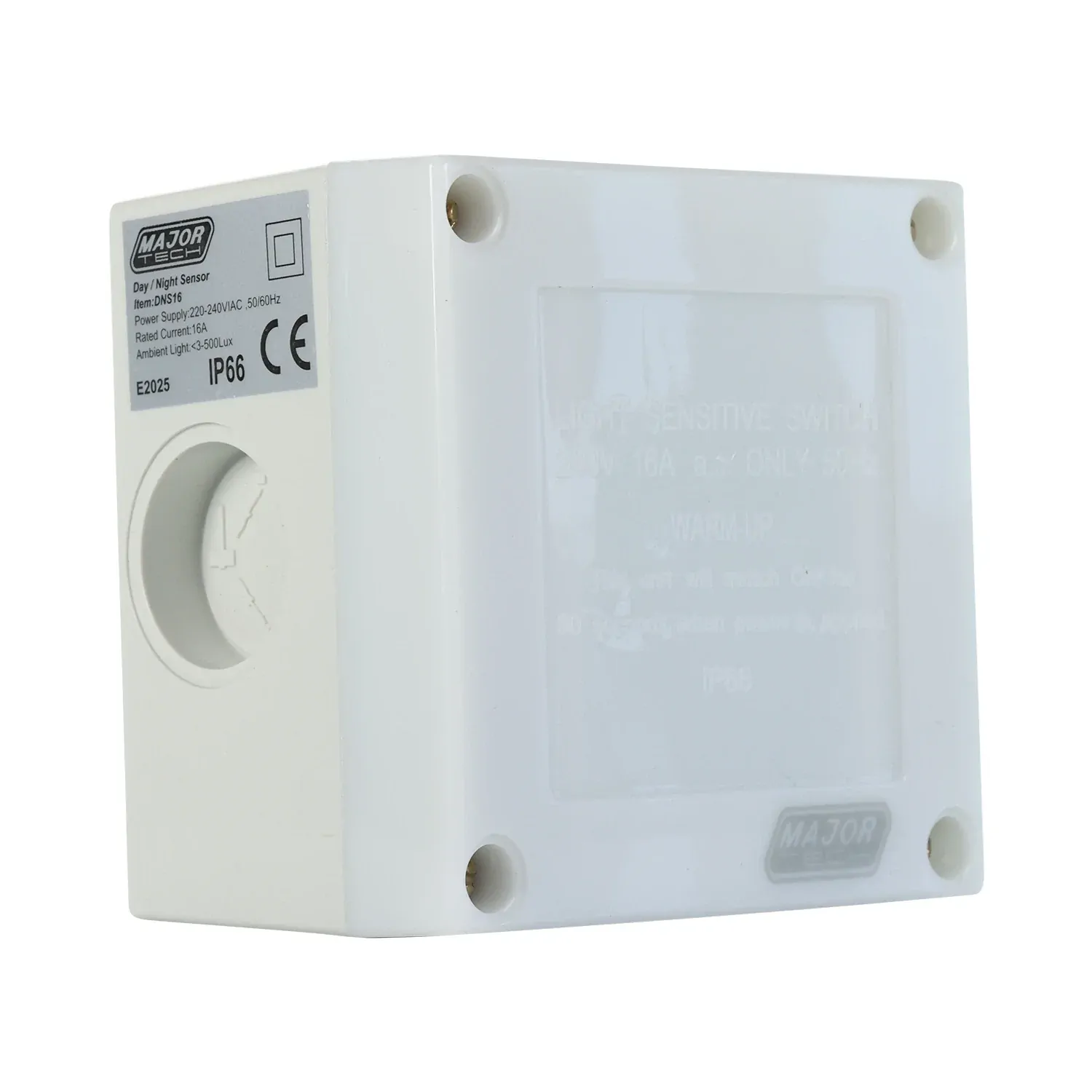

        Major Tech DNS16 | 16A Day/Night Sensor with Timer | IP65

        The Major Tech DNS16 is a high-capacity day/night sensor with integrated timer control, built for automating lighting in outdoor and indoor environments. Designed to switch lights on at dusk, it can be set to switch off after 1-9 hours or stay on until dawn, helping improve energy efficiency and security in high-traffic or access areas.

        Rated at 16A, the DNS16 handles heavy lighting loads with ease, including LED, CFL, and incandescent systems. It also features an adjustable Lux range (3-50 Lux) to fine-tune activation sensitivity. With IP54 weather protection, wall or ceiling mounting, and six cable knockouts for simple wiring, it’s a flexible solution for commercial and residential use.

        DNS16 Features

        • Adjustable Light Sensitivity: Set dusk activation between 3 and 50 Lux
        • Built-In Timer Function: Choose 1-9 hour run time or dusk-to-dawn mode
        • Heavy-Duty Load Rating: Supports up to 16A lighting loads
        • Flexible Installation: Mount to walls or ceilings with multiple cable entry points
        • Weatherproof Design: IP54-rated housing for sheltered outdoor use
        • Wide Operating Range: Functions from -20°C to 40°C with <93% humidity

        DNS16 FAQ

        Q: Can I set a specific shut-off time after dusk?
        A: Yes, you can select a timer duration from 1 to 9 hours, or allow dusk-to-dawn operation.

        Q: Will this work with LED lighting?
        A: Yes, it supports various lighting types, including LED, up to 16A total load.

        Q: Where can I mount the DNS16?
        A: It’s suitable for both wall and ceiling installation in covered outdoor or indoor areas.

        (DNS16)

        Warranty

        Warranty starts from Invoice Date

        5 Years Limited Warranty
        Warranty Method: Return to Sparky Direct

        Features
        Specification Details
        Ambient Light 5 to 50 Lux (Adjustable)
        Voltage 220 to 240V AC
        Power Frequency 50/60Hz
        Rated Current 10A
        Mounting Walls and Poles
        Working Temperature -20°C to 40°C
        Working Humidity <93% RH
        IP Rating IP65 (Outdoor installation)
        Standards IEC 60669-1 / 60669-2-1
        AS/NZS 60669.1 / 60669.2.1
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Major Tech
        SKU DNS16
        Model # DNS16
        Barcode # 6008229042485
        Package Weight 0.242kg
        Package Width 0.070m
        Package Height 0.153m
        Package Length 0.090m
        TYPE VALUE
        Type Sensor
        Brand Major Tech
        Rated Current (A) 16A
        Timer 1, 2, 3, 4, 5, 6, 7, 8, 9 & Dusk to Dawn
        Voltage (V) 220 to 240V AC
        IP Rating IP65
        Ambient Light 3 to 50 Lux (Adjustable)
        Power Frequency 50/60Hz
