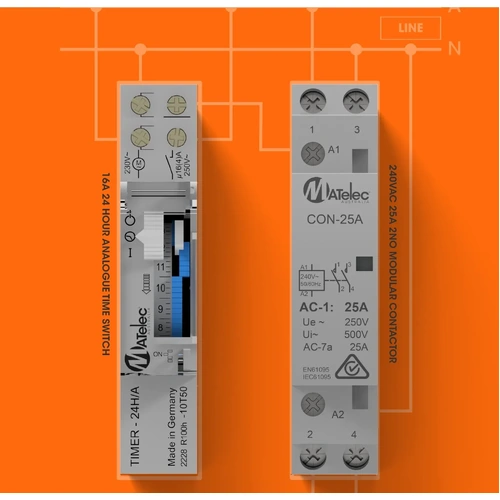

The Matelec HWB-TIMER-CON-1 is a purpose-built control solution for electric hot water systems, providing a pre-matched combination of 24-hour mechanical timer and silent 25A modular contactor in one ready-to-install package. Designed specifically for hot water applications, this combo ensures reliable operation, simplified installation, and optimal compatibility—helping electricians save time and avoid mismatched components on-site.
The TIMER-24H/A allows up to 100 switching events per day in 15-minute intervals, ideal for scheduling hot water heating cycles to suit household routines or off-peak tariffs. The built-in manual override and 100-hour lithium battery backup ensure operation even during power outages. Paired with the CON-25A/2NO contactor, the kit delivers silent switching with no coil hum, providing reliable performance for continuous resistive loads typical of electric hot water systems.
Its compact, DIN rail-mountable design fits easily into switchboards or control enclosures, making it the go-to choice for residential or light commercial hot water installations.
Q: What applications is this bundle suited for?
A: It’s purpose-designed for electric hot water systems but also suits other timed resistive loads in residential or light commercial settings.
Q: How is this bundle installed?
A: Both the timer and contactor are DIN rail-mounted inside an enclosure for protection and neat installation.
Q: Can the timer handle short interval programming?
A: Yes, it allows settings in 15-minute increments, supporting up to 100 on/off cycles per day.
(HWB-TIMER-CON-1)
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Return to Sparky Direct
Specification | Details |
---|---|
SKU: TIMER-24H/A | |
Mounting | Din Rail |
Weatherproof Rating | IP20 |
Supply Voltage | 240Vac |
Operating Frequency | 50/60Hz |
Power Consumption | 1W |
Relay Outputs | N/O |
Operational Current Range | Resistive 16A, Inductive 2.5A |
Timing Range | 24 hours, 15 min segments |
Max Cable Capacity | 1 Phase: 4mm² |
Working Reserve Time | 100 hours |
SKU: CON-25A/2NO | |
Control Voltage | 240Vac |
Operating Frequency | 50/60Hz |
Auxiliary Contact | AC12 5A 240Vac |
Operating Temperature | -5°C to +50°C |
Storage Temperature | -40°C to +70°C |
Endurance (O/C) | 100,000 cycles |
Max Switching Operations/Day | 100 |
Insulation Voltage (Ui) | 500 Vac |
Rated Impulse Withstand Voltage | 2.5kV (4kV for 12/24/48V AC) |
Weatherproof Rating | Device only: IP20 (Requires enclosure) |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Matelec |
SKU | HWB-TIMER-CON-1 |
Barcode # | 9338999010337 |
Package Weight | 0.235kg |
Package Width | 0.090m |
Package Height | 0.105m |
Package Length | 0.050m |
TYPE | VALUE |
---|---|
Type | Hot Water Bundle |
Brand | Matelec |
Mounting | Din Rail |
Timer Operational Current Range | Resistive 16A, Inductive 2.5A |
Timing Range | 24 hours, 15 min segments |
Auxiliary Contact (Breaking Capacity) | AC12 5A 240Vac |
Switches Per Day | 100 Max |
