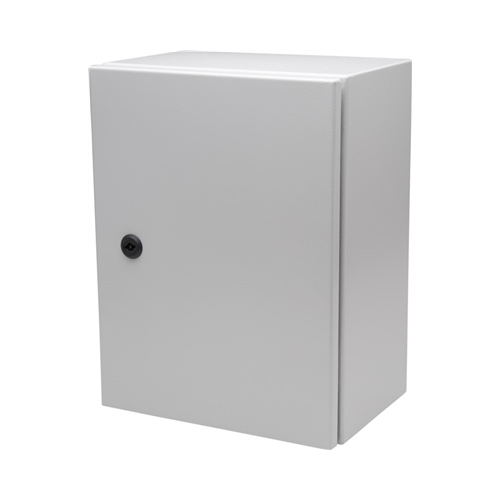

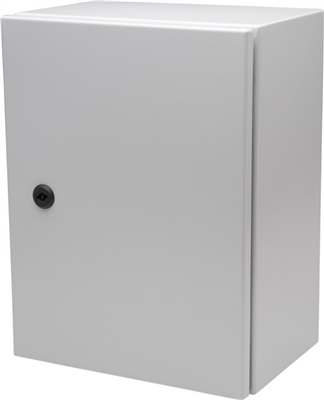

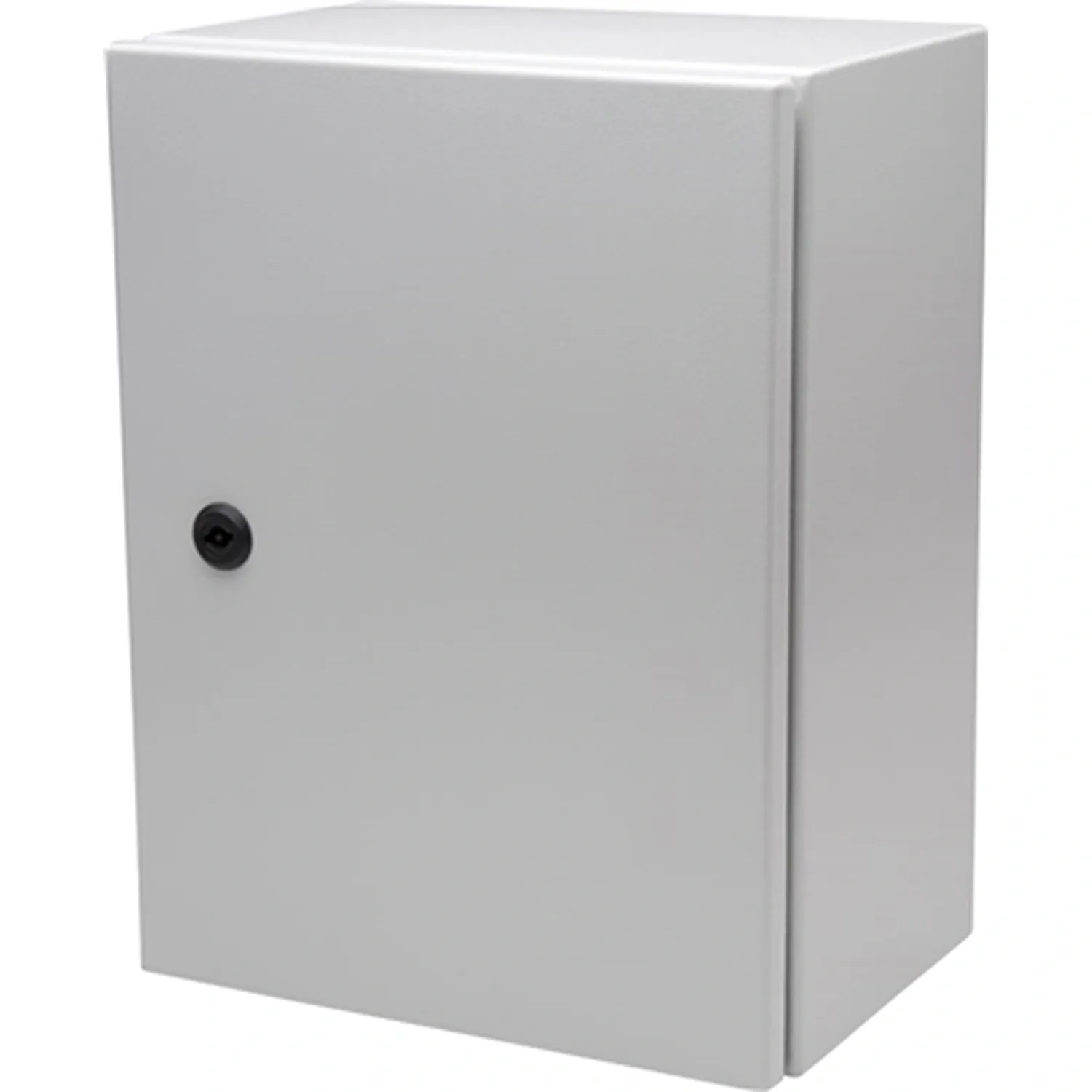

        NHP NLS0202015 | Enclosure NLINE M/Steel 200 x 200 x 155mm IP66
        $129.80 $118.00 ex. GST
        Description

        NHP NLS0202015 | Enclosure NLINE M/Steel 200 x 200 x 155mm IP66

        Description:

        Enhance your electrical infrastructure with the NLS0202015 Enclosure from NHP. This wall-mounted enclosure, crafted from Mild Steel with a Light Grey powder coating, brings together form and function in a sleek design. Explore the benefits and discover more about this exceptional product through our FAQs.

        Benefits:

        • Robust Construction: Built from powder-coated Mild Steel, the NLS0202015 ensures a robust and enduring enclosure that withstands the test of time.

        • IP66 and IK10 Protection: With an impressive IP66 rating, this enclosure is dust-tight and protected against powerful water jets. The IK10 rating adds impact resistance, making it ideal for demanding environments.

        • Complete Installation Kit: The package includes a 2mm galvanized steel mounting plate, gland plate, and a quarter-turn double-bit 3mm insulated lock with key, providing everything you need for a hassle-free installation.

        • Reversible Door: Enjoy flexibility in installation with the reversible door feature. This enclosure adapts effortlessly to various applications, maximizing its utility.

        • Indoor Use: While the NLS0202015 is recommended for indoor use, its construction ensures reliable performance and protection for your electrical components.

        FAQ:

        Q: Is this enclosure suitable for outdoor use?
        A: The NLS0202015 is recommended for indoor use. For outdoor applications, consider additional protective measures.

        Q: What is the IP66 rating?
        A: The IP66 rating signifies that the enclosure is dust-tight and protected against powerful water jets, ensuring superior protection against environmental factors.

        Q: What is the IK10 rating for?
        A: The IK10 rating indicates a high level of impact resistance, making the enclosure suitable for environments where it may be subject to mechanical stress.

        Elevate your electrical infrastructure with the NLS0202015 by NHP—an enclosure that combines resilience, functionality, and ease of installation. Trust in its quality to safeguard your valuable components.

        (NLS0202015)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Clipsal in home warranty

        Features

        Product Specifications

        Specifications Details
        Material, Body / Housing Powder Coated Mild Steel material
        Colour, Body / Housing Light Grey (RAL 7035) colour
        Finish, body / housing Ripple body/housing
        Height 200 mm
        Width 200 mm
        Depth 155 mm
        Weight 3 kg
        IP Rating IP66
        IK Rating IK10
        Material, Mounting Plate / Bracket Zinc Galvanized Steel
        Material Thickness, Mounting Plate / Bracket 2 mm
        Height, Mounting Plate 170 mm
        Width, Mounting Plate 150 mm
        Number of Gland Plates 1 qty
        Height, Gland Plate Opening 110 mm opening height
        Width, Gland Plate Opening 56 mm opening width
        Number of Locks 1 qty
        Lock Type DIN - 1/4 Turn type
        Diameter, Lock 3 mm
        Material, Lock Plastic material
        Certifications CE
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand NHP
        SKU NLS0202015
        Barcode # 9321807208255
        Shipping Weight 3.0000kg
        Shipping Width 0.225m
        Shipping Height 0.175m
        Shipping Length 0.210m
        Shipping Cubic 0.008268750m3
        TYPE VALUE
        Type Enclosures
        Brand NHP
        Colour Light Grey
