        NHP NLS0505021 | Enclosure NLINE M/Steel 500 x 500 x 210mm IP66
        $271.46 $246.78 ex. GST
        Description

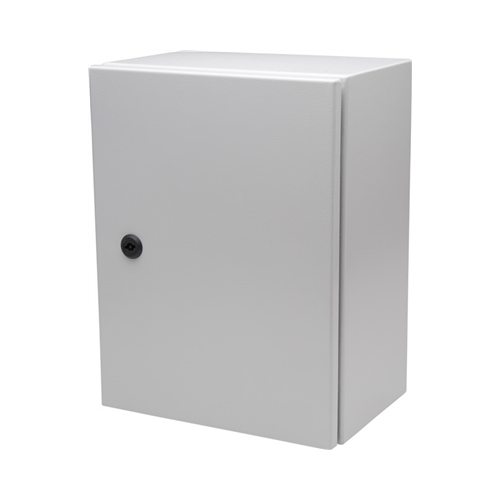

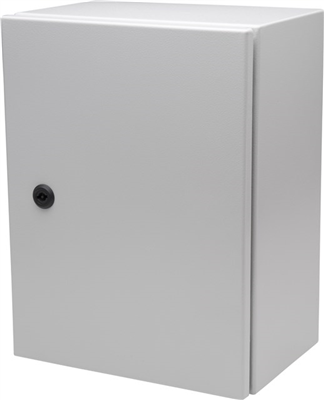

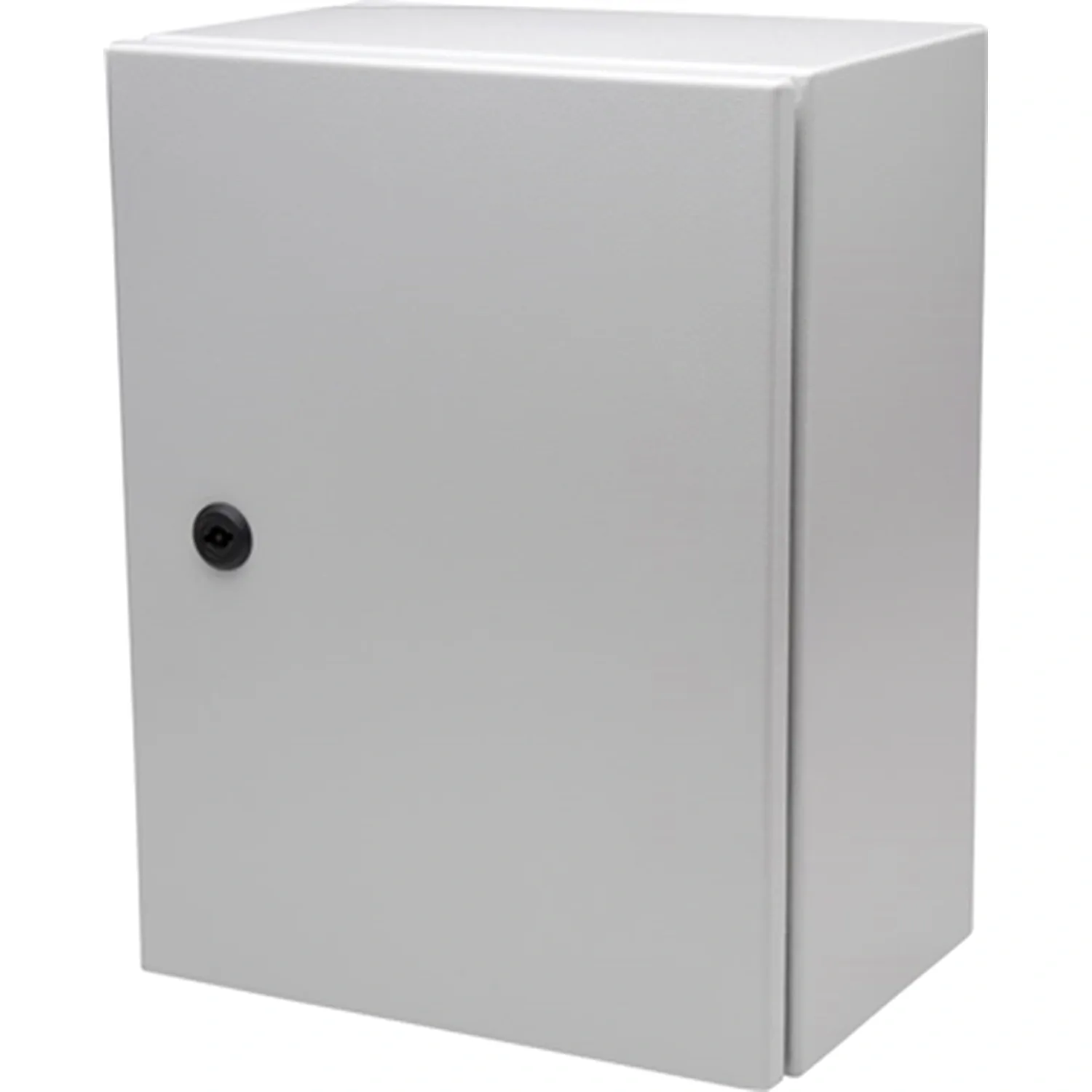

        NHP NLS0505021 | Enclosure NLINE M/Steel 500 x 500 x 210mm IP66

        Description:

        Discover the pinnacle of durability and versatility with the NHP NLS0505021 Enclosure. Immerse yourself in a world of innovation, featuring light grey powder coating, IP66 and IK10 protection, and a comprehensive installation kit. Explore the benefits that set this enclosure apart and find answers to common queries in our FAQ section.

        Benefits:

        • Exceptional Mild Steel Build: Crafted from robust Mild Steel, the NLS0505021 ensures longevity and resilience, providing a secure fortress for your vital electrical components.

        • IP66 and IK10 Ratings: Boasting an IP66 rating, this enclosure is impervious to dust and can withstand powerful water jets, making it suitable for a spectrum of environments. The IK10 rating guarantees outstanding impact resistance, ensuring your components remain secure in challenging conditions.

        • All-Inclusive Installation Kit: The package includes a 2mm galvanized steel mounting plate, gland plate, and a quarter-turn double-bit 3mm insulated lock with a key, providing everything necessary for a secure and hassle-free installation.

        • Versatile Reversible Door: The reversible door design enhances installation flexibility, allowing the same enclosure to serve multiple applications effortlessly.

        • Certified Quality: Certified with CE, the NLS0505021 adheres to the highest quality standards, ensuring reliable performance and peace of mind.

        FAQ:

        Q: Can this enclosure be used outdoors?
        A: The NLS0505021 is recommended for indoor use. For outdoor applications, additional protective measures may be necessary.

        Q: What does the IP66 rating signify?
        A: The IP66 rating certifies the enclosure's dust-tight design and its ability to withstand powerful water jets, ensuring robust protection in diverse environments.

        Q: How do I access the enclosure after installation?
        A: The enclosure features a quarter-turn double-bit 3mm insulated lock with a key for secure and convenient access.

        Upgrade your electrical defence with the NHP NLS0505021 Enclosure, where cutting-edge design meets unparalleled protection. Trust in its quality to safeguard your essential components and fortify your electrical infrastructure with confidence.

        (NLS0505021)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features

        Product Specifications

        Specifications Details
        Material, Body / Housing Powder Coated Mild Steel material
        Colour, Body / Housing Light Grey (RAL 7035) colour
        Finish, body / housing Ripple body/housing
        Height 500 mm
        Width 500 mm
        Depth 210 mm
        Weight 14 kg
        IP Rating IP66
        IK Rating IK10
        Material, Mounting Plate / Bracket Zinc Galvanized Steel
        Material Thickness, Mounting Plate / Bracket 2 mm
        Height, Mounting Plate 470 mm
        Width, Mounting Plate 450 mm
        Number of Gland Plates 1 qty
        Height, Gland Plate Opening 410 mm opening height
        Width, Gland Plate Opening 96 mm opening width
        Number of Locks 1 qty
        Lock Type DIN - 1/4 Turn type
        Diameter, Lock 3 mm
        Material, Lock Plastic material
        Certifications CE
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand NHP
        SKU NLS0505021
        Barcode # 9321807208316
        Shipping Weight 14.0000kg
        Shipping Width 0.520m
        Shipping Height 0.520m
        Shipping Length 0.230m
        Shipping Cubic 0.062192000m3
        TYPE VALUE
        Type Enclosures
        Brand NHP
        Colour Light Grey
