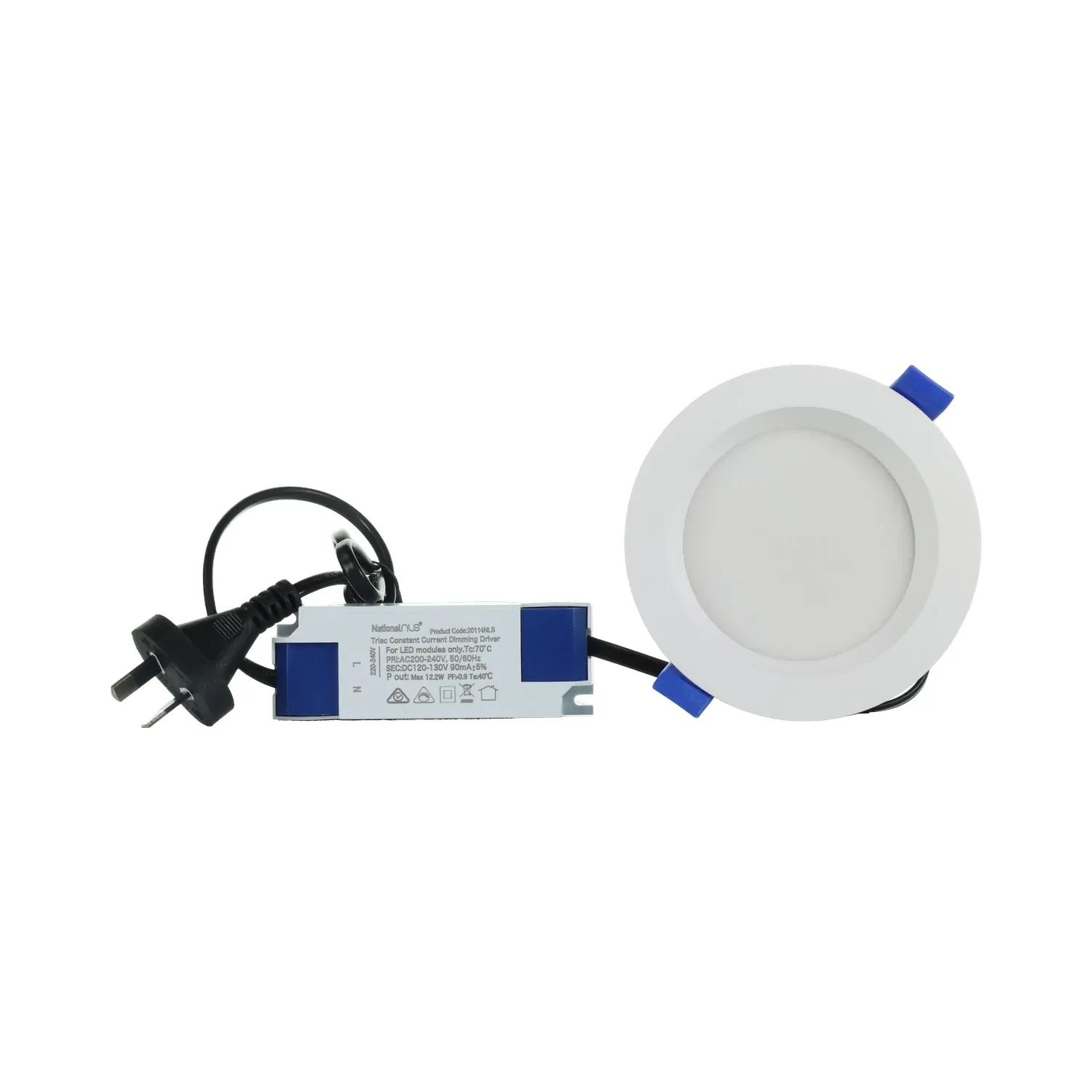

        NLS | 12W 90mm LED Recessed Downlight Tri-CCT Dimmable | 1200lm

        The NLS 20114 is a 12W recessed LED downlight with selectable Tri-CCT colour temperature, rated 240V and delivering up to 1200 lumens. The 20114 fits a 90mm cut-out and switches between 3000K warm white, 4000K cool white, and 6000K daylight. It is dimmable, ships with an LED driver, and carries an IP44 front face rating for indoor installation.

        Colour temperature is the specification decided once and regretted later. A fixed 3000K fitting specified for a bedroom is wrong the day that room becomes a study. Fixed-colour inventory then strands whatever units mismatch the brief. The 20114 delivers 3000K, 4000K, and 6000K in one fitting, so temperature is determined per room at installation rather than at the counter. Its 90mm cut-out matches the aperture most older downlights leave behind, which reduces a retrofit to a straight exchange.

        A single SKU covering three colour temperatures is why Tri-CCT inventory earns its position on the van. The 20114 achieves that at 12W for up to 1200 lumens, positioning it above the common 10W alternatives wherever a kitchen or laundry demands additional illumination. The driver is supplied, so the fitting arrives as a complete kit rather than a parts list. An IP44 front face additionally covers bathroom zones outside the shower enclosure, eliminating a second product from the order.

        Features

        • Tri-CCT selectable — the 20114 switches between 3000K warm white, 4000K cool white, and 6000K daylight, so one fitting covers three specifications.
        • 12W output — draws 12W at 240V, which suits general ceiling lighting across residential and light commercial work.
        • Up to 1200 lumens — delivers 100 lumens per watt, giving usable brightness for kitchens and work surfaces rather than accent levels.
        • 90mm cut-out — matches the most common existing downlight hole size, so most retrofits drop straight in without enlarging the cut.
        • 100 degree beam angle — spreads light broadly and evenly, which reduces the shadowing a narrow beam leaves between fittings.
        • Dimmable — the 20114 works with suitable LED dimmers, so the same fitting serves living areas that need a lower setting at night.
        • IP44 front face — rated against splash on the visible face, which covers compatible indoor ceiling positions.
        • Driver included — supplied with the LED driver, so the fitting arrives ready for installation with no separate driver to specify.
        • Recessed fitting — the compact body sits within the ceiling, leaving a flush face rather than a projecting fixture.
        • Colour set before install — the Tri-CCT selection is made on the fitting, so confirm the temperature with the customer before the unit goes into the ceiling.
        • Indoor rating only — the IP44 front face covers splash, not direct spray, so the 20114 is not an enclosed shower zone or exposed external fitting.

        Where to use

        • Bathrooms — the 20114 suits bathroom zones calling for an IP44 front-rated downlight, such as over the vanity and in circulation areas.
        • Kitchens — 1200 lumens at 4000K puts working light on the bench, where a lower output fitting leaves the bench in shadow.
        • Laundries — a cool or daylight setting suits a task space, and the IP44 front face covers the splash a laundry produces.
        • Bedrooms — the 3000K setting keeps the room warm, and the dimmable driver takes the level down without changing the fitting.
        • Living areas — the 100 degree beam gives even coverage across an open space from a standard ceiling height.
        • Lighting upgrades — the 20114 replaces older 90mm cut-out downlights with LED, which is the common driver of a whole-house relamp.
        • Light commercial fit-outs — one Tri-CCT SKU covers offices, amenities, and back-of-house without three separate line items.

        The 20114 carries an IP44 front face rating, which covers splash and condensation but not direct spray. It is not suited to enclosed shower zones or to external soffits open to wind-driven rain, where a higher IP rating is required. Set the Tri-CCT selection before the fitting goes in, because the colour switch is not accessible once the unit is seated in the ceiling.

        (20114)

        The NLS 20114 is designed for general ceiling lighting in homes, apartments and light commercial spaces.

        The Tri-CCT switch allows you to select 3000K warm white, 4000K neutral white or 6000K daylight.

        It delivers up to 1200 lumens, making it suitable for everyday room lighting.

        It is designed for a standard 90mm ceiling cut-out.

        Yes. The IP44 front-face rating makes it suitable for compatible bathroom and wet area ceiling installations.

        Yes. Sparky Direct stocks the NLS 20114 with fast dispatch across Australia.

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.

        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.

        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct



        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand NATIONAL LIGHT SOURCES
        SKU 20114
        Model # 20114NLS
        Barcode # 9336700012823
        Package Weight 0.246kg
        TYPE VALUE
        Type Down Light
        Brand National Light Sources
        Colour White
        Power Source 240V
        Mounting Recessed
        Lighting Technology LED
        Light Colour (K) 3000/4000/6000
        Voltage (V) 240V
        Cut out Diameter 90mm
        IP Rating IP44 (Face Only)
        Cover Diameter (mm) 110
        Light Wattage (W) 12
