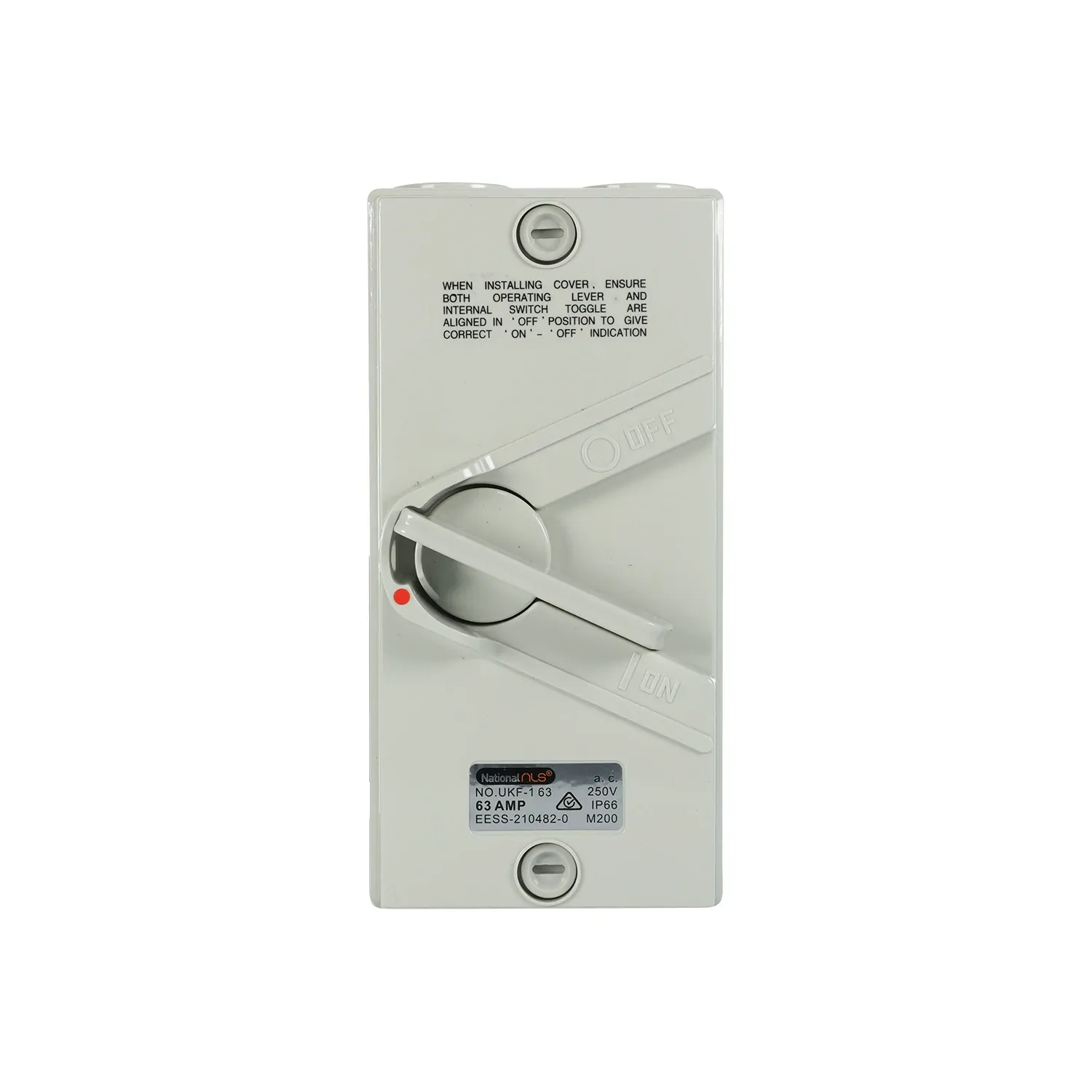

        NLS 30104 | Single Pole 63Amp Isolator Switch | IP66 Weather Protected

        The NLS 30104 is a robust 63A single pole isolator switch, purpose-built for outdoor electrical isolation in harsh Australian conditions. Rated IP66, it ensures safe and compliant disconnection for air conditioning units and other outdoor electrical setups.

        With large terminals that accept 6mm–8mm cable, plus neutral and earth links included, this unit is designed for quick, streamlined installation. The UV-resistant high-impact polycarbonate housing and silica gel basket seal protect against dust, water, and environmental wear.

        It also features padlocking options in both ON and OFF positions, supporting safety procedures during service. Complies with IEC/EN60947-3 and AS/NZS60947-3 standards for full regulatory peace of mind.

        NLS 30104 Features

        • 63A single pole isolator switch: Ideal for air conditioners and general outdoor isolation points.
        • IP66 weatherproof rating: Fully protected against dust and high-pressure water.
        • Neutral and earth links included: Makes wiring fast and efficient.
        • Large terminal capacity: Accepts 6–8mm² cable with secure clamping.
        • Padlockable ON/OFF functionality: Supports safe maintenance lockout procedures.

        30104 FAQ
        Q: Is this isolator switch suitable for air conditioners?
        A: Yes, it’s commonly used for AC units and outdoor isolation, rated at 63A and IP66 for weather resistance.

        Q: Can it be locked for safety?
        A: Yes, padlock facilities are available in both ON and OFF positions.

        Q: What cable size does it support?
        A: It accepts 6mm² to 8mm² cables with strong terminal clamps.

        (30104)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand NATIONAL LIGHT SOURCES
        SKU 30104
        Barcode # 9336700012786
        Package Weight 0.421kg
        Package Width 0.090m
        Package Height 0.090m
        Package Length 0.175m
        TYPE VALUE
        Brand National Light Sources
        Range WeatherX
        Colour Resistant Grey
        Complete / Skin Only / Grid Plate Only Complete
        Number of Switches / Gangs 1
        Standards IEC/EN60947-3 and AS/NZS60947-3
        Protection IP66
        Rated Current 63A
