        Learn more by watching our ROBUS RVA4CH-REC | Vegas 384W 4 Channel Receiver For RGB Light Strip video.

        Description

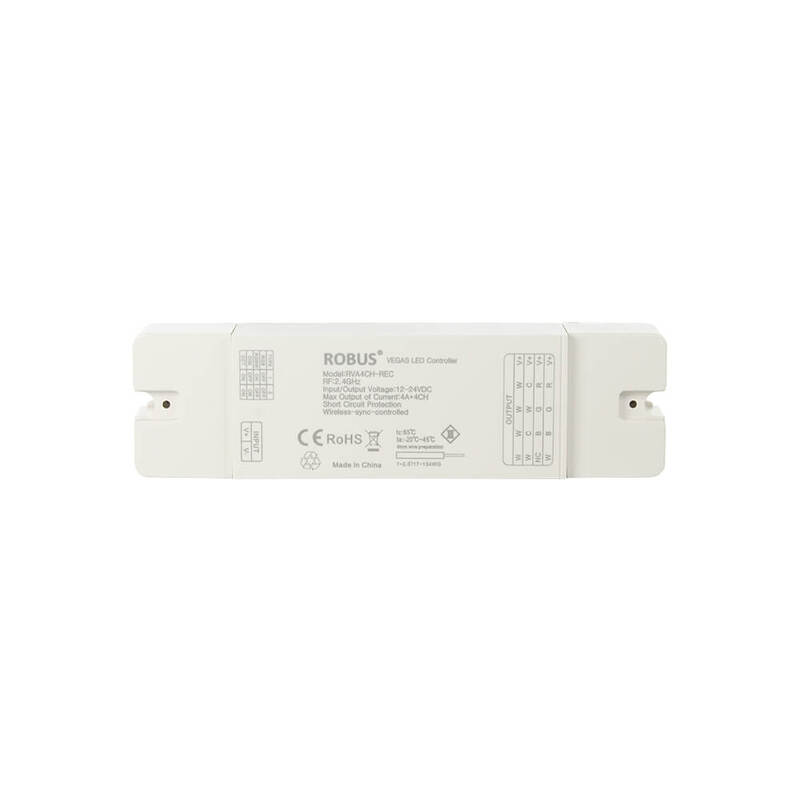

        ROBUS RVA4CH-REC | Vegas 384W 4 Channel Receiver For RGB Light Strip

        Description:

        The ROBUS RVA4CH-REC receiver is an essential component of the VEGAS RGB lighting system, designed to deliver unparalleled control and flexibility for your lighting projects. This 4-channel receiver is compatible with the entire VEGAS range and is specifically designed for use with the RVA4Z-RC remote controller. It enables the creation of complex lighting scenes across four independently programmable zones, with 2.4GHz RF technology ensuring a reliable operation range of up to 20 meters.

        Whether adjusting the ambience in a room or creating dynamic lighting displays, the RVA4CH-REC receiver offers precise control over your RGB light strips. It supports both 12V and 24V DC outputs, catering to various installation needs, and features PWM at 2KHz for smooth intensity adjustments. With a robust operating temperature range and the ability to wirelessly sync multiple receivers within 10 meters, this device provides both performance and versatility.

        Features:

        • 2.4GHz RF Technology: Ensures reliable operation within a 20-meter range.
        • Flexible Voltage Support: Compatible with 12V and 24V DC VEGAS light strips.
        • Wireless Sync Control: Seamlessly integrate multiple receivers for expansive lighting setups.
        • Robust Operating Range: Suitable for environments from -20°C to +40°C.

        FAQ:

        Q: How do I pair the receiver with the remote?
        A: Follow the instructions in the RVA4Z-RC RGB Remote manual for pairing and zone-setting for tailored control.

        Q: Can multiple receivers be synchronized?
        A: Yes, ensure controllers are within 10m for effective wireless synchronization in static and dynamic modes.

        Q: Is a separate power supply needed for each zone?
        A: For optimal pairing and configuration, it's recommended to have an independent power supply or switch for each area or zone.

        (RVA4CH-REC)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 3 Year
        Commercial Use: 3 Year
        Warranty Method: Return to Sparky Direct

        Features
        Specification Details
        Output 12V or 24V DC
        Max Load/Channel 12V:<48W, 24V:<96W
        Max Current Output 16A(4A per Channel)
        PWM 2KHz
        Controller Supply Voltage DC12~24V
        Connecting Mode Common anode
        Product Size L160*W46*H25 mm
        Wireless-Sync-Control Yes
        RF 2.4G
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Robus
        SKU RVA4CH-REC
        Barcode # 5391370070492
        Package Weight 0.135kg
        Package Width 0.170m
        Package Height 0.050m
        Package Length 0.055m
        TYPE VALUE
        Type LED Remote Receiver
        Brand Robus
