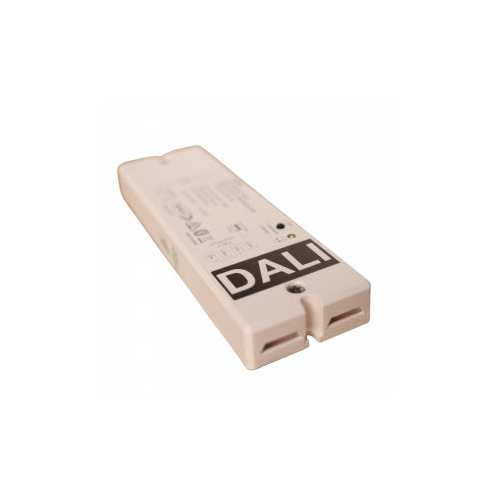

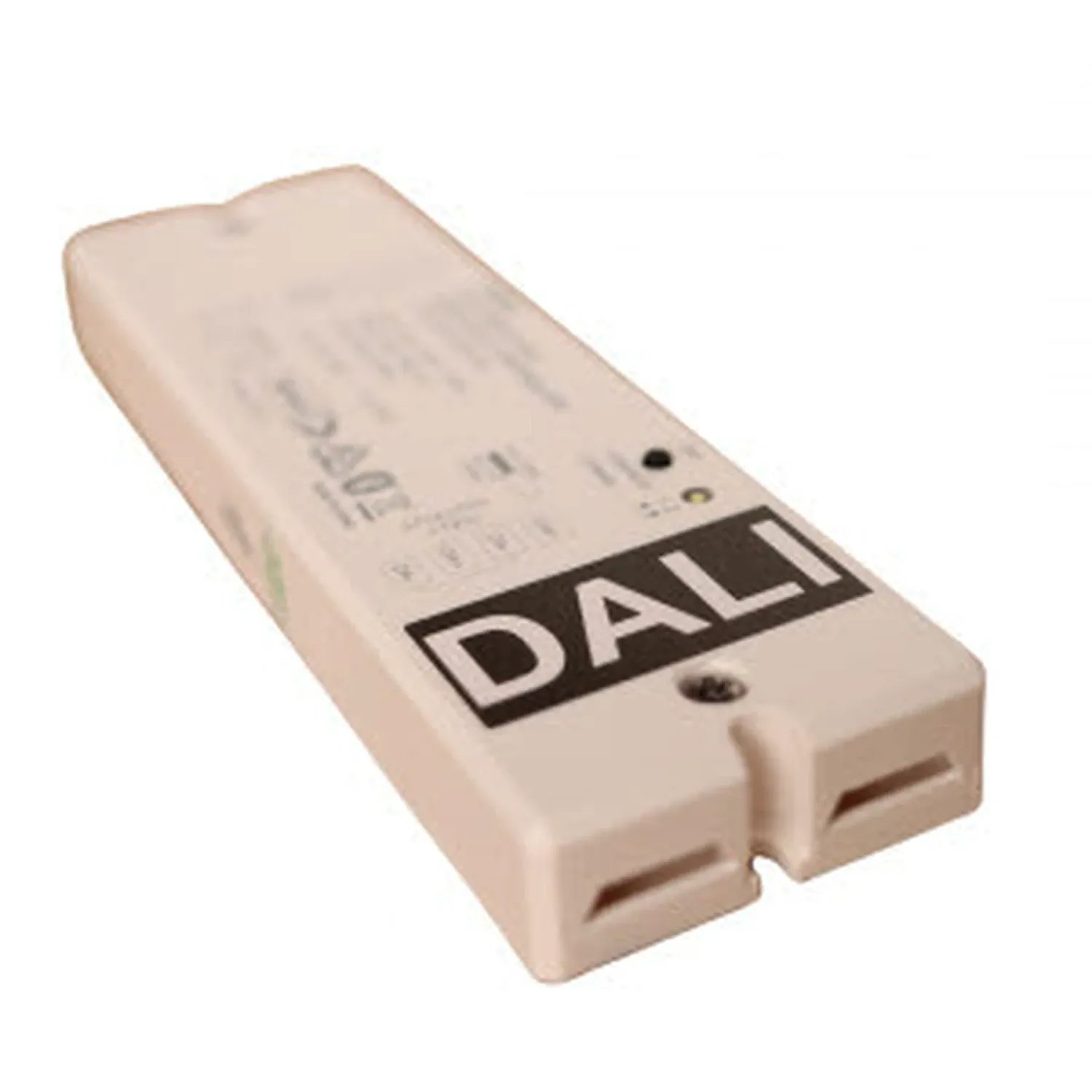

The SAL PC155DLB-R-BTAM is a PIXIE DALI broadcast controller rated 220-240V AC 50Hz, designed to control DALI-2 and DALI drivers on a single bus line through broadcast commands. The PC155DLB-R-BTAM pairs with the free PIXIE and PIXIE PLUS apps over Bluetooth and carries an in-built relay as an optional control method. It suits residential and commercial lighting where synchronous dimming and switching are needed without DALI addressing or programming. The controller is rated IP20 and installs on a 220-240V 50Hz supply by a licensed electrician.
Commissioning a DALI lighting circuit usually means addressing and programming each driver, which adds time on site. The PC155DLB-R-BTAM controls every DALI driver on the same bus line through broadcast commands, so all connected drivers dim and switch together without individual addressing. This suits jobs where one zone of lights needs to move as a group rather than be controlled channel by channel. A single controller drives up to 25 DALI drivers from a 50mA output.
For an electrician, the PC155DLB-R-BTAM turns a DALI zone into a straightforward install: wire the drivers to the bus, set the DIP switches, and control the group from the PIXIE app or a momentary switch. The in-built relay can switch power to the drivers for cleaner control, and the PUSH DIM function lets a standard bell-press wall switch dim the lights. The memory function restores the last brightness after a power outage, so a space returns to its set level on its own. Commissioning runs off one set button, with an LED indicator showing status.
The PC155DLB-R-BTAM is rated IP20 and is not suitable for damp, dusty, or outdoor locations. It controls DALI-2 and DALI drivers only and will not drive non-DALI loads such as trailing-edge or leading-edge mains-dimmable fittings. Individually addressed DALI control is outside its scope, since it operates by broadcast to all drivers on the bus.
(PC155DLB-R-BTAM)
The PC155DLB-R-BTAM works with DALI-2 and DALI drivers (control gear). It controls them by broadcast on a single DALI bus line, so all connected drivers dim and switch together. A 50mA DALI output supports up to 25 compatible drivers from one controller.
Installation must be carried out by a licensed electrician. The controller wires to a 220-240V 50Hz supply and the DALI bus, with the drivers connected through the relay output for best performance. The two DIP switches are set for memory and relay behaviour during setup.
Broadcast control means one command is sent to every DALI driver on the bus at once. All connected drivers respond together, so there is no DALI addressing or programming to set up. It suits a single lighting zone that moves as a group rather than channel by channel.
The controller pairs over Bluetooth with the free PIXIE and PIXIE PLUS apps for on/off, dimming, and grouping from a phone. A momentary bell-press switch can also be wired in through the PUSH DIM function, and the in-built set button gives local control at the unit.
With the memory DIP switch set on, the controller restores the last on/off and dim level once power returns. With the memory switch off, the lights default to off when power is restored. This lets a space return to its set brightness on its own.
No. The controller drives DALI-2 and DALI drivers only. It cannot control non-DALI loads such as trailing-edge, leading-edge, or standard mains-dimmable fittings. For those, a matching mains dimmer is required instead. It is rated IP20 for dry indoor locations only.
SAL covers the controller with a 12-month warranty for both residential and commercial use, from the invoice date. The warranty applies when the product is installed by a licensed electrician and operated within its rated specifications. Return-to-base warranty applies through the place of purchase.
The SAL PC155DLB-R-BTAM is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | SAL |
| SKU | PC155DLB-R-BTAM |
| Barcode # | 9328623134737 |
| Package Weight | 0.029kg |
| TYPE | VALUE |
|---|---|
| Type | Controller |
| Brand | SAL |
| Range | PIXIE |
| Height (mm) | 145 |
| Width (mm) | 47 |
| Depth (mm) | 16 |
| IP Rating | IP20 |
| Smart App | Pixie & Pixie Plus |
| Power Input | 220-240V AC 50Hz |
| DALI Output | 50mA (Up to 25 DALI drivers) |
