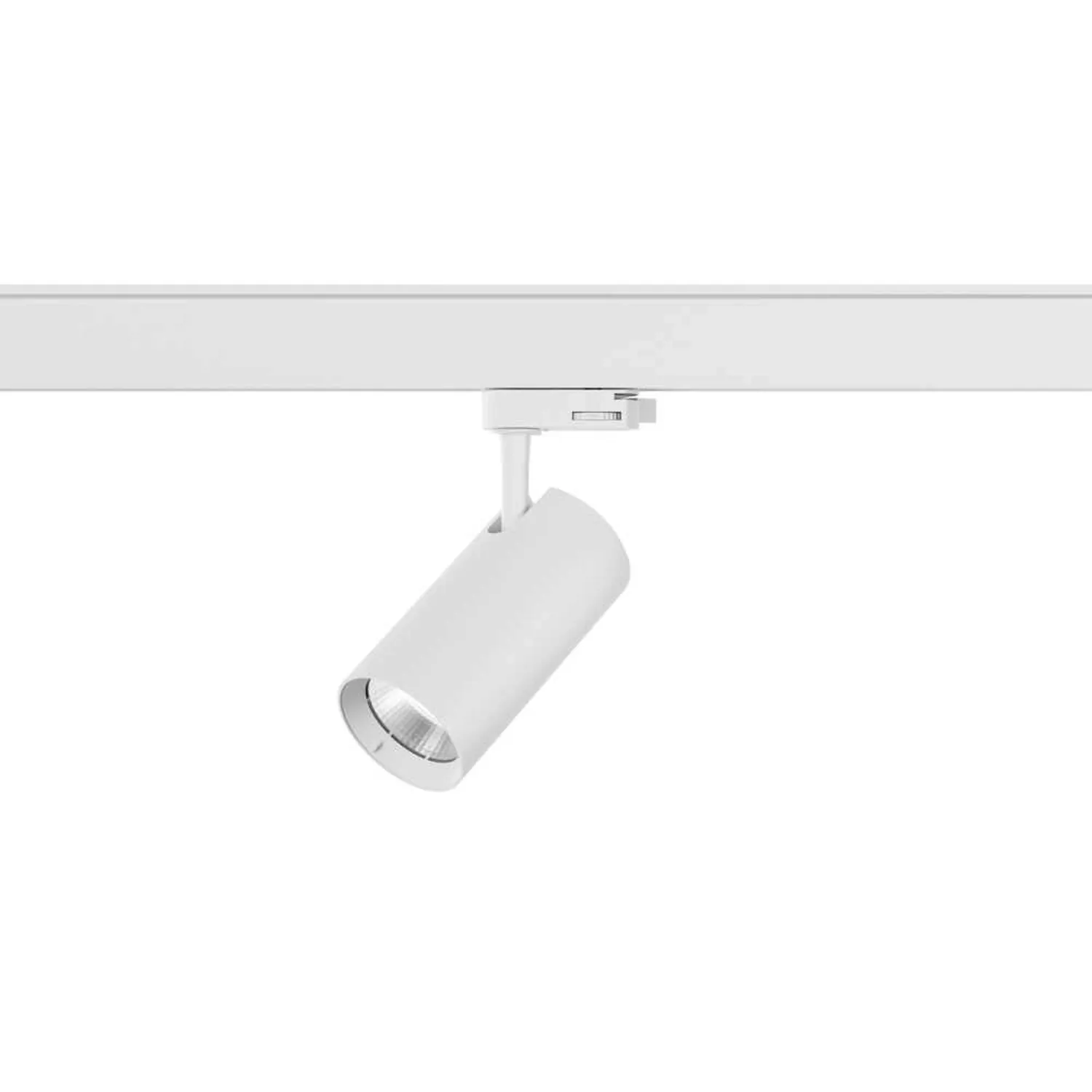

The SAL STR9017/10TC/WH is a single-circuit LED track spot rated 10W at 240V, with a 40-degree beam distribution and CRI above 80. The STR9017/10TC/WH runs at selectable colour temperatures: 3000K warm white, 4000K cool white or 5700K daylight. The white polyamide body measures 60mm wide and 125mm high, rated IP20 for dry indoor positions.
A 40-degree beam at 580 to 700 lumens lights a display run or feature wall without washing the room. Retail fit-outs and living spaces need the light aimed, with the colour temperature matched to the surrounding finishes. The STR9017/10TC/WH selects 3000K, 4000K or 5700K, so the beam colour is set to suit the room.
The driver is integral to the STR9017/10TC/WH, so nothing separate is mounted above the ceiling or along the track. Tracklight systems are designed for horizontal ceiling mount, with the track opening parallel to the floor. That keeps the fitting to flat ceiling work rather than raked or sloped installations.
The STR9017/10TC/WH is rated IP20, so it is not suitable for outdoor positions, bathrooms, laundries or anywhere exposed to water or dust. The ta25 mark caps the ambient temperature at 25 degrees C, which rules out hot roof spaces and unventilated plant rooms. Track systems are designed for horizontal ceiling mount, not for raked ceilings.
(STR9017-10TC-WH)
A 10 watt LED track spot for single circuit track, running at 240 volts. It puts out 580 to 700 lumens in a 40 degree beam, with a choice of warm white, cool white or daylight. The body is white polyamide, 60mm wide and 125mm high.
Three, all from the one head: 3000K warm white, 4000K cool white and 5700K daylight. Output moves with the setting, 580 lumens at 3000K, 700 at 4000K and 630 at 5700K. Colour rendering stays above 80 CRI on all three settings.
A trailing edge dimmer. The driver is built into the fitting and is listed for trailing edge dimming, so the dimmer on the circuit feeding the track needs to suit that type and the LED load. There is no separate driver to locate.
Single circuit track. The fitting is built as a single circuit track spot, so the track run it goes on needs to be single circuit as well. Track systems are designed for horizontal ceiling mount, with the track opening parallel to the floor.
Installation is work for a licensed electrician. Every SAL product except DIY lamps is specified for installation by a qualified electrical installer, and wiring or altering a track circuit is electrical work either way.
Three years residential and two years commercial. Residential covers domestic use on six hour switch cycles. Commercial covers any site where an ABN applies, on twelve hour cycles. Claims go back through Sparky Direct as the place of purchase, with proof of purchase and the install details.
A 60 degree beam insert is listed as an option for the fitting, along with black and white baffle rings. The spot itself runs a 40 degree beam through a polycarbonate lens. The inserts are options, not supplied with the fitting.
Anywhere wet, dusty or outdoors. The rating is IP20, which is dry indoor use only, so bathrooms, laundries and external positions are out. The ta25 mark caps ambient temperature at 25 degrees C, which rules out hot roof spaces. Track systems also suit flat ceilings, not raked ones.
The SAL STR9017/10TC/WH is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 5 Year replacement
Commercial Use: 3 Year replacement
Warranty Method: Return to Sparky Direct
| Specification | Details |
|---|---|
| Model | STR9017/30TC/DP/WH |
| Input Voltage | 240V AC |
| Wattage | 21W / 30W Selectable |
| Lumen Output | 2100 / 2400 / 2200 lm (depending on CCT) |
| CCT Options | 3000K / 4000K / 5700K (Selectable) |
| CRI | >80 |
| Beam Angle | 40° |
| Body Colour | White |
| Material | Durable Polyamide body |
| Lens | Polycarbonate, 40° beam distribution |
| Mounting | Track Mounted |
| Driver | Integral non-dimmable dual power LED driver |
| Dimming | No |
| Dimensions | 90(W) × 210(H) mm |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | SAL |
| SKU | STR9017-10TC-WH |
| Model # | STR9017/10TC/WH |
| Barcode # | 9328623126800 |
| Package Weight | 0.396kg |
| TYPE | VALUE |
|---|---|
| Type | LED Track Light |
| Brand | SAL |
| Range | Unitrek |
| Colour | White |
| Lumens (lm) | 580/700/630 |
| Light Colour (K) | 3000/4000/5700 |
| Voltage (V) | 240 |
| Wattage (W) | 240 |
| Dimmable | Yes |
| IP Rating | IP20 |
| Beam Angle (Degree) | 40 |
