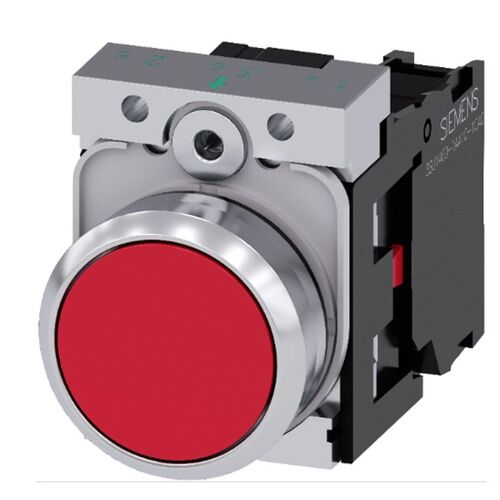

Siemens PB-M-RED | Sirius ACT Metal Round Push-button 500VAC/DC | Red
Description:
The Siemens PB-M-RED Sirius ACT Metal Round Push-Button is a premium quality industrial control device crafted to provide reliable and efficient operation in rigorous applications. Engineered for both AC and DC systems up to 500 volts and supporting a current of 10 amps, this push-button features a flat, momentary operator mechanism for quick activation. Its round head encased in a durable metal bezel and offering an operational temperature range of -25 to 70 degrees Celsius, ensures it stands up to the demands of any industrial environment.
The device is IP66, IP67, and IP69K rated, making it resistant to dust, water, and high-pressure water jets and suitable for varied industrial applications. With a mechanical service life of approximately 10 million switching cycles, the Siemens PB-M-RED promises longevity and reliability, minimizing the need for replacements and ensuring continuous operation.
Features:
FAQ:
Q: What makes the Siemens Sirius ACT push-button suitable for harsh environments?
A: Its high IP ratings and metal bezel provide exceptional protection and durability, making it ideal for harsh industrial conditions.
Q: How does the operator action of this push-button work?
A: It features a flat momentary operator action, which requires a press to activate and return to its original position once released, providing tactile feedback and precise control.
Q: Can this push-button be used in extreme temperatures?
A: Yes, it operates efficiently within a temperature range of -25 to 70 degrees Celsius, suitable for a wide range of environmental conditions.
The Siemens PB-M-RED Sirius ACT Metal Round Push-Button exemplifies engineering excellence, offering a blend of durability, reliability, and performance for industrial operations demanding the highest standards of control.
(PB-M-RED)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
| Specification | Details |
|---|---|
| Brand | Siemens |
| Vendor Product | PB-M-RED |
| Colour | Red |
| Contact Configuration | 1 Normally Opened |
| Diameter | 29.45 mm |
| Head Type | Round |
| Height | 40 mm |
| Mounting Diameter | 22.3 mm |
| Product Type | Pushbuttons Complete |
| IP Rating | IP66/67/69K/20 |
| Size | 22 mm |
| Temperature | -25 to 70 deg C |
| Terminal Connection | Screw |
| Tightening Torque | 0.8 - 0.9 N/m |
| Voltage | 500 Volt AC/DC |
| Width | 30 mm |
| Operator Action | Flat Momentary |
| Current | 10 Amp |
