Siemens | SIRIUS ACT Push-button 22mm Flat Momentary 500V 10A | Red 1 NO

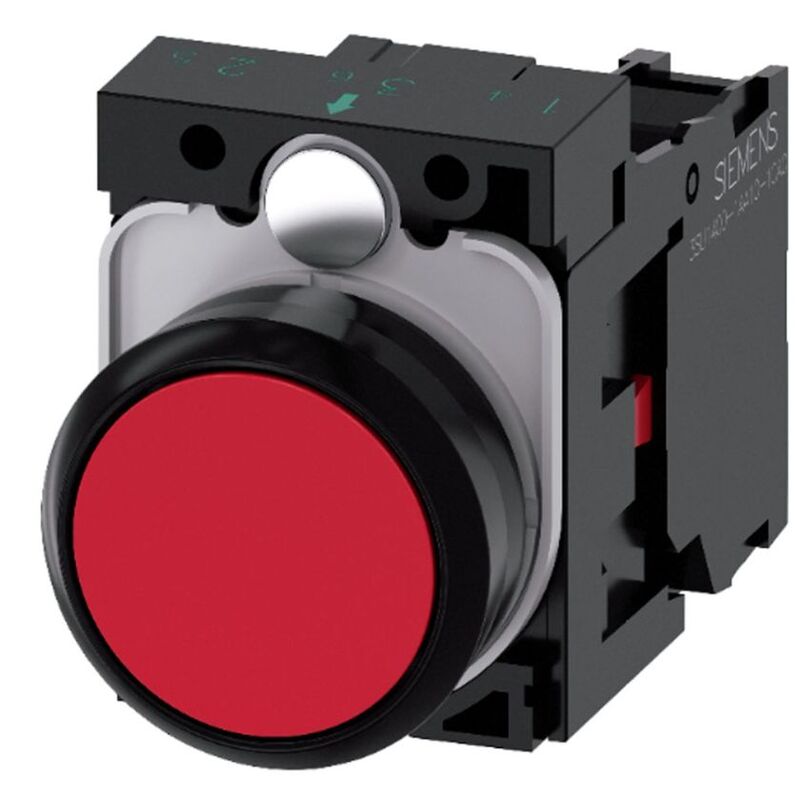

The Siemens PB-P-RED is a 22mm round push-button from the SIRIUS ACT range, with a flat red actuator and momentary action. The PB-P-RED is rated 500V AC or DC at 10A, carries one normally open contact, and terminates on screw terminals. It mounts through a 22.3mm panel cut-out and measures 29.45mm across the bezel by 40mm high.
A control panel button is operated thousands of times by people wearing gloves, in a hurry, and occasionally with the heel of a hand. Siemens rates the PB-P-RED at 10 million switching cycles mechanically and electrically. The flat actuator resists accidental operation from a passing sleeve, and the momentary action returns the contact the instant pressure releases.
Panel builders standardise on the 22mm cut-out because it is the international convention, so the PB-P-RED drops into an existing punching without retooling. Screw terminals torque to 0.8 to 0.9Nm, which is a figure worth setting a driver to rather than guessing. The unit is rated -25 to 70 degrees Celsius, covering an unconditioned plant room or an outdoor kiosk.
Features
- 22mm SIRIUS ACT — the PB-P-RED suits the 22mm panel cut-out convention, mounting through a 22.3mm hole.
- Flat momentary actuator — the red actuating element sits flat and returns as soon as pressure releases.
- 500V AC or DC — rated to 500 volts on alternating or direct current.
- 10A rated current — continuous current rating of 10 amps.
- One normally open contact — the PB-P-RED ships with a single NO contact module.
- 10 million cycles — Siemens rates mechanical and electrical endurance at 10 million switching operations.
- IP66, IP67 and IP69K front — the actuator face carries those ratings once mounted through the panel.
- IP20 rear — the terminal side is rated IP20, so the back of the button belongs inside an enclosure.
- NEMA rated — Siemens lists NEMA 1, 2, 3, 3R, 4, 4X, 12 and 13.
- Screw terminals — terminals torque to 0.8 to 0.9Nm.
- -25 to 70 degrees C — rated across an ambient range from minus 25 to 70 degrees Celsius.
- 29.45 x 30 x 40mm — the bezel measures 29.45mm diameter, 30mm wide and 40mm high, at 50 grams.
Where to use
- Control panel fascias — the PB-P-RED occupies a standard 22mm punching alongside other SIRIUS ACT devices.
- Machine stop and reset functions — red convention marks the button an operator reaches for to halt a process.
- Washdown environments — the IP69K front survives high pressure, high temperature cleaning at the panel face.
- Pump and plant control — 500V AC or DC rating covers control circuits above the usual 240V band.
- Outdoor kiosks and enclosures — the minus 25 to 70 degree range spans unconditioned exterior positions.
- Food and beverage plant — NEMA 4X and IP69K suit an area cleaned down with pressurised water.
- Retrofit into existing panels — an existing 22mm cut-out accepts the PB-P-RED without repunching the door.
The PB-P-RED is IP66, IP67 and IP69K on the front face only, once mounted through a panel. The terminal side is rated IP20, so the rear of the device must sit inside an enclosure and the button is not a standalone weatherproof switch. It carries one normally open contact, so an application needing a normally closed contact or a second circuit needs a different configuration.
