        Learn more by watching our Tesla CRM-93H/UNI | Multifunction Time Relay | AC/DC 12-240V video.

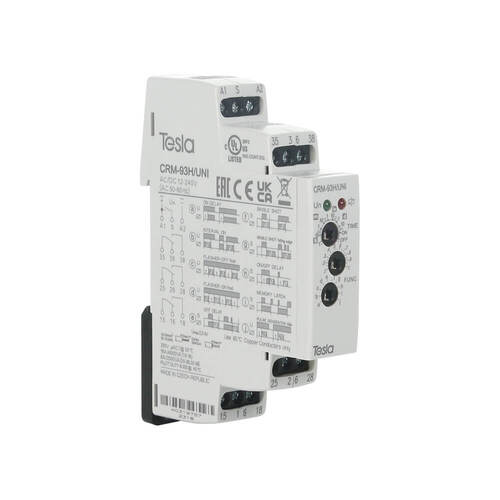

        Tesla CRM-93H/UNI | Multifunction Time Relay | AC/DC 12-240V

        Description:

        The Tesla CRM-93H/UNI Multifunction Time Relay is a versatile and robust solution designed to meet the sophisticated demands of modern households. With its universal power supply accommodating both AC and DC inputs across a wide range of 12-240V, this time relay is engineered to offer flexibility and reliability in various electrical applications. Its comprehensive timing functions, adjustable from 0.1 seconds to 10 days, ensure precision in control and operation.

        Features:

        • Universal Power Supply: Compatible with both AC and DC power sources, ensuring adaptability in diverse installations.
        • Extensive Timing Range: Offers up to 10 timing functions, with durations from 0.1 seconds to 10 days for comprehensive control options.
        • Compact DIN-Rail Mount: Its slim profile is designed for efficient use of panel space, fitting standard single module widths.
        • LED Status Indicators: Provide clear and immediate visual feedback on the relay's status for ease of monitoring.
        • High Performance in Extreme Conditions: Capable of operating in temperatures ranging from -20 to 55°C, ensuring reliability in various environments.

        FAQ:

        Q: What makes the Tesla CRM-93H/UNI suitable for electricians?
        A: Its versatility with a universal power supply, wide timing range, and slim design make it perfect for intricate electrical installations and applications.

        Q: How does the Tesla CRM-93H/UNI ensure reliable performance?
        A: With features like LED status indicators, a broad operating temperature range, and robust construction, it provides consistent and dependable operation.

        Q: Can the Tesla CRM-93H/UNI be used in both residential and commercial settings?
        A: Yes, its flexibility and durability make it ideal for a wide range of applications, from residential to commercial and industrial settings.

        The Tesla CRM-93H/UNI Multifunction Time Relay is not just a tool but a game-changer for those looking to optimize their electrical systems with precision, efficiency, and reliability.

        (CRM-93H-UNI)

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.

        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.

        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Technical Parameters
        Number of functions 10
        Supply terminals A1 - A2
        Voltage range AC/DC 12 - 240 V (AC 50 - 60 Hz)
        Burden AC 0.7 - 3 VA / DC 0.5 - 1.7 W
        Consumption (apparent/loss) AC max. 12VA / 1.9W
        Supply voltage tolerance -15 %; +10 %
        Supply indication Green LED
        Time ranges 0.1 s - 10 days
        Time setting Rotary switch and potentiometer
        Time deviation 5 % - mechanical setting
        Repeat accuracy 0.2 % - set value stability
        Temperature coefficient 0.01 % / °C, at = 20 °C
        Output
        Number of contacts 3x changeover/ SPDT (AgNi / Silver Alloy)
        Current rating 8A / AC1
        Breaking capacity 2000VA / AC1, 192W / DC
        Inrush current 10A / <3s
        Switching voltage 250V AC1 / 24V DC
        Min. breaking capacity DC 500mA
        Output indication Multifunction red LED
        Mechanical life 30,000,000
        Electrical life (AC1) 70,000
        Controlling
        Power on control input AC 0.025 - 0.2 VA / DC 0.1 - 0.7 W (UNI), AC 0.53 VA (AC 230 V), AC 0.025 - 0.2 VA (AC 12 - 240 V)
        Load between S-A2 YES
        Control. terminals A1-S
        Glow tubes connections YES
        Max. amount of glow lamps connected to controlling input UNI - glow lamps cannot connected/NO, 230 V - max.20 pcs (Measured with glow lamp 0.68mA/230V AC)
        Impulse length Min. 25 ms / Max. unlimited
        Reset time Max. 150 ms
        Other Information
        Operating temperature -20 °C to +55 °C
        Storage temperature -30 °C to +70 °C
        Electrical strength 4kV(supply-output)
        Operating position Any
        Mounting/DIN rail DIN rail EN 60715
        Protection degree IP 40 from front panel / IP 20 terminals
        Overvoltage category III
        Pollution degree 2
        Max. cable size (mm2) Solid wire max.1x 2.5 or 2x1.5/ with sleeve max. 1x2.5 (AWG 12)
        Dimensions 90 x 17.6 x 64 mm
        Weight (UNI) - 89 g (3.1 oz.); (230) - 87 g (3 oz.)
        Standards EN 61812-1, EN 61010-1

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Tesla
        SKU CRM-93H-UNI
        Barcode # 8595188112468
        Package Weight 0.100kg
        Package Width 0.100m
        Package Height 0.030m
        Package Length 0.075m
        View Datasheet
        TYPE VALUE
        Type Multifunction Relay
        Brand Tesla
