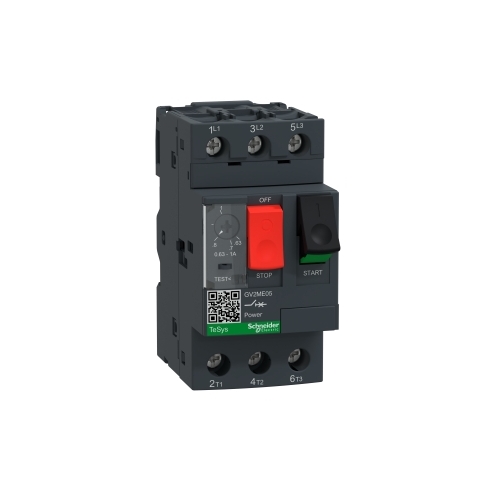

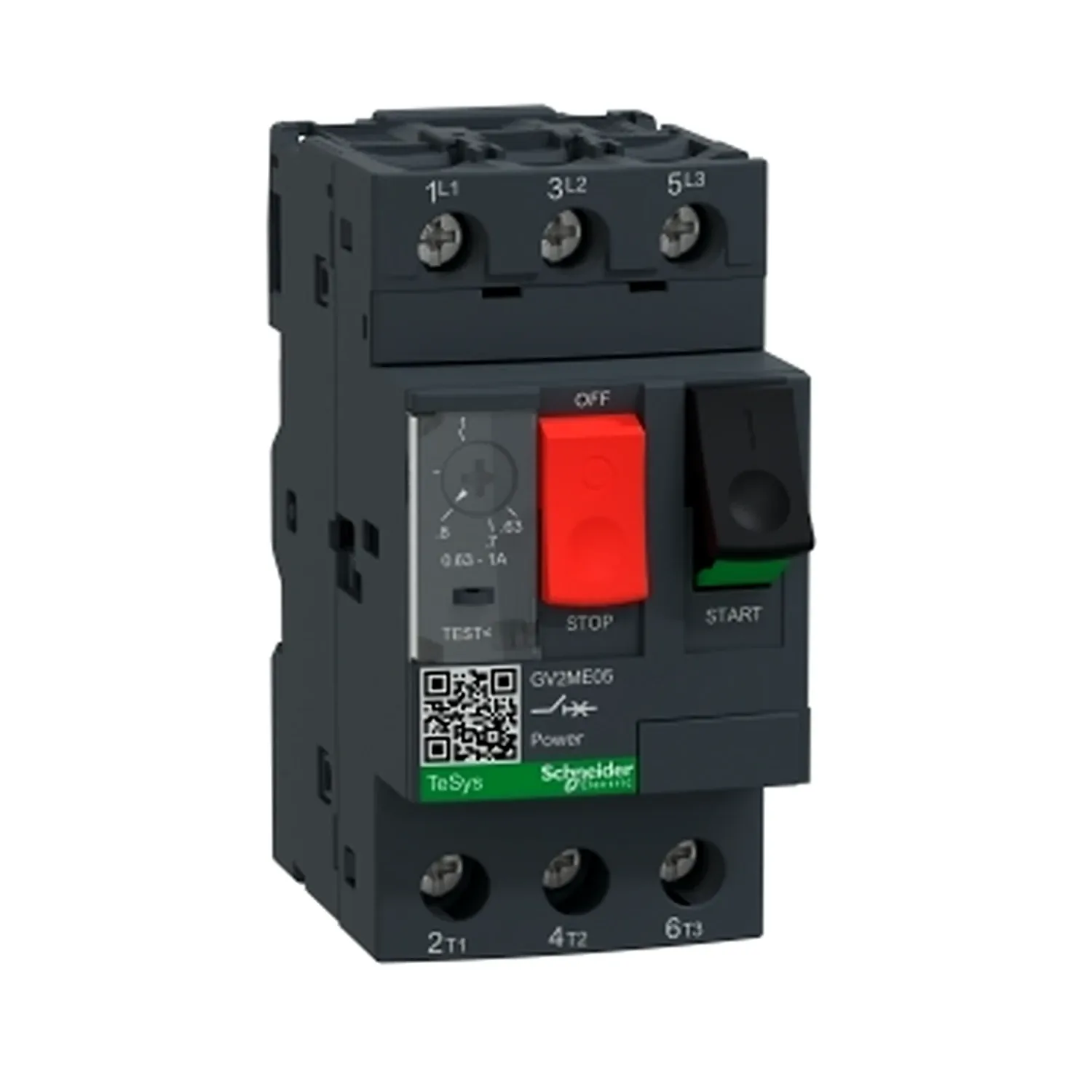

Clipsal Schneider TeSys GV2ME05 | Motor Circuit Breaker 3P | 0.63-1A | Thermal Magnetic
Learn more by watching our Clipsal Schneider TeSys GV2ME05 | Motor Circuit Breaker 3P | 0.63-1A | Thermal Magnetic video.
Description:
Experience the pinnacle of motor circuit protection with the TeSys GV2ME05. This 3-pole motor circuit breaker is engineered to provide unmatched performance, ensuring the safety and longevity of your 3-phase motor applications. Explore the remarkable features and advantages of this product:
Benefits:
Advanced Motor Protection: The TeSys GV2ME05 offers robust thermal-magnetic protection for your 3-phase motors, guaranteeing their safety and uninterrupted operation.
Adjustable Settings: With a thermal setting range of 0.63-1A, you have precise control over the level of protection for your motors.
High Breaking Capacity: Boasting an impressive breaking capacity of 100kA@400V, this circuit breaker is designed to handle heavy loads and protect against short circuits, ensuring optimal equipment safety.
Versatile Voltage Compatibility: Rated for 230V, this circuit breaker adapts to a variety of voltage requirements, making it suitable for various applications.
Energy-Efficient: With a rated operation power of 0.25 kW at 400V, the TeSys GV2ME05 optimizes energy consumption, contributing to cost savings.
Simple Installation: The screw clamp terminals make installation straightforward, ensuring a secure and reliable connection.
Durable Construction: The robust construction guarantees the circuit breaker's resilience in challenging environments and applications.
Multi-Standards Certified: Certified to meet various standards, including IEC, UL, CSA, CCC, EAC, Marine, and ATEX, ensuring compliance with global safety and performance criteria.
Green Premium Compliant: This product adheres to environmental responsibility standards and is RoHS and REACh compliant.
FAQ:
Q: What is the thermal setting range for this motor circuit breaker?
A: The TeSys GV2ME05 features a thermal setting range of 0.63-1A, allowing you to precisely adjust the protection level for your motors.
Q: What is the breaking capacity of this circuit breaker?
A: The TeSys GV2ME05 has a high breaking capacity of 100kA@400V, making it ideal for handling heavy loads and safeguarding against short circuits.
Q: Is the TeSys GV2ME05 energy-efficient?
A: Yes, with a rated operation power of 0.25 kW at 400V, this circuit breaker optimizes energy consumption, contributing to cost savings.
Q: Does it have multiple safety certifications?
A: Yes, the TeSys GV2ME05 is certified to meet various standards, including IEC, UL, CSA, CCC, EAC, Marine, and ATEX, ensuring its compliance with global safety and performance criteria.
Elevate your motor circuit protection to new heights with the Clipsal Schneider TeSys GV2ME05. With its advanced motor protection, adjustable settings, and high breaking capacity, this motor circuit breaker provides exceptional reliability and peace of mind. Choose the quality and durability of the TeSys GV2ME05 for your motor protection needs.
(GV2ME05)
The warranty starts from the Invoice Date.
Domestic Use: 18 Months
Commercial Use: 18 Months
Warranty Method: Return to Sparky Direct
| Specification | Details |
|---|---|
| Range | TeSys Deca |
| Product name | TeSys GV2 |
| Product or component type | Motor circuit breaker |
| Device application | Motor protection |
| Trip unit technology | Thermal-magnetic |
| Poles description | 3P |
| Network type | AC |
| Utilisation category | Category A conforming to IEC 60947-2 AC-3 conforming to IEC 60947-4-1 |
| Network frequency | 50/60 Hz conforming to IEC 60947-4-1 |
| Fixing mode | 35 mm symmetrical DIN rail: clipped Panel: screwed (with adaptor plate) |
| Motor power kW | 0.25 kW at 400/415 V AC 50/60 Hz 0.55 kW at 690 V AC 50/60 Hz |
| Breaking capacity | 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity | 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Control type | Push-button |
| [In] rated current | 1 A |
| Thermal protection adjustment range | 0.63…1 A conforming to IEC 60947-4-1 |
| Magnetic tripping current | 13 A |
| [Ith] conventional free air thermal current | 1 A conforming to IEC 60947-4-1 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| Phase failure sensitivity | Yes conforming to IEC 60947-4-1 |
| Suitability for isolation | Yes conforming to IEC 60947-1 § 7-1-6 |
| Power dissipation per pole | 2.5 W |
| Mechanical durability | 100,000 cycles |
| Electrical durability | 100,000 cycles for AC-3 at 415 V In |
| Rated duty | Continuous conforming to IEC 60947-4-1 |
| Tightening torque | 1.7 N.m - on screw clamp terminal |
| Width | 45 mm |
| Height | 89 mm |
| Depth | 78.5 mm |
| Net weight | 0.28 kg |
| Colour | Dark grey |
| Environment standards | EN/IEC 60947-2 EN/IEC 60947-4-1 |
| Product certifications | CCC UL CSA EAC ATEX LROS (Lloyds register of shipping) BV RINA DNV-GL UKCA |
| IK degree of protection | IK04 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Climatic withstand | Conforming to IACS E10 |
| Ambient air temperature for storage | -40…80 °C |
| Fire resistance | 960 °C conforming to IEC 60695-2-11 |
| Ambient air temperature for operation | -20…60 °C |
| Mechanical robustness | Shocks: 30 Gn for 11 ms Vibrations: 5 Gn, 5...150 Hz |
| Operating altitude | 2000 m |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Clipsal by Schneider Electric |
| SKU | GV2ME05 |
| Barcode # | 3389110343038 |
| Shipping Weight | 0.2170kg |
| Shipping Width | 0.095m |
| Shipping Height | 0.085m |
| Shipping Length | 0.045m |
| Shipping Cubic | 0.000363375m3 |
| TYPE | VALUE |
|---|---|
| Type | Circuit Breaker |
| Brand | Clipsal by Schneider Electric |
| Range | TeSys Deca contactors |
