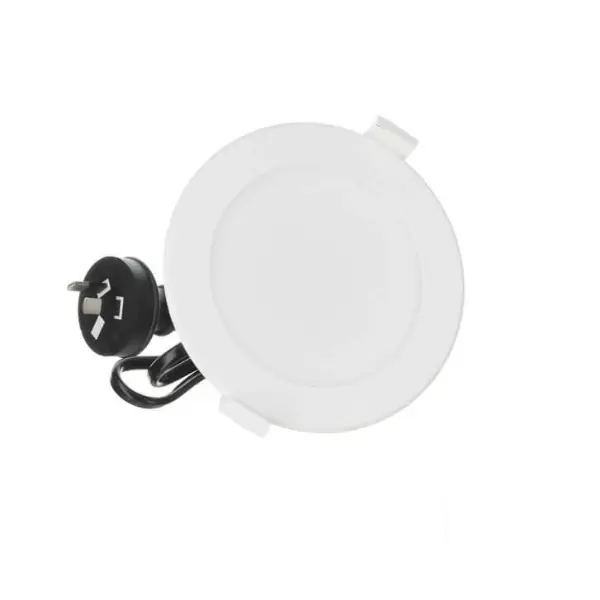

NLS downlights are LED recessed light fittings designed for both residential and commercial applications across Australia. These fixtures integrate LED chips with driver circuitry to convert 240V mains power into low-voltage DC current, producing efficient illumination with minimal heat output.
The LED chips in NLS downlights are mounted on aluminum heat sinks, which dissipate thermal energy to maintain optimal operating temperatures. This thermal management extends LED lifespan and maintains consistent light output over time. The integrated driver regulates current flow to protect the LED components from voltage fluctuations and power surges.
NLS downlights feature spring clip mounting systems that secure the fitting within ceiling cut-outs while maintaining proper clearance from insulation materials. Most models include plug-and-socket connections for simplified installation and maintenance access.
Each NLS downlight consists of LED chips, driver circuitry, heat sink assembly, reflector or diffuser optics, and spring-loaded mounting clips. The driver converts AC power to DC, while the heat sink manages thermal loads. Reflector design controls beam angle and light distribution patterns.
Higher-wattage models incorporate larger heat sinks and more robust driver components to handle increased electrical loads. Tri-colour variants include switching mechanisms that alter LED chip activation patterns to change colour temperature output.
NLS downlights provide significant advantages in energy efficiency, operational costs, and maintenance requirements compared to traditional halogen alternatives. These benefits make them practical choices for new installations and retrofit projects.
LED technology in NLS downlights consumes 60-80% less power than equivalent halogen fittings while delivering similar or higher lumen output. Lower wattage reduces electricity costs and cooling loads.
Most NLS downlights are rated between 30,000 and 50,000 hours of operation, significantly exceeding halogen lamp lifespans. Reduced replacement frequency lowers maintenance costs and disruption.
LED technology generates minimal infrared radiation compared to halogen lamps, reducing heat transfer into ceiling spaces and living areas. Lower thermal loads improve comfort and reduce cooling costs.
NLS LED downlights reach full brightness immediately upon activation, with no warm-up period. Instant response improves functionality in frequently switched areas.
While NLS downlights have higher initial purchase costs than halogen alternatives, energy savings typically recover the investment within 18-24 months. Extended lifespan and reduced maintenance further improve long-term economics.
Installation of NLS downlights requires compliance with AS/NZS 3000:2018 Wiring Rules and must be performed by licensed electricians. Proper installation ensures safety, performance, and warranty validity.
Before installation, verify ceiling clearance requirements specified in product documentation. Most NLS downlights require 100-150mm clearance above the ceiling for driver housing and heat dissipation. Check insulation type and ratings, as some installations may require IC-4 rated downlights for contact with insulation materials.
Confirm that existing wiring can support total connected load, and verify that circuit protection is appropriately rated. Plan downlight spacing to achieve target lux levels while avoiding over-illumination and glare.
Cut ceiling openings to manufacturer-specified dimensions using appropriate tools. Connect supply conductors to downlight terminals via plug connectors, ensuring proper polarity and secure connections. Position driver components within ceiling cavity, maintaining clearance from insulation and structural elements.
Insert downlight body into ceiling cut-out and release spring clips to secure fitting. Verify that trim ring sits flush with ceiling surface and that the fitting is properly retained. Test operation and adjust beam direction if applicable.
Select appropriate IP ratings based on installation environment. Standard IP20 fittings suit dry interior areas. IP44-rated downlights are required for bathroom zones outside shower enclosures. IP65 ratings are necessary for covered outdoor areas and direct shower exposure zones.
Australian electrical regulations require that all fixed electrical installations, including downlight installation and connection to mains power, must be carried out by licensed electricians. This ensures compliance with AS/NZS 3000:2018 and maintains insurance coverage validity.
NLS downlights provide versatile lighting solutions across residential and commercial environments. Proper application matching ensures optimal performance and user satisfaction.
Living Rooms and Lounges: Warm white or tri-colour NLS downlights create ambient lighting with reduced glare. Dimmable models allow adjustment for different activities and times of day. Space fittings 1.2-1.5m apart for even coverage.
Kitchens: Cool white or daylight NLS downlights enhance visibility for food preparation and cleaning tasks. Higher lumen output models suit kitchen work zones. Position fittings to minimize shadows on benchtops and cooking surfaces.
Bathrooms and Laundries: IP44-rated or higher NLS downlights meet safety requirements for wet areas. Cool white colour temperatures suit grooming and laundry tasks. Ensure compliance with AS/NZS 3000 bathroom zone requirements.
Bedrooms: Warm white NLS downlights provide comfortable ambient lighting. Dimmable models enable light level adjustment for reading and relaxation. Consider colour temperature impact on sleep patterns.
NLS downlights suit retail spaces, offices, hospitality venues, and commercial buildings where cost-effective lighting solutions are required. Tri-colour options allow colour temperature adjustment to match specific commercial requirements.
Higher-lumen models accommodate commercial ceiling heights and larger space volumes. Plan installation to meet AS/NZS 1680 workplace lighting standards where applicable.
Understanding NLS downlight specifications enables informed selection for specific applications and ensures compliance with lighting design requirements.
NLS downlights are available in three primary colour temperatures: warm white (3000K), cool white (4000K), and daylight white (5700-6500K). Warm white suits residential living spaces, cool white provides neutral illumination for bathrooms and kitchens, while daylight white offers crisp light for task-intensive areas.
Many NLS models feature tri-colour switching, allowing selection between all three colour temperatures via a switch on the fitting. This flexibility accommodates changing requirements without replacing fixtures.
NLS downlights range from 7W to 15W power consumption, producing 600-1400 lumens depending on model. Higher wattage correlates with increased lumen output and larger illuminated areas. Select wattage based on ceiling height, room size, and target illumination levels.
Efficacy ratings of 80-100 lumens per watt demonstrate efficient light conversion. Compare lumen output rather than wattage when assessing lighting performance across different products.
Common NLS downlight cut-out sizes include 70mm, 90mm, and 92mm diameters. Verify ceiling cut-out dimensions before ordering to ensure compatibility. Trim ring dimensions typically exceed cut-out sizes by 15-25mm to conceal opening edges.
Many NLS downlight models support dimming when paired with compatible LED dimmers. Verify dimmer compatibility before installation, as incompatible dimmers can cause flickering, reduced lifespan, or complete failure. Leading-edge and trailing-edge dimmer types have different compatibility requirements.
NLS downlights typically include 2-5 year warranties covering manufacturing defects and premature failure. Warranty terms vary by model, so verify coverage details before purchase. Proper installation by licensed electricians and use within specified parameters are usually required for warranty validity.
| Specification | Typical Range | Application Notes |
|---|---|---|
| Wattage | 7W - 15W | Select based on ceiling height and room size |
| Lumen Output | 600 - 1400 lm | Higher output for larger spaces or task lighting |
| Colour Temperature | 3000K - 6500K | Warm white (3000K), Cool white (4000K), Daylight (5700-6500K) |
| Cut-Out Size | 70mm - 92mm | Verify existing openings before ordering |
| IP Rating | IP20 - IP65 | Higher ratings required for wet areas |
| Rated Life | 30,000 - 50,000 hours | Approximately 15-25 years at normal household usage |
The Australian market offers several LED downlight brands at different price points and feature levels. Understanding the positioning and characteristics of NLS, Clipsal, and SAL helps match products to project requirements and budget parameters.
Value-Focused Choice
NLS downlights deliver reliable LED performance at competitive price points. With Australian standards compliance, proven track record, and comprehensive warranty coverage, NLS offers practical lighting solutions for cost-conscious residential and commercial projects.
Popular NLS models include tri-colour switching, dimmable operation, and multiple wattage options. Installation processes are straightforward, with standard spring clip mounting and plug connections.
Best-Selling Product:
★★★★★ 4.9/5.0 (226 Reviews)
NLS 20111 10W Tri-Colour LED Dimmable Downlight
Premium Quality
Clipsal downlights represent premium quality with Schneider Electric engineering and comprehensive support networks. Enhanced build quality, extended warranties, and Australian manufacturing heritage position Clipsal as the professional choice for high-specification projects.
Clipsal products include advanced features, refined aesthetics, and integration with smart home systems. Premium pricing reflects superior component quality and comprehensive testing protocols.
Best-Selling Product:
★★★★★ 5.0/5.0 (47 Reviews)
Clipsal TPDL1C3 7W Tri-Colour Dimmable LED Downlight
Mid-Tier Performance
SAL downlights balance performance and value, offering enhanced features beyond budget options while maintaining competitive pricing. With established Australian distribution and technical support, SAL provides reliable mid-tier solutions.
SAL models feature quality components, refined optical designs, and comprehensive product ranges. Pricing positions SAL between premium brands and value-focused alternatives.
Best-Selling Product:
★★★★★ 4.9/5.0 (36 Reviews)
SAL Wave S9065TCWH 8W Tri-Colour LED Dimmable Downlight
Project requirements, budget constraints, and quality expectations determine appropriate brand selection. Clipsal suits high-end residential and commercial projects where premium quality justifies higher investment. SAL provides balanced performance for projects requiring reliability without premium pricing. NLS delivers cost-effective solutions for volume installations and budget-conscious projects where Australian standards compliance and basic functionality meet requirements.
Consider total project costs including installation, maintenance, and replacement when evaluating options. While premium products have higher initial costs, extended lifespans and superior performance may provide better long-term value for certain applications.
Watch these product videos to see NLS downlight features, installation processes, and performance characteristics. These demonstrations provide practical insights for product selection and installation planning.
NLS 20111 10W Tri-Colour LED Dimmable White Downlight - Features and installation overview
NLS 20090TRI 13W Tri-Colour LED Dimmable White Downlight - Performance demonstration
NLS 20096 15W Tri-Colour LED Dimmable White Downlight - High-output model review
Real feedback from Australian electricians, builders, and homeowners who have installed NLS downlights. These verified reviews reflect actual product experiences and installation outcomes.
Trusted brands • Expert advice • Fast Australia-wide delivery • Trade pricing
Shop NLS Downlights → Get Expert Advice →Models with an appropriate IP rating can be used in bathrooms, provided zoning and installation rules are followed by a licensed electrician.
Sparky Direct supplies NLS Downlights Australia-wide, making it easy to access compliant lighting solutions with reliable local delivery.
Genuine NLS Downlights are available from Sparky Direct, offering a wide range of compliant lighting products for Australian conditions.
The number depends on room size, ceiling height, and desired brightness, with a licensed electrician able to provide accurate guidance.
They are commonly installed in existing ceilings, subject to sufficient clearance and compliance with Australian wiring rules.
Yes. NLS Downlights come with a manufacturer’s warranty, typically ranging from 1 to 5 years, depending on the model. Check the product page on the Sparky Direct website for the warranty.
LED downlights require minimal maintenance, with no globes to replace and only occasional cleaning of the trim.
Their slim, recessed design suits modern and minimalist interiors while remaining versatile for traditional spaces.
They generally offer wide beam angles for general lighting, helping create even illumination across rooms.
Replacement is common, but cut-out size, insulation clearance, and electrical compatibility should be checked by a licensed electrician.
Yes, their low wattage and high lumen efficiency can help reduce electricity consumption compared to older lighting technologies.
They produce significantly less heat than halogen downlights, improving safety and comfort, though adequate ventilation is still required.
LED NLS Downlights often have a rated lifespan of 30,000 to 50,000 hours, depending on usage and operating conditions.
NLS Downlights are LED recessed lighting products designed for residential and commercial use, offering efficient illumination, modern design, and compliance with Australian electrical standards.
Yes, their bright and focused illumination makes them suitable for kitchens, especially when using neutral or cool white colour temperatures.
They are often used in living areas, kitchens, hallways, and bedrooms due to their clean appearance and even light spread.
Cut-out sizes vary by model, commonly around 90 mm or 100 mm. Always confirm the cut-out size before replacing or installing fittings.
Certain models offer higher IP ratings, such as IP44, making them suitable for bathrooms and covered outdoor areas when installed correctly.
Some NLS Downlights feature IC or IC-4 ratings, meaning they are suitable for installation near or under insulation when installed as per manufacturer guidelines.
Most NLS Downlights are supplied with a dedicated LED driver, designed to match the fitting’s electrical specifications.
Common options include warm white (around 3000K), cool white (around 4000K), and daylight (around 5000K), suitable for different room functions.
Many NLS Downlights are dimmable when paired with compatible LED dimmers. Dimmer compatibility should always be checked prior to installation.
NLS Downlights typically range from low-wattage options around 7W up to higher outputs near 12W, depending on lumen output and application requirements.
NLS Downlights are LED-based, providing higher energy efficiency, lower heat output, and longer lifespan compared to traditional halogen downlights.
NLS Downlights are designed to align with relevant Australian and New Zealand standards such as AS/NZS 60598 for luminaires. Installation must comply with AS/NZS 3000 and be carried out by a licensed electrician.
