Learn more by watching our NLS 30145 | Speedy Surface Socket 10amp video.

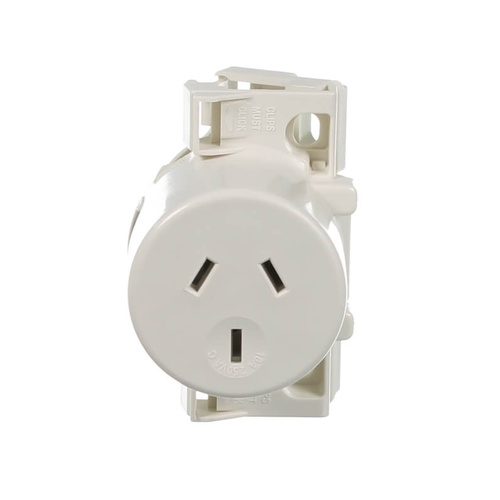

The NLS 30145 is a 3 pin fast-connect surface socket from National Light Sources, rated to 250V and 10 amp. It operates as an inline plug base: stripped conductors are positioned in the housing, which snaps closed to terminate them in the correct polarity without terminal screws. The NLS 30145 accommodates 1mm² to 2.5mm² solid or stranded conductors to AS/NZS 5000.
The NLS 30145 is the base most electricians reach for when terminating downlights, exhaust fans, and plug-in ceiling appliances in the roof space. Rather than back-wiring a screw-terminal socket, the installer strips the cable, positions the conductors, and snaps the housing closed in the correct polarity. It accommodates 1mm² to 2.5mm² solid or stranded conductors, which covers conventional lighting and 10 amp appliance circuits. Because the connection relies on full closure, the housing presses completely shut to maintain consistent continuity.
For sparkies running residential and commercial lighting jobs, the NLS 30145 is the termination that saves the most time on the truck. With no terminal screws to drive and no back-wiring, each downlight or fan base is completed in a fraction of the time a screw-terminal socket demands. The housing clamps 1mm² to 2.5mm² conductors as it closes, and the white enclosure sits discreetly where it is screwed to timber or cable-tied clear of mechanical damage. The NLS 30145 is supported by a 1-year domestic and commercial warranty through Sparky Direct.
The NLS 30145 is rated to 10 amp and 250V, so it is unsuitable for circuits drawing more than 10 amp or for conductors outside its 1mm² to 2.5mm² range. It carries no weatherproof rating, which restricts it to dry, protected indoor and ceiling-space locations.
"We have used these for our down lights and they work perfectly." — Sonya
"Works as intended, good product comparable to more expensive brands." — Clay
"Great quick connects and super easy to use." — Alex
(30145)
The NLS 30145 connects to fixed wiring, so a licensed electrician must install it. Warranty coverage is also void if a licensed electrician does not install the product. Once wired, the appliance plugs straight into the socket.
The NLS 30145 accepts 1mm² to 2.5mm² conductors, in either solid or stranded form, to AS/NZS 5000. This covers standard lighting and 10 amp circuits. Strip the cable to length and lay the conductors in before snapping the socket closed in the correct polarity.
A fast-connect socket grips the stripped conductors as the housing snaps shut, with no terminal screws to drive. A back-wired socket needs each conductor screwed into a terminal. The fast-connect method is quicker for repeat lighting and fan connections and gives a consistent termination.
The NLS 30145 works as an inline plug base for downlights, exhaust fans, ceiling fans, and other plug-in appliances rated at 10 amp. The appliance plugs straight into the three pins. It is a common choice behind downlights in the ceiling space.
Fix it by screwing it to timber through its mounting locations, or cable-tie it to keep it clear of mechanical damage. Both methods are supported. Position it where the cable run and the appliance lead can reach without strain.
It carries a 1-year warranty for domestic use and a 1-year warranty for commercial use. Warranty runs from the invoice date and is handled by return to Sparky Direct.
Keep it to dry, protected indoor and ceiling-space locations. It has no weatherproof rating, so it is not suited to outdoor or wet areas. It is rated to 10 amp and 250V, so do not use it on circuits drawing more than 10 amp.
The NLS 30145 Speedy Surface Socket 10amp (30145) is available from Sparky Direct at www.sparkydirect.com.au. Sparky Direct is a family-owned Australian electrical wholesaler serving electricians, builders and renovators since 2005, shipping Australia-wide with a 100-day money-back guarantee.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | NATIONAL LIGHT SOURCES |
| SKU | 30145 |
| Model # | 30145NLS |
| Barcode # | 9336700010362 |
| Package Weight | 0.048kg |
| TYPE | VALUE |
|---|---|
| Type | Surface Socket |
| Brand | National Light Sources |
| Colour | White |
| Rated Current (A) | 10 |
| Height (mm) | 70 |
| Width (mm) | 45 |
| Depth (mm) | 47 |
| Voltage (V) | 250 |
| Pin Number | 3 |
| Box increments (This item is sold individually) | 10 |
