        Fluke 117/323 Test Kit Combo
        $593.95 $539.95 ex. GST
        Description

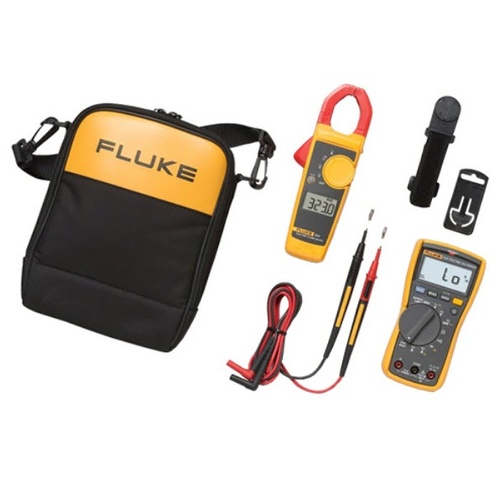

        Fluke 117/323 Test Kit Combo

        Having the right tools for the job is essential. Having them when you need them is even better. Arrive on every job site prepared with the Fluke 117/323 electricians multimeter and clamp meter combo kit. The two test tools give you the power of a versatile, rugged multimeter combined with a fast-acting, general-purpose clamp meter.

        Kit includes:

        • Fluke 117 True-RMS digital multimeter with non-contact voltage detection
        • Fluke 323 Compact Clamp Meter
        • TPAK Magnetic Metal Hanging Strap
        • TL175 Hard Point Test Lead Set
        • Soft carrying case

        The Fluke 117 digital multimeter is built to make your life easier with features like:

        • Non-contact voltage detection
        • AutoV/LoZ function
        • Min/Max/Average readings
        • Frequency measurements
        • Capacitance measurements

        In order to ensure you’re ready to go on many job sites, the 117 is certified for use in CAT III 600 V environments.

        The Fluke 323 clamp meter is a good basic troubleshooting tool for commercial and residential electricians. It includes true rms measurements, optimized ergonomics and a large display for efficient troubleshooting. The small clamp is designed to make measurements in tight cable compartments easier on you and it’s ideally suited for current measurements up to 400 A or voltage measurements up to 600 V.

        Together, the Fluke 117 Electrician’s Multimeter and 323 True-rms Clamp Meter give electricians easy to use, time-saving tools for your work.

        Features

        • Fluke 117 electrician’s multimeter
        • VoltAlert™ technology for non-contact voltage detection.
        • AutoVolt automatic ac/dc voltage selection.
        • Low input impedance: Helps prevent false readings due to ghost voltage.
        • Large white LED backlight to work in poorly lit areas.
        • True-rms for accurate measurements on non-linear loads.
        • Measures 10 A (20 A overload for 30-seconds).
        • Resistance, continuity, frequency and capacitance.
        • Min/Max/Average to record signal fluctuations.
        • Compact ergonomic design for one-handed operation.
        • CAT III 600 V safety rated.
        • Fluke 323 clamp meter
        • 400 A ac current measurement.
        • 600 V ac and dc voltage measurement.
        • True-rms ac voltage and current for accurate measurements on non-linear signals.
        • Resistance measurement up to 40 kΩ with continuity detection.
        • Slim, ergonomic design.
        • CAT IV 300V/CAT III 600 V safety rating.

        (FLUKE117-323)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Return to Sparky Direct

        Features

        Fluke 117 Digital Multimeter

        Specifications

        • Maximum voltage between any terminal and earth ground 600 V
        • Surge protection 6 kV peak per IEC 61010-1 600 V CAT III, Pollution Degree 2
        • Fuse for A input 11 A, 1000 V FAST Fuse (Fluke PN 803293)
        • Display Digital: 6,000 counts, updates 4 per second
        • Bar graph 33 segments, updates 32 per second
        • Operating Temperature -10 °C to + 50 °C
        • Storage Temperature -40 °C to + 60 °C
        • Battery type 9 volt Alkaline, NEDA 1604A/ IEC 6LR61
        • Battery Life 400 hours typical, without backlight

        Accuracy Specifications

        • DC millivolts Range 600.0 mV
        • Resolution 0.1 mV
        • Accuracy ± ([% of reading] + [counts]): 0.5% + 2
        • DC volts Range/Resolution 6.000 V / 0.001 V
        • Range/Resolution 60.00 V / 0.01 V
        • Range/Resolution 600.00 V / 0.1 V
        • Accuracy ± ([% of reading] + [counts]): 0.5% + 2
        • Auto volts Range 600.0 V
        • Resolution 0.1 V
        • Accuracy 2.0 % + 3 (dc, 45 Hz to 500 Hz) 4.0 % + 3 (500 Hz to 1 kHz)
        • AC millivolts1 true-rms Range 600.0 mV
        • Resolution 0.1 mV
        • Accuracy 1.0 % + 3 (dc, 45 Hz to 500 Hz) 2.0 % + 3 (500 Hz to 1 kHz)
        • AC volts1 true-rms Range/Resolution 6.000 V / 0.001 V
        • Range/Resolution 60.00 V / 0.01 V
        • Range/Resolution 600.0 V / 0.1 V
        • Accuracy 1.0 % + 3 (dc, 45 Hz to 500 Hz) 2.0 % + 3 (500 Hz to 1 kHz)
        • Continuity Range 600 Ω
        • Resolution 1 Ω
        • Accuracy Beeper on < 20 Ω, off > 250 Ω; detects opens or shorts of 500 μs or longer.
        • Ohms Range/Resolution 600.0 Ω / 0.1 Ω
        • Range/Resolution 6.000 kΩ / 0.001 kΩ
        • Range/Resolution 60.00 kΩ / 0.01 kΩ
        • Range/Resolution 600.0 kΩ / 0.1 kΩ
        • Range/Resolution 6.000 MΩ / 0.001 MΩ
        • Accuracy 0.9 % + 1
        • Range/Resolution 40.00 MΩ / 0.01 MΩ
        • Accuracy 5 % + 2
        • Diode Test Range/Resolution 2.000 V / 0.001 V
        • Accuracy 0.9% + 2
        • Capacitance Range/Resolution 1000 nF / 1 nF
        • Range/Resolution 10.00 μF / 0.01 μF
        • Range/Resolution 100.0 μF / 0.1 μF
        • Range/Resolution 9999 μF / 1 μF
        • Range/Resolution 100 μF to 1000 μF
        • Accuracy 1.9% + 2
        • Range/Resolution > 1000 μF
        • Accuracy 5% + 20%
        • LoZ capacitance Range 1 nF to 500 μF
        • Accuracy 10% + 2 typical
        • AC amps true-rms (45 Hz to 500 Hz) Range/Resolution 6.000 A / 0.001 A
        • Range/Resolution 10.00 A / 0.01 A
        • Accuracy 1.5% + 3
        • 20 A continuous overload for 30 seconds max
        • DC amps Range/Resolution 6.000 A / 0.001 A
        • Range/Resolution 10.00 A / 0.01 A
        • Accuracy 1.0% + 3
        • 20 A continuous overload for 30 seconds max
        • Hz (V or A input)2 Range/Resolution 99.99 Hz / 0.01 Hz
        • Range/Resolution 999.99 Hz / 0.1 Hz
        • Range/Resolution 9.999 Hz / 0.001 Hz
        • Range/Resolution 50.00 Hz / 0.01 Hz
        • Accuracy 0.1% + 2

        Notes:

        1) All ac voltage ranges except Auto-V/LoZ are specified from 1 % to 100 % of range. Auto-V/LoZ is specified from 0.0 V.

        2) Temperature uncertainty (accuracy) does not include the error of the thermocouple probe.

        3) Frequency is ac coupled, 5 Hz to 50 kHz for ac voltage. Frequency is dc coupled, 45 Hz to 5 kHz for ac current.

        4) Temperature Range/Resolution: -40 °F to 752 °F / 0.2 °F

        Mechanical & General Specifications

        • Size 167 x 84 x 46 mm (6.57" x 3.31" x 1.82")
        • Weight 550 g
        • Warranty 3 years

        Fluke 323 True-rms Clamp Meter

        Specifications

        • AC current Range 400.0 A
        • Accuracy 2 % ± 5 digits
        • (45 Hz to 65 Hz)
        • 2.5 % ± 5 digits
        • (65 Hz to 400 Hz)
        • AC voltage Range 600.0 V
        • Accuracy 1.5 % ± 5 digits
        • DC voltage Range 600.0 V
        • Accuracy 1.0 % ± 5 digits
        • Resistance Range 400.0 Ω/ 4000 Ω
        • Accuracy 1.0 % ± 5 digits
        • Continuity ≤ 70 Ω
        • AC response True-rms
        • Data hold Yes
        • Size H x W x D (mm) 207 x 75 x 34
        • Max wire diameter 30 mm (600 MCM)
        • Weight 265 g
        • Category rating CAT III 600 V
        • CAT IV 300 V
        • Warranty Two-year
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Fluke
        SKU FLUKE117-323
        Barcode # 095969659222
        Shipping Weight 1.3800kg
        Shipping Width 0.230m
        Shipping Height 0.090m
        Shipping Length 0.305m
        Shipping Cubic 0.006313000m3
