Learn more by watching our Fluke 117/323 Test Kit Combo video.

Fluke 117/323 Test Kit Combo

Having the right tools for the job is essential. Having them when you need them is even better. Arrive on every job site prepared with the Fluke 117/323 electricians multimeter and clamp meter combo kit. The two test tools give you the power of a versatile, rugged multimeter combined with a fast-acting, general-purpose clamp meter.

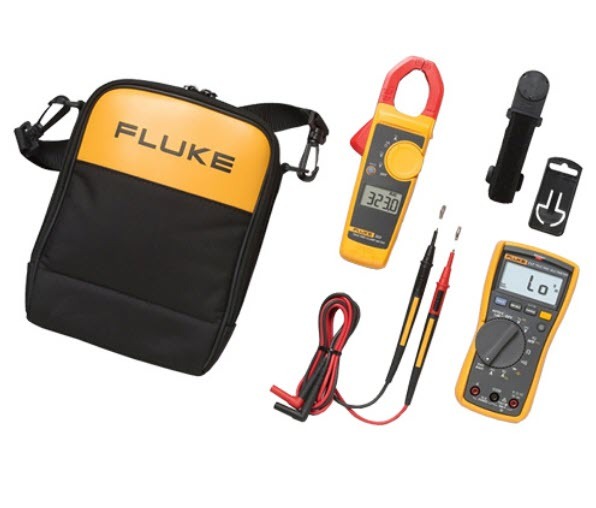

Kit includes:

Fluke 117 True-RMS digital multimeter with non-contact voltage detection
Fluke 323 Compact Clamp Meter
TPAK Magnetic Metal Hanging Strap
TL175 Hard Point Test Lead Set
Soft carrying case

The Fluke 117 digital multimeter is built to make your life easier with features like:

Non-contact voltage detection
AutoV/LoZ function
Min/Max/Average readings
Frequency measurements
Capacitance measurements

In order to ensure you’re ready to go on many job sites, the 117 is certified for use in CAT III 600 V environments.

The Fluke 323 clamp meter is a good basic troubleshooting tool for commercial and residential electricians. It includes true rms measurements, optimized ergonomics and a large display for efficient troubleshooting. The small clamp is designed to make measurements in tight cable compartments easier on you and it’s ideally suited for current measurements up to 400 A or voltage measurements up to 600 V.

Together, the Fluke 117 Electrician’s Multimeter and 323 True-rms Clamp Meter give electricians easy to use, time-saving tools for your work.

Features

Fluke 117 electrician’s multimeter
VoltAlert™ technology for non-contact voltage detection.
AutoVolt automatic ac/dc voltage selection.
Low input impedance: Helps prevent false readings due to ghost voltage.
Large white LED backlight to work in poorly lit areas.
True-rms for accurate measurements on non-linear loads.
Measures 10 A (20 A overload for 30-seconds).
Resistance, continuity, frequency and capacitance.
Min/Max/Average to record signal fluctuations.
Compact ergonomic design for one-handed operation.
CAT III 600 V safety rated.
Fluke 323 clamp meter
400 A ac current measurement.
600 V ac and dc voltage measurement.
True-rms ac voltage and current for accurate measurements on non-linear signals.
Resistance measurement up to 40 kΩ with continuity detection.
Slim, ergonomic design.
CAT IV 300V/CAT III 600 V safety rating.

(FLUKE117-323)

100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

Items must be unused, with all parts, accessories, and original packaging.
We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
Proof of purchase is required.
Return shipping is the responsibility of the customer.

If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.

All products come with a manufacturer’s or supplier’s warranty

Warranty starts from the Invoice Date
Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
Sparky Direct isn’t responsible for losses caused by product failure.
Warranties are void if products aren’t installed by a licensed electrician.

Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.

Sparky Direct will pay for return shipping via an emailed return label.
If the fault is confirmed, we will send you a replacement item or provide a refund.

Exclusions
We can’t accept returns for:

Items that have been installed, modified, or used
Clearance, End of life, Discontinued, or special order items (unless faulty)
All PPE Items
Goods returned without original packaging or proof of purchase

How to Request a Return

Contact our customer service team with your order number.
Confirm it’s eligible under our return or warranty policy.
Pack the item securely and return it using a trackable service.
Once we receive and inspect it, we’ll process your refund or replacement.

Warranty starts from Invoice Date

Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Return to Sparky Direct

Fluke 117 Digital Multimeter

Specifications

Maximum voltage between any terminal and earth ground 600 V
Surge protection 6 kV peak per IEC 61010-1 600 V CAT III, Pollution Degree 2
Fuse for A input 11 A, 1000 V FAST Fuse (Fluke PN 803293)
Display Digital: 6,000 counts, updates 4 per second
Bar graph 33 segments, updates 32 per second
Operating Temperature -10 °C to + 50 °C
Storage Temperature -40 °C to + 60 °C
Battery type 9 volt Alkaline, NEDA 1604A/ IEC 6LR61
Battery Life 400 hours typical, without backlight

Accuracy Specifications

DC millivolts Range 600.0 mV
Resolution 0.1 mV
Accuracy ± ([% of reading] + [counts]): 0.5% + 2
DC volts Range/Resolution 6.000 V / 0.001 V
Range/Resolution 60.00 V / 0.01 V
Range/Resolution 600.00 V / 0.1 V
Accuracy ± ([% of reading] + [counts]): 0.5% + 2
Auto volts Range 600.0 V
Resolution 0.1 V
Accuracy 2.0 % + 3 (dc, 45 Hz to 500 Hz) 4.0 % + 3 (500 Hz to 1 kHz)
AC millivolts1 true-rms Range 600.0 mV
Resolution 0.1 mV
Accuracy 1.0 % + 3 (dc, 45 Hz to 500 Hz) 2.0 % + 3 (500 Hz to 1 kHz)
AC volts1 true-rms Range/Resolution 6.000 V / 0.001 V
Range/Resolution 60.00 V / 0.01 V
Range/Resolution 600.0 V / 0.1 V
Accuracy 1.0 % + 3 (dc, 45 Hz to 500 Hz) 2.0 % + 3 (500 Hz to 1 kHz)
Continuity Range 600 Ω
Resolution 1 Ω
Accuracy Beeper on < 20 Ω, off > 250 Ω; detects opens or shorts of 500 μs or longer.
Ohms Range/Resolution 600.0 Ω / 0.1 Ω
Range/Resolution 6.000 kΩ / 0.001 kΩ
Range/Resolution 60.00 kΩ / 0.01 kΩ
Range/Resolution 600.0 kΩ / 0.1 kΩ
Range/Resolution 6.000 MΩ / 0.001 MΩ
Accuracy 0.9 % + 1
Range/Resolution 40.00 MΩ / 0.01 MΩ
Accuracy 5 % + 2
Diode Test Range/Resolution 2.000 V / 0.001 V
Accuracy 0.9% + 2
Capacitance Range/Resolution 1000 nF / 1 nF
Range/Resolution 10.00 μF / 0.01 μF
Range/Resolution 100.0 μF / 0.1 μF
Range/Resolution 9999 μF / 1 μF
Range/Resolution 100 μF to 1000 μF
Accuracy 1.9% + 2
Range/Resolution > 1000 μF
Accuracy 5% + 20%
LoZ capacitance Range 1 nF to 500 μF
Accuracy 10% + 2 typical
AC amps true-rms (45 Hz to 500 Hz) Range/Resolution 6.000 A / 0.001 A
Range/Resolution 10.00 A / 0.01 A
Accuracy 1.5% + 3
20 A continuous overload for 30 seconds max
DC amps Range/Resolution 6.000 A / 0.001 A
Range/Resolution 10.00 A / 0.01 A
Accuracy 1.0% + 3
20 A continuous overload for 30 seconds max
Hz (V or A input)2 Range/Resolution 99.99 Hz / 0.01 Hz
Range/Resolution 999.99 Hz / 0.1 Hz
Range/Resolution 9.999 Hz / 0.001 Hz
Range/Resolution 50.00 Hz / 0.01 Hz
Accuracy 0.1% + 2

Notes:

1) All ac voltage ranges except Auto-V/LoZ are specified from 1 % to 100 % of range. Auto-V/LoZ is specified from 0.0 V.

2) Temperature uncertainty (accuracy) does not include the error of the thermocouple probe.

3) Frequency is ac coupled, 5 Hz to 50 kHz for ac voltage. Frequency is dc coupled, 45 Hz to 5 kHz for ac current.

4) Temperature Range/Resolution: -40 °F to 752 °F / 0.2 °F

Mechanical & General Specifications

Size 167 x 84 x 46 mm (6.57" x 3.31" x 1.82")
Weight 550 g
Warranty 3 years

Fluke 323 True-rms Clamp Meter

Specifications

AC current Range 400.0 A
Accuracy 2 % ± 5 digits
(45 Hz to 65 Hz)
2.5 % ± 5 digits
(65 Hz to 400 Hz)
AC voltage Range 600.0 V
Accuracy 1.5 % ± 5 digits
DC voltage Range 600.0 V
Accuracy 1.0 % ± 5 digits
Resistance Range 400.0 Ω/ 4000 Ω
Accuracy 1.0 % ± 5 digits
Continuity ≤ 70 Ω
AC response True-rms
Data hold Yes
Size H x W x D (mm) 207 x 75 x 34
Max wire diameter 30 mm (600 MCM)
Weight 265 g
Category rating CAT III 600 V
CAT IV 300 V
Warranty Two-year

These specifications and characteristics outline physical, mechanical, electrical details.

Brand	Fluke
SKU	FLUKE117-323
Barcode #	095969659222
Package Weight	1.357kg
Package Width	0.092m
Package Height	0.309m
Package Length	0.275m
