Learn more by watching our 6.0mm Twin & Earth Flat Cable | Pvc / Pvc | 7-104-2ERB | 50mtr Cut video.

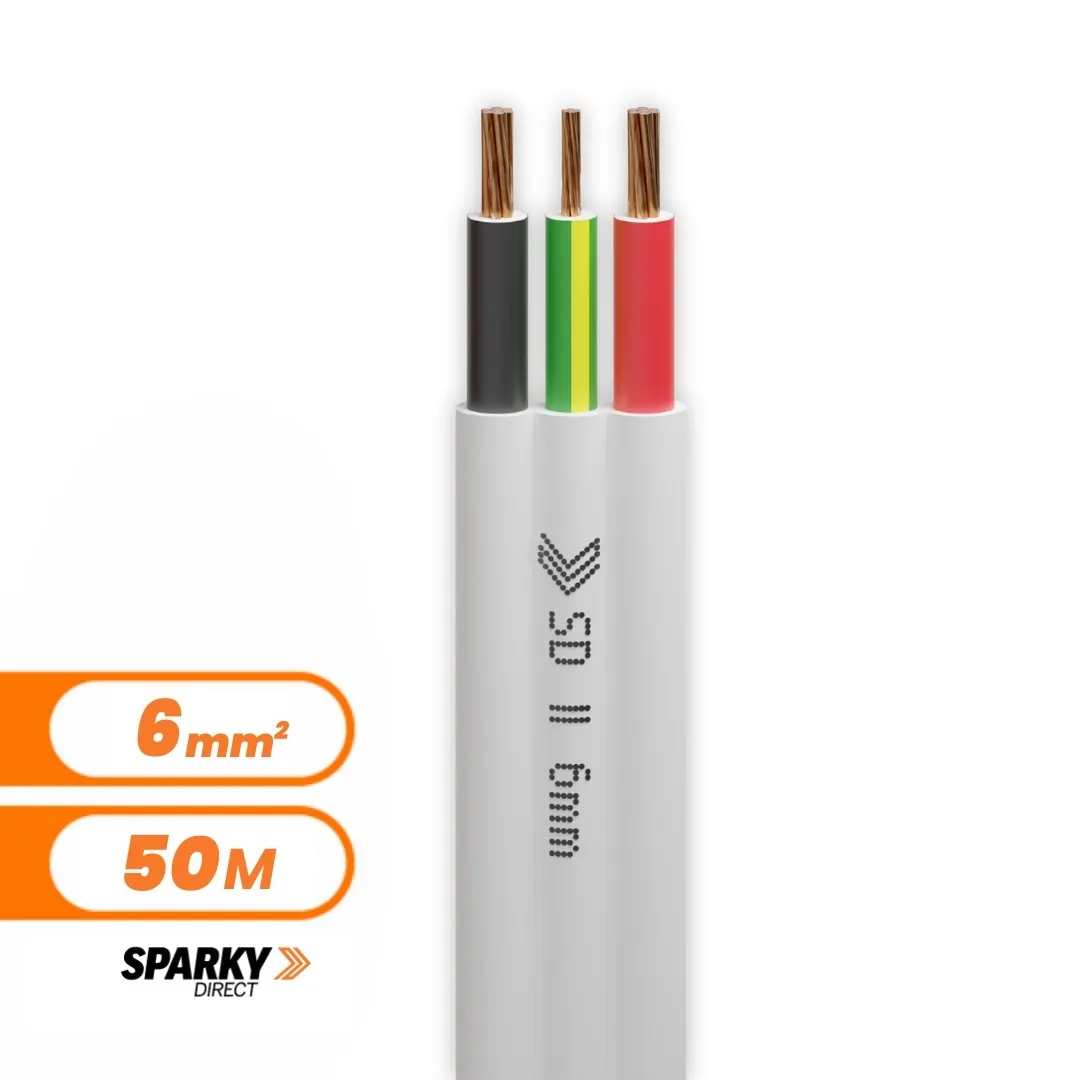

The Electra-Cables 6.0mm Twin & Earth Flat Cable is a three-conductor fixed wiring cable rated 450/750V. The 7-104-2ERB is supplied on a 50-metre cut length with plain annealed copper conductors, PVC V90 insulation, and a white PVC easy-tear sheath. The 6.0mm cable is the standard choice for dedicated appliance loads such as hot water systems, air conditioning units, and induction cooktops in domestic, commercial, and industrial installations not subject to mechanical damage.
Large fixed loads demand a cable that carries current reliably without voltage drop over distance. The 6.0mm T/E cable sits at the upper end of typical domestic wiring: after 2.5mm handles general power points and 4mm covers standalone appliances, the 6.0mm is where licensed electricians spec for the heaviest circuits. The 50-metre cut length is sized for long runs — hot water tanks located remotely from the switchboard, air conditioning outdoor units, or extended circuits in renovation work. Sparky Direct supplies multiple brands (Electra, Prysmian, Apec, Advance Cables, Olex) to the same SKU, all certified to AS/NZS 5000.1 with RCM marking, so availability is consistent and price stays competitive across market swings.
The 6.0mm 7-104-2ERB wires fixed loads with plain annealed copper conductors, not copper-clad substitutes, meeting AS/NZS 1125 stranding for clarity and reliability on the job site. PVC V90 insulation is the australian and new zealand standard thermal rating for fixed wiring in domestic and commercial buildings. The three-core layout (red active, black neutral, green/yellow earth) is colour-coded to AS standard, making it straightforward to identify polarity and earth during installation and later maintenance. The easy-tear white sheath simplifies on-site prep: the outer sheath splits lengthwise without tools, leaving the three inner cores ready to terminate. For circuits running against polystyrene or polyurethane foam insulation, avoid this standard PVC sheath and switch to the purple non-migratory variant instead — standard PVC plasticiser leaches over time in contact with foam.
The 6.0mm cable is rated to 450/750V, which covers all standard Australian domestic and commercial switchboard voltages. Voltage drop calculations are mandatory on long runs: AS/NZS 3000 sets a 5 percent total limit from the point of supply to the furthest outlet. A sparky pulling a 50m run of 6mm to a remote unit should confirm that the upstream MCB and RCD protection are matched to the cable size and circuit load. The 75°C normal operating temperature is consistent with PVC V90 construction; sustained overheating signals either an undersized cable for the load, or a protection device that isn't tripping when it should.
The 6.0mm 7-104-2ERB is not suitable for outdoor, exposed damp, or mechanically damaged locations. Do not use this cable in bathrooms, wet areas, splash zones, or any location subject to rain or water ingress unless the cable is run inside conduit or protective duct. For installations in contact with polystyrene or polyurethane foam insulation, switch to the non-migratory purple variant to prevent plasticiser leaching and insulation degradation over time.
Verified Sparky Direct customer reviews: 6.0mm Twin & Earth Flat Cable (7-104-2ERB)
"I had no issues with this product." — Andrew
(60TE50)
The 6.0mm 7-104-2ERB is designed for dedicated appliance loads such as hot water systems, air conditioning units, and induction cooktops. It carries sustained current on 32–50A circuits (depending on installation method and protection device) and is rated to 450/750V for all Australian domestic and commercial switchboard voltages.
Installation of the 6.0mm cable must be carried out by a licensed electrician. The 7-104-2ERB is fixed wiring intended for professional installation under AS/NZS 3000. Termination on a switchboard, MCB, RCD, or dedicated circuit requires qualified expertise.
No, the 6.0mm 7-104-2ERB is not rated for outdoor, damp exposed, or splash locations. It is designed for interior fixed wiring in unenclosed, closed-in conduit, buried direct, or underground ducts in installations not subject to mechanical damage. For external or wet areas, a dedicated weatherproof cable type is required.
The 6.0mm 7-104-2ERB carries larger current than 4mm cable and is specified for heavier loads and longer runs where voltage drop is a concern. Use 4mm for dedicated single appliances (oven, hot water) over moderate distances. Use 6mm for large fixed loads, remote circuits, or installations where voltage drop calculations require larger conductor area.
The 7-104-2ERB contains three conductors: a red-insulated active conductor, a black-insulated neutral conductor, and a bare copper earth conductor, all enclosed in a white PVC sheath rated to 75°C normal operating temperature. The sheath splits lengthwise without requiring a knife, exposing the three cores ready for termination.
Yes, the 7-104-2ERB carries a one-year manufacturer warranty covering defects in material and workmanship. The warranty applies to domestic and commercial installations. Some manufacturers offer in-home warranty for certain applications—contact Sparky Direct to confirm your product's warranty scope before installation.
The 6.0mm 7-104-2ERB is rated 450/750V, which covers all standard Australian domestic and commercial switchboard voltages. No voltage derate is required for normal fixed wiring installations within Australia.
The Electra-Cables 7-104-2ERB is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Electra-Cables |
| SKU | 60TE50 |
| Package Weight | 11.450kg |
| TYPE | VALUE |
|---|---|
| Type | Cable |
| Brand | Electra-Cables |
| Voltage | 450/750 V |
| Insulation | PVC V90 |
| Cable Core Colour | Red,Black Green/Yellow |
| Sheath | White |
| Sheath | 3V-90 Easy-tear White |
| Cable Size (mm) Squared | 6.0 |
| Normal Operating Temperature | 75°C |
| Cable Length (m) | 50 |
| Conductor | Plain annealed copper (AS/NZS 1125) |
