        Clipsal Airflow 7007AN | Window Exhaust Fan, Axial, 150mm | Pull-Cord Switch
        $284.90 $259.00 ex. GST
        Description

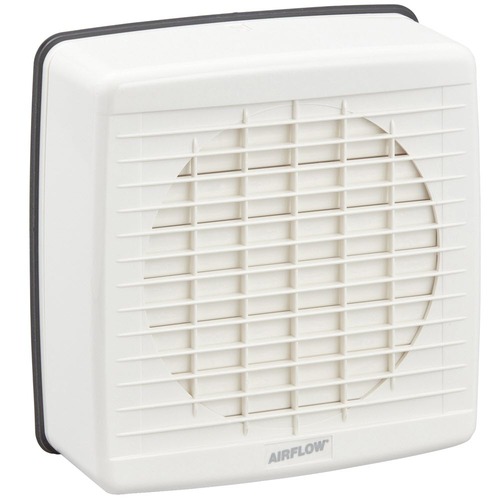

        Clipsal Airflow 7007AN | Window Exhaust Fan, Axial, 150mm | Pull-Cord Switch

        Window Mounted Exhaust Fans, 150MM Window Exhaust Fans, MaxAir Window, pull cord switch and shutters, BCA, 45W, IPX4, 213mm diameter cut out, 360m³/hr.

        • MaxAir exhaust fans are new products that offer high-performance air extraction with whisper-quiet operation.
        • They are attractively styled with silent operating shutters in a white gloss finish, which are also very easy to clean.
        • Most of the MaxAir range can be easily retrofitted into existing cut-out holes. One person easily carries out all installations, a great time-saving feature.
        • Window seals are provided to prevent water entry and eliminate window vibration.
        • Fans are designed to fit windows from 4 to 32mm and are configured to allow flex and plug to be fitted, or they can be hard-wired.

        Features

        • BCA axial fan
        • High-performance air movement
        • Low noise level
        • One person installation
        • 245 x 245 mm overall intake
        • 4 - 32 mm window depth
        • 172 mm diameter duct
        • 213 mm diameter hole
        • Pull-cord shutter operation
        • 1 speed
        • Sleeve bearing motor

        (7007AN)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 3 Year
        Commercial Use: 3 Year
        Warranty Method: Clipsal in home warranty

        Features
        Range Airflow
        Product brand Clipsal
        Product or component type Exhaust fan
        Product destination Window
        Main colour tint White
        Colour tint White
        Provided equipment Fan 245 mm 245 mm 200 mm
        [Ue] rated operational voltage 230 V AC 50 Hz
        Material ABS (acrylonitrile butadiene-styrene)
        Air flow 360 m3/h
        Diameter 148 mm impeller:
        Power consumption in W 45 W
        [In] rated current 0.27 A full load
        Cut-out dimensions 213 mm diameter
        Motor type Sleeve bearing
        Number of blades 7
        Noise level 50 dB
        Fan type Axial
        IP degree of protection IPx4
        Warranty 3 Years
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU 7007AN
        Barcode # 3606486373989
        Shipping Weight 2.2800kg
        Shipping Width 0.250m
        Shipping Height 0.204m
        Shipping Length 0.145m
        Shipping Cubic 0.007395000m3
        TYPE VALUE
        Type Exhaust Fan
