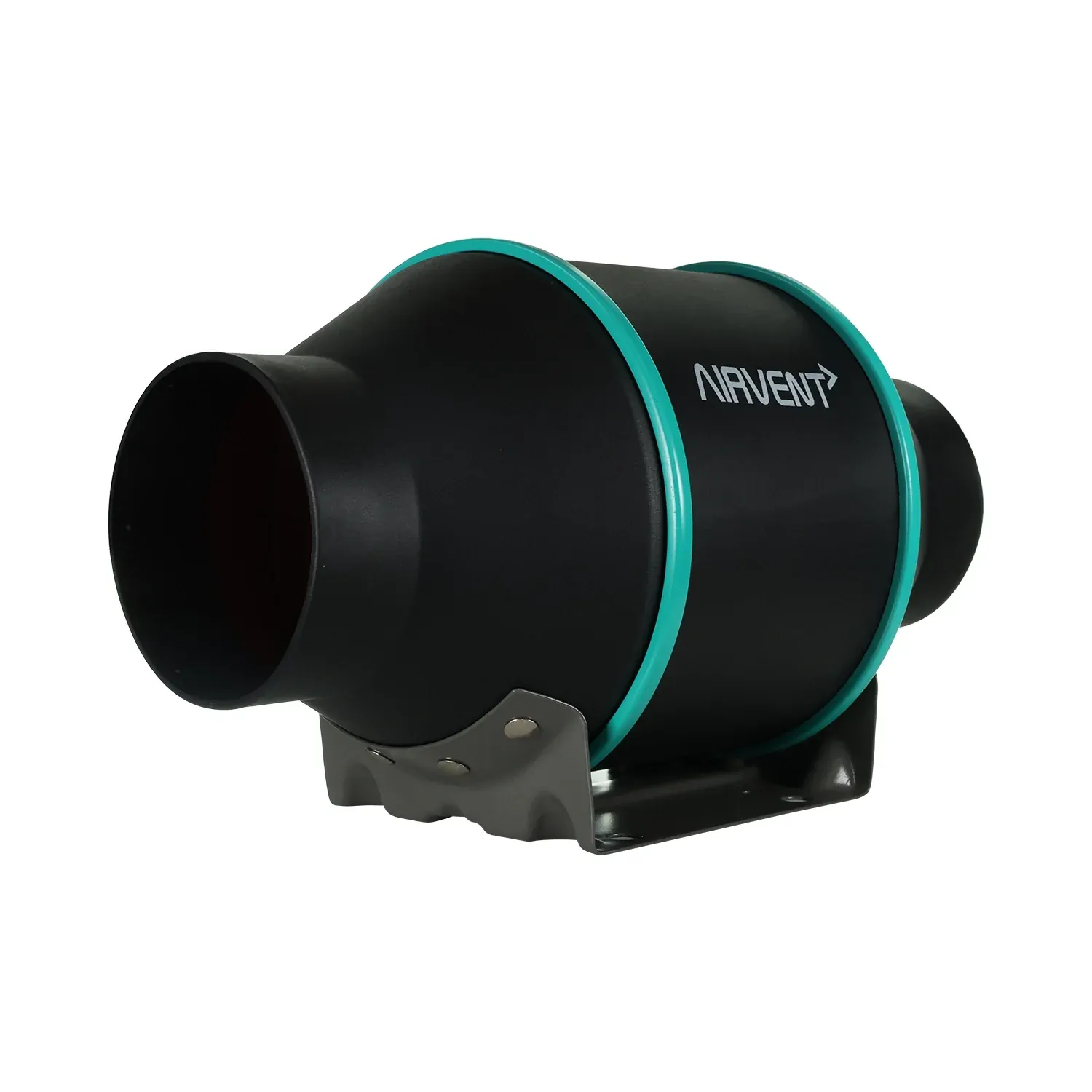

The Airvent ECIF35-100 is a 100mm inline mixed flow fan with an EC motor rated 40W, running on 240V at 0.28A. It is rated at 112 litres per second, or 403 cubic metres per hour, against 78 Pa of static pressure. The ECIF35-100 turns at 2298 RPM and uses a mixed flow impeller, combining axial and centrifugal characteristics. It arrives with a 1.2 metre lead and a three-pin plug fitted.
A 100mm run serving a single wet area rarely requires the output of a 150mm fan, and the smaller body occupies a ceiling space a larger unit cannot. The ECIF35-100 is rated at 112 L/s against 78 Pa, representing a duty point that accommodates standard domestic extraction on 100mm ducting. Sound pressure measures 39 dBA at the inlet and 38 dBA at the outlet, both at 3 metres. The impeller achieves 70.9 percent total efficiency at that operating condition.
The 0-10V control Sparky Direct lists for this model establishes potential for building management integration. Sigrist's technical data specifies control through an external potentiometer and does not detail a 0-10V input, so confirm the interface before committing the fan to a managed schedule. At 1.6kg and 303mm long the body accommodates shallow ceiling cavities where a larger unit cannot be positioned.
The ECIF35-100 is an in-duct fan and does not mount at the ceiling or wall face, so ducting, a grille, and a terminal are all required. The listing describes 0-10V control while the technical data specifies an external potentiometer, so confirm the control method before designing the fan into a managed system. A run carrying more resistance than the rated 78 Pa delivers less than 112 L/s.
(ECIF35-100)
It is used to move air through ducting, helping extract or transfer air between rooms.
In ceiling spaces or duct runs for bathrooms, laundries, kitchens or air transfer setups.
It sits in the duct, not the ceiling, so it can move air further and run quieter in the room.
Yes. The mixed flow design helps maintain airflow over distance better than basic fans.
It lets you adjust fan speed and airflow, or connect it to control systems like BMS.
Yes. Sparky Direct stocks the Airvent ECIF35-100 with fast dispatch and delivery across Australia.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Return to Sparky Direct
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Airvent |
| SKU | ECIF35-100 |
| Model # | ECIF35-100 |
| Barcode # | 0744109912580 |
| Package Weight | 2.200kg |
| TYPE | VALUE |
|---|---|
| Type | Inline Fan |
| Brand | Airvent |
| Rated Current (A) | 0.28 |
| Height (mm) | 187 |
| Width (mm) | 203 |
| Length (mm) | 303 |
| Mounting | Inline |
| Voltage (V) | 240 |
| Diameter (mm) | 100 |
| Fan Wattage (W) | 40 |
