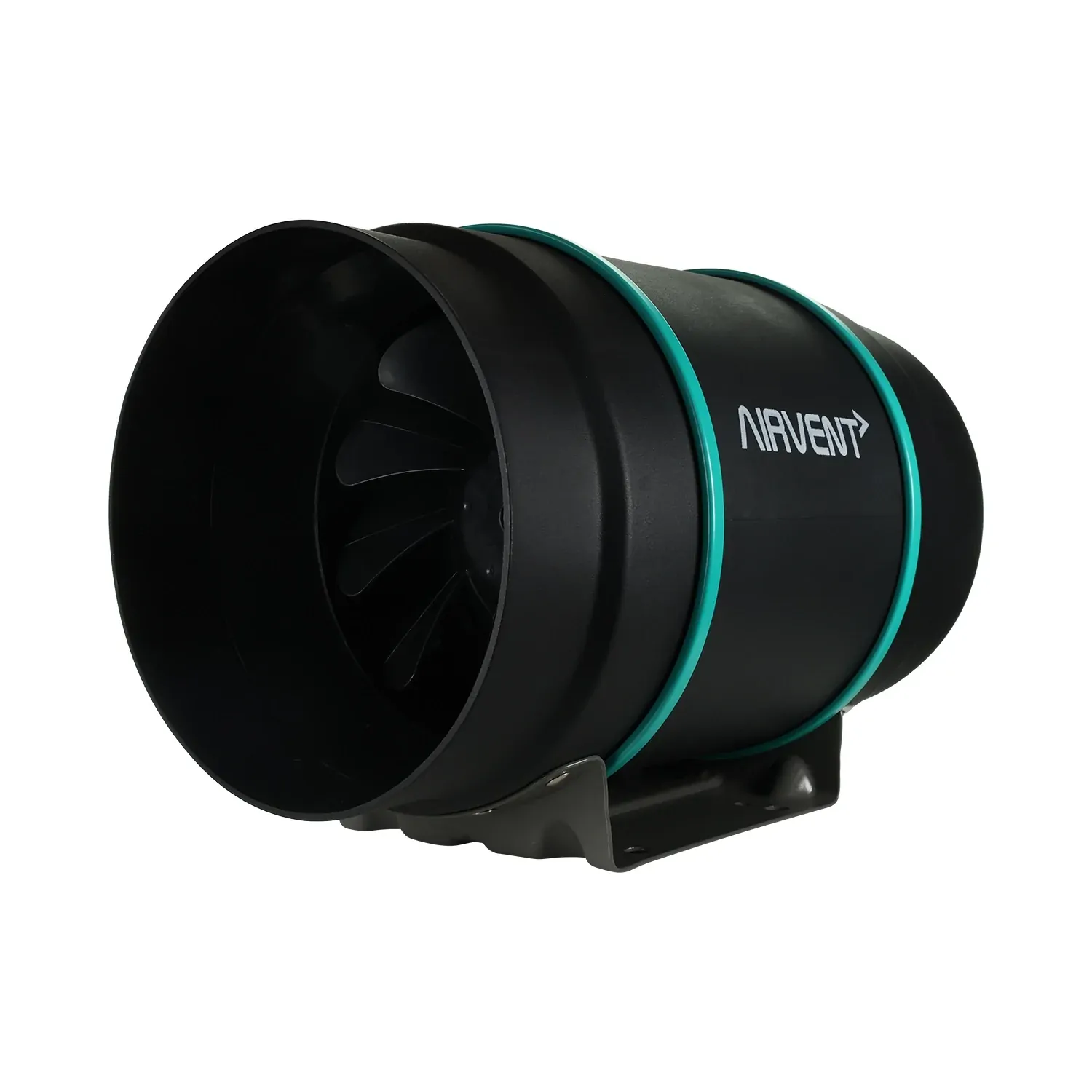

The Airvent ECIF200-PRO is a 200mm inline mixed flow fan with an EC motor rated 70W, running on 240V at 0.3A. It is rated at 189 litres per second, or 680 cubic metres per hour, against 130 Pa of static pressure. The ECIF200-PRO turns at 1984 RPM and uses a mixed flow impeller, combining axial and centrifugal characteristics. It arrives with a 1.2 metre lead and a three-pin plug fitted.
Selecting an inline fan begins with the ducting rather than the motor rating. The ECIF200-PRO connects to 200mm duct and is rated at 189 L/s against 130 Pa, operating at a comparatively unhurried 1984 RPM. A larger impeller turning slowly delivers that volume through a wider duct where a smaller unit would be working considerably harder. Sound pressure measures 44 dBA at the inlet and 46 dBA at the outlet, both at 3 metres.
Speed control operates through an external potentiometer rather than a control incorporated in the fan, so the controller becomes a separate item on the order. The body measures 251 by 234 by 330mm and weighs 3.1kg, requiring a genuine allowance in the ceiling cavity. Sigrist Design states 2019 and 2022 NCC/BCA Section J compliance for this fan.
The ECIF200-PRO is an in-duct fan and does not mount at the ceiling or wall face, so ducting, a grille, and a terminal are all required. Speed adjustment needs an external potentiometer, which is not supplied with the fan. At 251 by 234 by 330mm the body needs more ceiling clearance than a 150mm unit, so check the cavity before ordering.
(ECIF200-PRO)
It is used for high airflow ventilation in large spaces where strong air movement or extraction is needed.
In ceiling cavities or duct systems for large bathrooms, kitchens or commercial areas.
Yes. The higher airflow helps remove steam, heat and odours quickly.
It runs around 43dBA at distance, which is still controlled for its performance level.
Yes. It has adjustable speed control for balancing and tuning airflow on site.
Yes. Sparky Direct stocks the Airvent ECIF200-PRO with fast dispatch and delivery across Australia.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Return to Sparky Direct
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Airvent |
| SKU | ECIF200-PRO |
| Model # | IM-AI-200-ECE-070 |
| Barcode # | 0744109912559 |
| Package Weight | 4.000kg |
| TYPE | VALUE |
|---|---|
| Type | Inline Fan |
| Brand | Airvent |
| Rated Current (A) | 0.3 |
| Height (mm) | 234 |
| Width (mm) | 251 |
| Length (mm) | 330 |
| Mounting | Inline |
| Voltage (V) | 240 |
| Wattage (W) | 70 |
| Diameter (mm) | 200 |
| Air Flow (m3/h) | 918 |
| Fan Speed (RPM) | 1984 |
