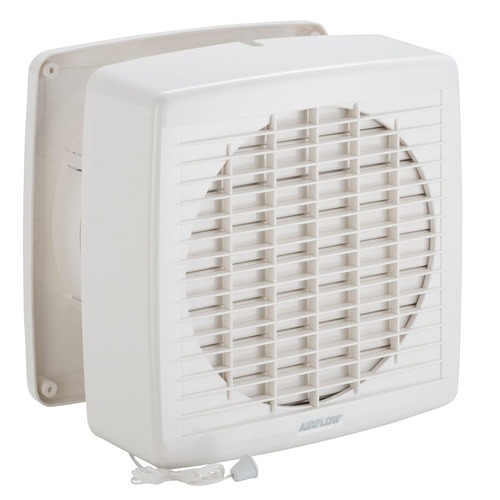

        Clipsal Airflow 7108AN | Wall Exhaust Fan, Axial, 200mm | Pull-Cord Switch
        $270.60 $246.00 ex. GST
        Description

        Clipsal Airflow 7108AN | Wall Exhaust Fan, Axial, 200mm | Pull-Cord Switch

        • MaxAir exhaust fans are new products that offer high-performance air extraction with whisper-quiet operation.
        • They are attractively styled with silent operating shutters in a white gloss finish, which are also very easy to clean.
        • Most of the MaxAir range can be easily retrofitted into existing cutout holes.
        • All installations are easily carried out by one person, a great time-saving feature.
        • MaxAir fans are supplied with compact ductwork that easily fits walls between 110 and 310mm.
        • No cable ties or tape is needed, as the duct attaches easily to the fan’s unique ‘duct grippers’.
        • All fans are configured to allow flex and plug to be fitted, or they can be hard-wired

        Features

        • BCA axial fan
        • High-performance air movement
        • Low noise level
        • One person installation
        • 271 x 271 mm overall intake
        • 110 -310 mm window depth
        • 220 mm diameter duct
        • 230 mm diameter hole
        • Pull-cord shutter operation
        • 1 speed
        • Ball bearing motor

        (7108AN)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 3 Year
        Commercial Use: 3 Year
        Warranty Method: Clipsal in home warranty

        Features
        Range Airflow
        Product brand Clipsal
        Product or component type Exhaust fan
        Product destination For wall
        Main colour tint White
        Colour tint White
        Provided equipment Fan 271 mm 271 mm 200 mm
        [Ue] rated operational voltage 230 V AC 50 Hz
        Material ABS (acrylonitrile butadiene-styrene)
        Air flow 600 m3/h
        Diameter 188 mm impeller:
        Power consumption in W 38 W
        [In] rated current 0.18 A full load
        Cut-out dimensions 230 mm diameter
        Depth 110 mm
        Motor type Ball bearing
        Number of blades 9
        Noise level 50 dB
        Fan type Axial
        IP degree of protection IPx4
        Unit Type of Package 1 PCE
        Number of Units in Package 1 1
        Package 1 Height 22 cm
        Package 1 Width 27.5 cm
        Package 1 Length 27.5 cm
        Package 1 Weight 2.912 kg
        Warranty 3 Years
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU 7108AN
        Barcode # 3606486373958
        Shipping Weight 2.8800kg
        Shipping Width 0.275m
        Shipping Height 0.220m
        Shipping Length 0.280m
        Shipping Cubic 0.016940000m3
        TYPE VALUE
        Type Exhaust Fan
        Brand Clipsal by Schneider Electric
