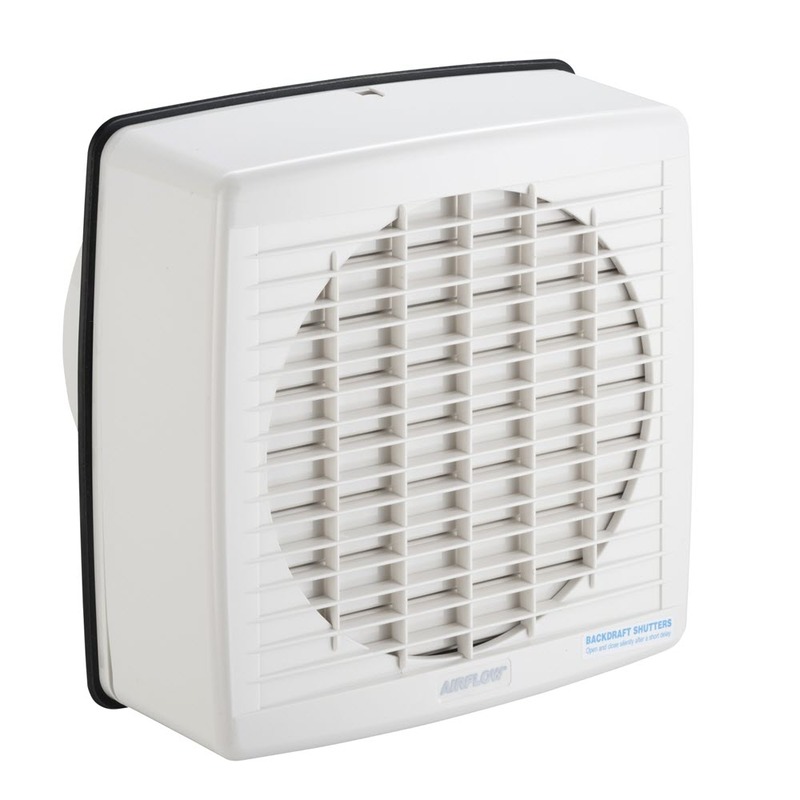

The Clipsal Airflow 7105AN is a 200mm axial window exhaust fan rated 230V AC with an automatic shutter. The shutter opens when the fan starts and closes when it stops, blocking draughts and insects. The 7105AN moves 600 m3/h of air at 50 dB and draws 38W, with an IPX4 splash rating. The fan mounts in a window and ships with a cut-out template for the 230mm hole.
Bathrooms, laundries and small kitchens accumulate moisture and odours when there is no ducted extraction path. A through-window fan discharges that air directly outside without running ductwork through the ceiling. The 600 m3/h airflow extracts steam and cooking odours rapidly, and the automatic shutter seals the opening against draughts whenever the fan is off. Its IPX4 rating tolerates splashing in a damp room without faulting.
For a sparky, a window fan is a rapid installation that avoids the ceiling access and ductwork a ceiling exhaust requires. The 7105AN installs into an opening cut to 230mm, and the supplied template marks the penetration cleanly. The ball-bearing motor restricts operating noise to 50 dB, discreet enough for a bathroom or bedroom-adjacent room. The compact 271mm face sits flush against the glazing and conceals the cut-out without a protruding surround.
The 7105AN is not rated for water jets or immersion, so it should not be positioned where it will be hosed or located within a shower splash zone. It is a window and glazed-panel fan, not a ducted ceiling or in-line unit, and it is unsuitable for exposed outdoor positions subject to driving rain.
Verified Sparky Direct customer reviews: Clipsal Airflow 7105AN | Window Exhaust Fan, Axial, 200mm, Auto Switch (7105AN)
"Looks good, clean and neat, not too big. Works well, minimal noise." — Jolene
(7105AN)
Installation of the Clipsal Airflow 7105AN must be carried out by a licensed electrician. The fan hardwires to a 230V AC supply and mounts into a 230mm cut-out in the window or glazed panel. A marking template is supplied to set out the hole before cutting.
The 7105AN moves 600 cubic metres of air per hour and runs at a measured 50 dB. The ball-bearing motor and 9-blade axial impeller keep the noise suitable for bathrooms, laundries and rooms next to sleeping areas while still clearing steam and odours quickly.
The 7105AN needs a 230mm diameter cut-out in the window pane or panel. The overall face measures 271 x 271mm, which covers the cut-out and sits flush against the glass. The supplied template lets you mark the 230mm hole before cutting.
The automatic shutter, or louvre, opens when the fan starts and closes when it stops. This blocks draughts, insects and backflow through the opening while the fan is off, so the window does not stay permanently open to outside air.
This window exhaust fan carries an IPX4 rating, which covers splashing water but not direct jets or immersion. It should not be fitted inside a shower enclosure or in an outdoor position exposed to driving rain. It is designed for window and glazed-panel mounting indoors.
The Clipsal Airflow 7105AN carries a three-year Clipsal warranty for both domestic and commercial use, starting from the invoice date. Some Clipsal warranties are handled as in-home claims, so the fan may not need to be removed for assessment. Proof of purchase is required.
The Clipsal by Schneider Electric 7105AN is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 3 Year
Commercial Use: 3 Year
Warranty Method: Clipsal in home warranty
| Specification | Details |
|---|---|
| Airflow | 600 m³/h |
| Sound Level at 3m | 50 dB(A) |
| Shutter Operation | Automatic |
| Rated Voltage | 230 - 240V AC, 50Hz |
| Power Rating | 38W |
| Hole Size | 230mm Ø |
| Fan Size | 188mm Ø |
| Overall Intake Size (A) | 271 x 271mm |
| Wall Depth Required (B) | 4 - 32mm |
| External Protrusion (C) | 95mm |
| Room Protrusion (D) | 105mm |
| Duct Size (E) | 210mm Ø |
| Protection Rating | IPX4 |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Clipsal by Schneider Electric |
| SKU | 7105AN |
| Model # | 7105AN |
| Barcode # | 3606486373972 |
| Package Weight | 3.290kg |
| TYPE | VALUE |
|---|---|
| Type | Exhaust Fan |
| Brand | Clipsal by Schneider Electric |
| Range | Airflow |
| Colour | White |
| Rated Current (A) | 0.18 |
| Height (mm) | 271 |
| Width (mm) | 271 |
| Depth (mm) | 200 |
| Mounting | Window |
| Voltage (V) | 230 |
| Wattage (W) | 38 |
| IP Rating | IPx4 |
