Learn more by watching our Tesla ADM65SC | 1 Phase 60Amp Kilowatt Hour Meter DIN Rail | Digital video.
This Kilowatt Hour Meter is used for private metering as it is not NMI-approved (billing applications)

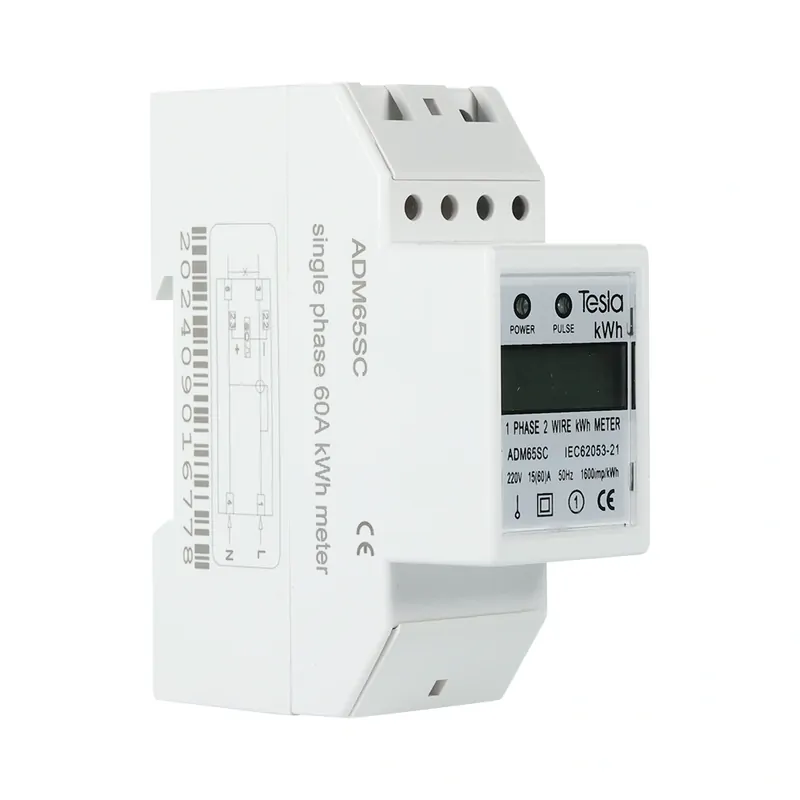

The Tesla ADM65SC is a single-phase kilowatt-hour meter rated 60A at 230V AC, designed for accurate energy monitoring on DIN rail installations. It features a backlit LCD display for clear readings and complies with IEC 62053-21 Class 1.0 accuracy standards, making it suitable for private metering and submetering applications across residential, commercial, and solar installations.
Electricians and energy-monitoring contractors value the ADM65SC for its compact form factor and straightforward terminal layout with large accessible terminals that accommodate cable sizes up to 25mm². The DIN rail mounting eliminates the need for separate enclosure preparation, and the standard 50/60Hz compatibility makes it suitable for retrofit work in existing switchboards and meter cabinets without respecification. Pulse output at 500 impulses per kWh enables integration with energy management systems and logging equipment, while 20-year data retention ensures readings persist even during supply interruptions, supporting long-term consumption audits without repeated manual recording.
The ADM65SC is widely deployed for standalone solar system monitoring, where owners track generator output directly from the meter's backlit display without secondary display units. The compact two-module DIN profile (70mm long, 34mm wide) fits standard 35mm DIN rails, and the IP53 protection rating permits installation in enclosed switchboards where dust and moisture are controlled. The meter delivers Class 1.0 accuracy across the full rated current range, making readings suitable for billing validation and system commissioning sign-off.
The ADM65SC is not suitable for outdoor wall mounting, weather-exposed locations, or installations subject to direct rain or high-humidity splash zones. It is intended for internal switchboard and meter enclosure use only. The meter is not NMI-approved for billing applications where statutory accuracy certification is required; it is designed for private metering, submetering, and energy monitoring only.
Verified Sparky Direct customer reviews: Tesla ADM65SC (ADM65SC)
"Large terminals and easy to understand for clients." — Pink Spark
"Good price easy to fit and reliable." — Kooralbyn Electrical
"Easy to use and read. These are great to see exactly what your solar generator is supplying." — Old Guy
(ADM65SC)
The ADM65SC is rated 60A at 230V AC single-phase. It measures active energy consumption for systems up to 60A and operates across a voltage range of 84-156V AC, providing tolerance for voltage fluctuations in older or remote installations.
Installation of the ADM65SC must be carried out by a licensed electrician. The meter connects to live mains voltage and requires correct polarity and earthing. Termination must follow the wiring diagram supplied with the meter, and all work must comply with AS/NZS 3000.
Yes, the ADM65SC has a pulse output rated at 500 impulses per kWh, which can be connected to energy management systems, data loggers, and consumption monitoring equipment via an isolated 5VDC connector (S+ and S- terminals).
The ADM65SC is Class 1.0 rated per the international standard IEC 62053-21, meaning it measures active energy with an accuracy of ±1% across the full operating range. This accuracy grade is suitable for consumption verification and system commissioning validation.
The ADM65SC retains accumulated energy readings for up to 20 years without mains power. Data is stored in non-volatile memory, so readings persist even after extended supply interruptions.
No, the ADM65SC has an IP53 protection rating, which blocks dust and moisture but is not weatherproof. It is designed for installation inside switchboards, meter enclosures, and protected cabinets only. Do not mount it on external walls or in damp exposed locations.
The Tesla ADM65SC is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
| Specification | Details |
|---|---|
| Nominal Voltage | 120/230V AC |
| Operational Voltage | 84-156V AC |
| Operating Frequency Range | 50/60Hz ± 10% |
| AC Voltage Withstand | 4kV for 1 minute |
| Basic Current | 5A/10A/10A/20A |
| Maximum Current | 60A/60A/63A/100A |
| Operational Current Range | 0.04A-60A / 0.08A-100A |
| Overcurrent Withstand | 1800A / 3000A for 0.01s |
| Internal Power Consumption | ≤2W/10A |
| Test Output Flash Rate | 500 impulses per kWh |
| Pulse Output Rate | 500 pulses per kWh |
| Backlit LCD Display | 7+1 digits |
| Data Retention | 20 years |
| Maximum Cable Capacity | 25mm² |
| Operating Temperature | -10°C ~ 50°C |
| IP Rating | IP53 |
| Insulation Protection Class | Class II |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Tesla |
| SKU | ADM65SC |
| Barcode # | 9337376005188 |
| Package Weight | 0.144kg |
| TYPE | VALUE |
|---|---|
| Type | Kilowatt Hour Meter |
| Brand | Tesla |
| Rated Current (A) | 60 |
| Height (mm) | 90 |
| Width (mm) | 34 |
| Depth (mm) | 70 |
| Mounting | DIN Rail |
| Voltage (V) | 230 |
| IP Rating | IP53 |
| Single or 3 Phase | Single Phase |
| Analog or Digital | Digital |
