National Light Sources | Switch Mechanism 35A 250V AC Marked OVEN | Single Pole

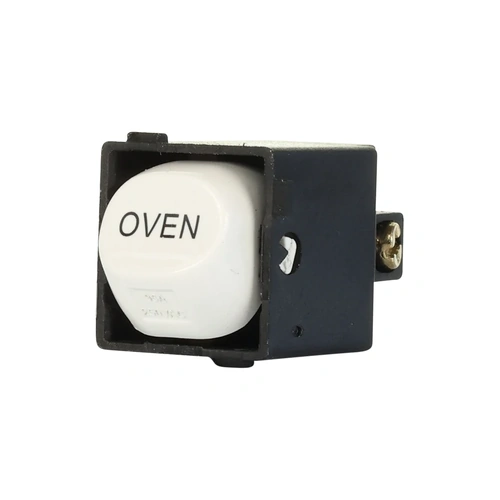

The National Light Sources NLS35OVEN is a 35A single pole switch mechanism rated 250V AC, marked OVEN on the rocker for circuit identification. The NLS35OVEN is supplied as a mechanism only, without a mounting plate or cover plate. National Light Sources also catalogues this mechanism under model number 30655NLS.
Oven circuits sit at the top of the domestic load list, and a general purpose 10A mech will not carry them. A kitchen switch bank often runs three or four appliance switches side by side, and an unmarked rocker leaves the next sparky guessing which one drops the oven. The NLS35OVEN answers both problems: a 35A rated mechanism that carries the appliance load, with fixed OVEN marking so the circuit reads correctly at the plate for the life of the install.
Buying the mech on its own keeps the cost down on a swap-out, because the existing plate and cover stay on the wall. Sparkies working kitchen renovations and rental turnovers carry 35A mechanisms as van stock alongside the 10A units, since a failed oven switch is a same-day callout that pays for itself. The single pole build keeps the wiring straightforward: one active in, one active out, with no neutral loop to dress into the box.
Features
- 35A current rating — carries oven and cooking appliance circuits that sit well above the 10A limit of a general purpose light switch mechanism.
- 250V AC rated voltage — matches Australian single phase mains supply for domestic and commercial appliance switching.
- Single pole switching — the NLS35OVEN breaks the active conductor only, giving a simple two terminal connection at the mechanism.
- Fixed OVEN marking — the rocker carries the printed legend, so the circuit stays identified without a separate label or engraved plate.
- Mechanism only supply — the NLS35OVEN ships as a bare mech for fitting into an existing plate, which suits replacement work where the wall plate is staying.
- Active-only isolation — a single pole switch does not break the neutral, so the circuit is not fully isolated at this mechanism for servicing work.
- Manufacturer model 30655NLS — the alternate part number National Light Sources uses for this mechanism, useful when cross-checking a wholesaler order.
- 15 gram unit weight — packaged at 0.015kg, so a handful of spares adds nothing meaningful to the van kit.
- No published IP rating — National Light Sources does not list an ingress rating for the NLS35OVEN, so it is specified for dry interior locations only.
- One year warranty — covered for one year domestic and one year commercial use from the invoice date, returned to Sparky Direct for assessment.
- Licensed installation condition — the warranty is void unless the mechanism is installed by a licensed electrician, in line with the terms on the product page.
Where to use
- Domestic kitchen oven circuits — the NLS35OVEN switches a fixed wired oven from a wall plate within reach of the bench, on a dedicated 35A rated circuit.
- Kitchen renovations — drops into an existing plate when the cabinetry changes but the switch position and cabling stay where they are.
- New build fit-off — installed at second fix once the plates go on, with the OVEN legend already printed so no site labelling is needed.
- Rental property maintenance — a worn or arced oven mech is replaced without pulling the plate off the wall or repainting around it.
- Commercial kitchen fit-outs — the 35A rating suits appliance switching in cafes, clubs and staff kitchens where the oven runs on a dedicated circuit.
- Labelled appliance switch banks — the NLS35OVEN sits alongside other marked mechanisms in a multi-gang plate so each appliance circuit reads at a glance.
- Warranty and fault replacement — a straight mechanism swap when the switch fails but the plate, cover and wiring all test sound.
The NLS35OVEN is not a double pole isolator and does not break the neutral conductor, so it should not be relied on as the isolation point for appliance servicing. National Light Sources publishes no IP rating for this mechanism, so it is not specified for outdoor, weather exposed or damp locations. It is also not a complete switch assembly, since the plate and cover are not included.
