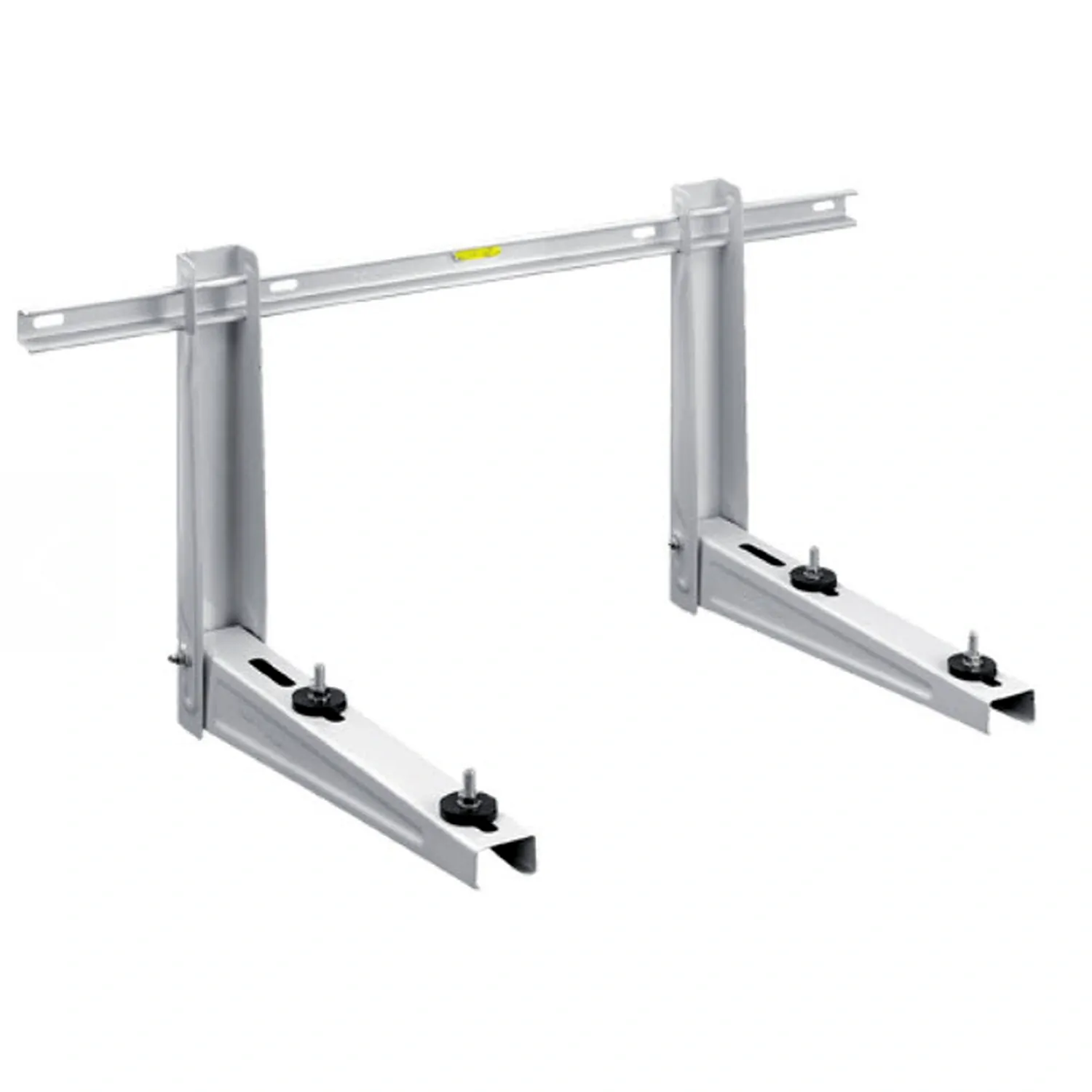

The Freddox AWBS is a 120kg-rated adjustable wall bracket designed to support split system air conditioning outdoor condenser units off the ground. The AWBS bracket measures 350mm in height, 450mm in depth, and 700mm in width, delivering static load capacity of 120kg with a recommended unit weight capacity up to 60kg for optimal stability during long-term operation. The bracket is constructed from hot-dipped, zinc-coated, cold-rolled steel with an epoxy resin powder-coat finish, delivering corrosion resistance in Australian climates. Pre-assembled and adjustable, the AWBS includes rust-treated mounting accessories and rubber silent blocks to isolate vibration from the building structure.
Outdoor condenser units for residential 7kW to 8kW split systems typically weigh between 45kg and 60kg, positioning them well within the AWBS load envelope. Lifting the unit off the ground protects the condenser coil from debris, flood water, lawn-mower damage, and ground-level obstructions that reduce airflow. Wall mounting also improves technician access during maintenance and reclaims valuable outdoor floor space on residential and rental properties.
Licensed air conditioning installers favour the Freddox range for the combination of straight-forward assembly and precise level installation. The adjustable bracket accommodates minor variations in wall condition and outdoor unit mounting feet without custom fabrication. Rubber isolators under the unit absorb compressor vibration, preventing high-frequency noise from travelling through the building structure. Trade installers who trial the bracket often convert to stocking multiples, citing the low failure rate and repeat-customer satisfaction from noise-free operation.
The Freddox AWBS is not suitable for roof mounting, post mounting, or ground-mounted fixed installations. It is designed exclusively for wall support and should only be installed where fixings can engage solid wall framing or reinforced masonry. Do not install the AWBS on hollow-core walls, cavity brick, or lightweight partition walls without engineering verification. The bracket is not rated for earthquake-prone zones without additional structural assessment. Do not exceed 60kg recommended unit weight without consulting a licensed air conditioning engineer or the bracket manufacturer.
Verified Sparky Direct customer reviews: Freddox AWBS Adjustable Wall Bracket 120KG Powder Coated (AWBS)
"This bracket was perfect for getting my condenser off the ground, really easy to install." — Mark B
"Easy install and adjustable which is great for small installs. Good pricing and fast postage" — Jack
"Works well, easy to install. Sturdy design." — Andrew C
(AWBS)
The AWBS has a static load capacity of 120kg and a recommended unit weight of up to 60kg. Most residential split system outdoor condenser units weigh between 45kg and 60kg, placing them comfortably within the recommended range.
Yes. The AWBS arrives pre-assembled and ready to mount. Most installations are completed in under 30 minutes using basic hand tools. No specialist equipment or on-site assembly is required.
The AWBS measures 350mm (height) x 450mm (depth) x 700mm (width). Allow approximately 1200mm of clear wall space (height and width combined) for the complete installation, including space above and to the sides for cable access and technician clearance.
Yes. The bracket includes rubber silent blocks pre-installed under the mounting points. These isolators decouple compressor vibration from the building structure, preventing high-frequency noise transmission into walls and adjacent rooms.
Yes. The AWBS is constructed from hot-dipped, zinc-coated steel with an epoxy resin powder-coat finish, providing galvanic and surface protection against rust in coastal and humid Australian climates.
No. The AWBS is designed for solid external wall mounting only. It is not suitable for roof, post, or ground installations. Wall fixings must engage structural framing or reinforced masonry to support the rated load.
The Freddox AWBS is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.
