Rectorseal MIGHTYBRACKET | Installation Support Tool | 40 kg Capacity

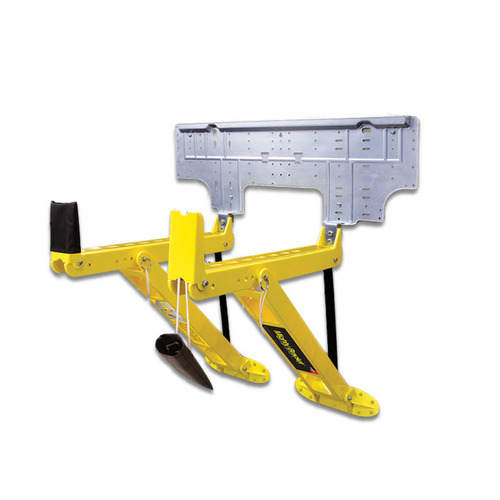

The Rectorseal MIGHTYBRACKET is a portable installation support tool that holds indoor split system air conditioning units securely in place during mounting, refrigerant, and electrical connections. Designed to enable single-person installation on most mini-split brands, the bracket supports units up to 40 kilograms and folds flat for storage.
Installing outdoor-mounted indoor units typically requires two people: one holding the unit at the correct height while the other makes connections. The MIGHTYBRACKET eliminates this coordination by gripping the unit on the mounting hooks, freeing both hands to work. The tool clips to standard mini-split mounting plate tabs and does not damage walls when foot supports rest flat against the surface. For units without factory tabs, the mounting hooks thread directly into wall studs.
Single-person capability transforms installation efficiency on jobs where an extra set of hands is impractical or unavailable. The clip-on design works across most major brands without modification. Protective sleeve socks on the lift gates prevent scratching cabinet surfaces during setup. Once refrigerant lines, condensate drain, and electrical connections are complete, the bracket removes cleanly and the unit slots onto the mounting plate permanently. The folding design and included tote bag keep the tool portable between sites.
Features
- Single-person installation — eliminates the need for a second person to hold the unit during connections
- Simple clip-on mounting — hooks grip standard mini-split mounting plate tabs or thread into wall studs
- No wall damage — foot supports rest flat; optional towel or cardboard prevents scratching
- Broad brand compatibility — works on most brands of mini-split indoor units up to 40 kg
- Protective design — sleeve socks guard unit cabinet from gate contact during installation
- Portable and compact — folds flat for easy storage and transport in the included tote bag
- Adjustable level — pins position the support arm horizontally regardless of wall angle
- Secure hold — lift gates prevent the unit from sliding off the arms during connections
Where to use
When not suitable: Units heavier than 40 kilograms or with non-standard mounting plate geometry may require alternative support methods. Always consult the manufacturer's installation instructions and verify mounting plate compatibility before use.
- Single-operator installations — ideal when working alone or when a second person is not available on site
- Retrofit and replacement — simplifies changeover of existing indoor units without additional labour
- Multi-unit commercial jobs — speeds up installation cycles by removing the hold-and-connect bottleneck
- Emergency repairs — enables quick unit relocation or emergency access when standard two-person teams are unavailable
- Difficult access locations — handles installations in tight spaces or awkward wall positions where balancing becomes unsafe
- High-capacity units — supports units up to 40 kg, covering the majority of residential and light commercial mini-splits
USER INSTRUCTIONS
1. Attach Mounting Hooks of Mighty Bracket to the mini-split mounting plate tabs. (If no tabs are present on the mounting plate, Mighty Bracket hooks can be attached by screws threaded into the wall stud.)
2. Place Foot Supports flat against the wall. (If necessary to avoid potential wall scratching, place clean towel or cardboard between support foot and wall surface)
3. Position Level Adjustment Pins to make the Support Arm of the brackets horizontal.
4. Position lift Gates at the end of Support Arms to make sure the unit cannot slide off.
5. Place protective Sleeve Socks over Gates to avoid scratching the unit.
6. Set the unit securely onto the top of the Support Arms.
7. Connect refrigerant lines
8. Connect condensate drain piping and electrical wiring.
9. Carefully lift and place the indoor unit onto the top tabs of the mounting plate.
10. While ensuring the unit does not fall, carefully remove Mighty Bracket and installation is complete.
