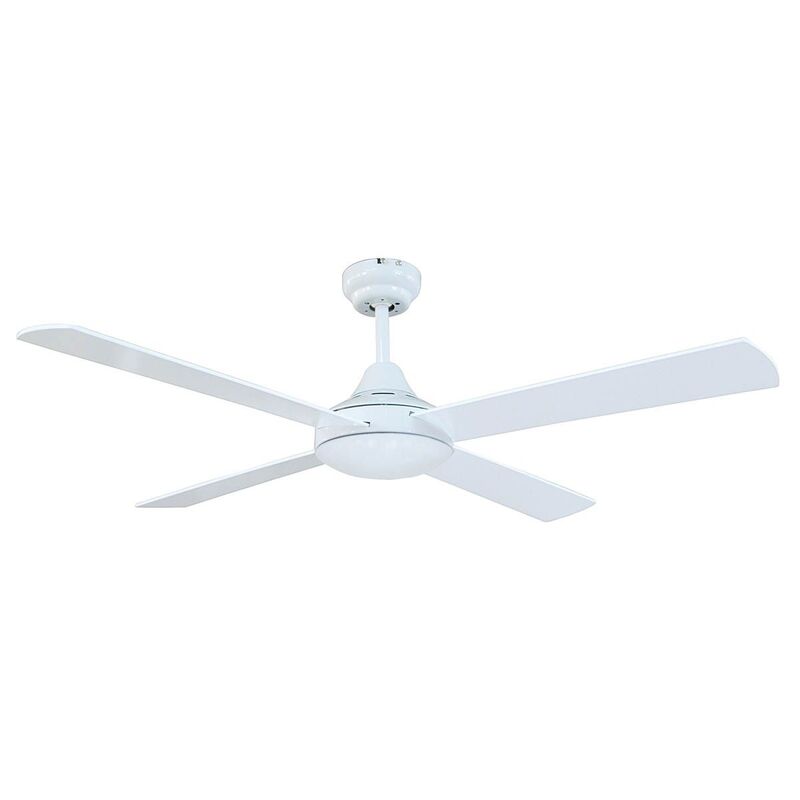

Brilliant | Tempo 48" AC Ceiling Fan 3-Speed | White
The Brilliant 22270-05 is a 48-inch AC ceiling fan rated 240V/50Hz with a powerful 65W motor, designed for indoor residential use with reversible All-Seasons technology. The 22270-05 features a steel body and canopy construction with four painted plywood blades, delivering 7,699 m³/hr airflow at maximum speed and a wall-mounted 3-speed control included.
Standard ceiling fans in Australian homes often underdeliver on airflow or prove difficult to install during renovations. The 22270-05 addresses both limitations. The reversible blade design works year-round: pushing warm air down in winter, drawing hot air up in summer. The fan arrives 85% pre-assembled with a Quick Connect Plug System that cuts installation time compared to traditional blade-and-motor assembly. Bedrooms, lounge rooms, and family spaces benefit from the straightforward setup and consistent performance without frequent motor noise or vibration issues.
Sparky Direct customers value Brilliant ceiling fans for build quality and fast order-to-installation timelines. The 22270-05's steel construction and reversible design are popular for renovation work and new builds where reliability matters and downtime on site is costly. The included 3-speed wall control suits both retrofit jobs (no wiring complexity) and full-house builds where standard electrical switch integration is the norm. Strong airflow at full speed covers medium to large rooms (up to 48 square metres) without the need for ducting or additional ventilation.
Features
- Steel body and canopy construction — powder-coated finish resists corrosion and maintains appearance longer on display homes and rental properties.
- Four painted plywood blades — lightweight but rigid, reducing motor strain and extending bearing life compared to solid-wood blades.
- 65W AC motor — rated 240V/50Hz, delivering 7,699 m³/hr at full speed, suitable for rooms up to 48 square metres.
- Reversible All-Seasons technology — blade rotation switches direction for winter heat distribution (push down) or summer cooling (pull up), eliminating the need for separate winter/summer units.
- 11-degree blade pitch — optimised angle for balanced airflow and whisper-quiet operation at lower speeds, common in AC residential fans.
- Three-speed wall control with on/off switch included — no dimmer or remote required; settings are Low (19W, 3,349 m³/hr), Medium (37W, 5,334 m³/hr), and High (65W, 7,699 m³/hr).
- 85% pre-assembled out of the box — most assembly is complete; only blades, canopy trim, and wall bracket require final attachment, reducing on-site labour to under 30 minutes.
- Quick Connect Plug System — proprietary connector reduces wiring time and lowers risk of loose connections compared to terminal block assembly.
- Maximum ceiling rake 32 degrees — suitable for vaulted or angled ceilings up to a 32-degree angle; flat ceilings require no special fitment.
- Indoor use only — not weatherproof or rated for external, damp, or wet locations; the 22270-05 is designed for interior bedrooms, lounges, and living spaces only.
Where to use
- Bedrooms and sleeping areas — the 22270-05 moves air quietly at low speed, suitable for cooling sleeping spaces without disturbing rest.
- Lounge and family rooms — full-speed airflow covers open-plan areas, with reversible technology supporting year-round comfort.
- Home office and study spaces — the included 3-speed control allows ambient circulation adjustment without desk-mounted fans or window units.
- Renovation and new-build installation — 85% pre-assembly and Quick Connect fitment make the 22270-05 a contractor favourite for residential electrical work; no special tools or trade skills beyond standard ceiling-box mounting.
- Holiday rental and investment properties — reversible design reduces guest complaints about summer heat or winter drafts; steel construction withstands turnover wear.
- Rental homes and short-term leases — easy installation (under 30 minutes) and removal suit flexible housing scenarios without permanent retrofit costs.
The Brilliant 22270-05 is not suitable for external walls, covered patios, bathrooms, laundries, or damp exposed locations. Do not install the fan outdoors or in areas where moisture, salt air, or direct weather exposure occurs. The 22270-05 is an interior fan only and will not perform reliably in wet or high-humidity environments.
