Learn more by watching our CLIPSAL 30RJ45SMA6CWE | RJ45 Socket Cat 6 Mechanism 30 Series White video.

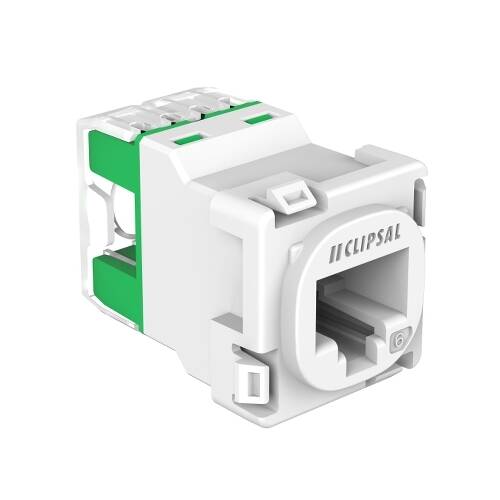

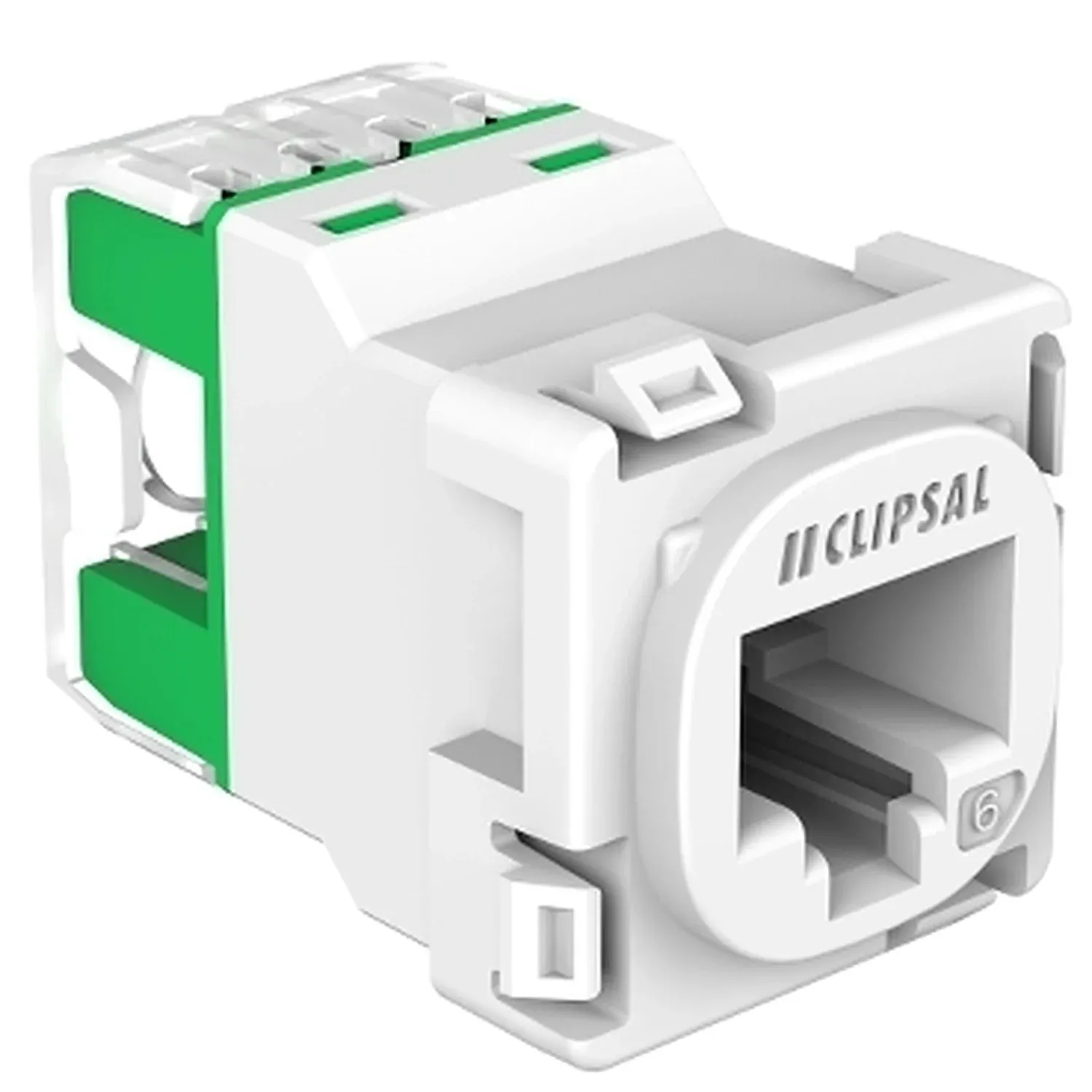

The Clipsal 30RJ45SMA6CWE Cat 6 RJ45 mechanism delivers dependable data connectivity for domestic and commercial installations. The 30RJ45SMA6CWE uses punch-down termination (IDC technology) to connect Category 6 twisted pair cable into standard wall plate slots. Designed to work with Clipsal 2000 and Classic 2000 Series wall plates, this socket accommodates both horizontal and vertical mounting. It suits flexible room layouts with the ability to mount horizontally or vertically. The mechanism is backward compatible with Category 5e cable, making it versatile for mixed network upgrades.
The clear IDC caps allow you to verify termination and retain cables during installation. Colour-coded termination labels simplify wire identification and reduce errors during punch-down. The flexible locking tabs make it straightforward to remove the mechanism from wall plates if reconfiguration is needed. UL 94V-0 fire rating and nickel-plated contacts ensure durability in permanent building installations. The unshielded UTP construction suits residential and light commercial environments where EMI is not a primary concern.
Electricians favour the 30RJ45SMA6CWE for its straightforward termination process and cost efficiency. The mechanism is fully compliant with AS/NZS 3080:2003, ISO/IEC 11801 Edition 2, and ANSI/TIA/EIA-568-B standards, meeting Australian and international data outlet specifications. Installation time is minimal compared with older socket designs, a key advantage when completing large domestic or workplace ethernet projects. The temperature range of –40 to 70°C means the mechanism performs well in most Australian climate zones.
The 30RJ45SMA6CWE is not suitable for outdoor, wet, or damp exposed installations. Do not install this mechanism in bathrooms, laundries, roof cavities subject to water ingress, or external walls. For outdoor or weatherproof data applications, specify a shielded or IP-rated alternative.
Verified Sparky Direct customer reviews: RJ45 Socket Cat 6 Mechanism 30 Series (30RJ45SMA6CWE)
"Rock solid cat 6 jacks, easy termination with 100% success rates" — Sx23
"These RJ45 Sockets work great for small or large installations and are well priced." — Sparky Sam
"solid construction with wire colour code termination label" — John
(30RJ45SMA6CWE)
The 30RJ45SMA6CWE fits Clipsal 2000 Series and Classic 2000 Series interchangeable wall plates. It is not compatible with Iconic 40 series wall plates. Check your existing wall plate range before ordering, as the Clipsal 30 series mechanism requires 2000 or Classic 2000 wall plates to function.
The 30RJ45SMA6CWE is a punch-down (IDC) mechanism, not a plug-in socket. You must strip the cable jacket, separate the twisted pairs, and insert each wire into the colour-coded IDC terminals using a punch-down tool. Once punched, the wire is held securely and the clear cap covers the termination point.
Yes. The 30RJ45SMA6CWE is backward compatible with Category 5e twisted pair cable. Many installers use these mechanisms to upgrade Cat 5e cabling to support Cat 6 performance on existing runs. The termination procedure is identical for both cable types.
The 30RJ45SMA6CWE operates safely between –40 and 70°C. This range covers typical Australian indoor and outdoor installations, including unheated sheds and roof spaces in hot climates. The UL 94V-0 fire rating applies across the full temperature range.
You will need a punch-down tool (also called an IDC tool) to insert the cable wires into the terminal slots. A wire stripper is helpful to prepare the twisted pairs. Once the wires are punched into the mechanism, the clear IDC cap snaps on to cover the termination. No soldering or crimping is required; the punch-down tool does all the work.
Sparky Direct stocks this mechanism in Caboolture, Queensland, with delivery available to select postcodes; check the product page for your area. Click-and-collect from Caboolture is available if delivery is not covered in your postcode.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Clipsal in home warranty
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Clipsal by Schneider Electric |
| SKU | 30RJ45SMA6CWE |
| Model # | 30RJ45SMA6C-WE |
| Barcode # | 3606489512446 |
| Package Weight | 0.011kg |
| TYPE | VALUE |
|---|---|
| Type | TV Data Phone |
| Brand | Clipsal by Schneider Electric |
| Range | Series 30 |
| Colour | White |
| Height (mm) | 22 |
| Width (mm) | 16 |
| Length (mm) | 36 |
| Contact Configuration | 8 Pin |
| Box increments (This item is sold individually) | 20 |
| Cable Compatibility | UTP |
| Plug Compatibility | RJ45 & RJ11 |
| Network Category | Cat 6 |
